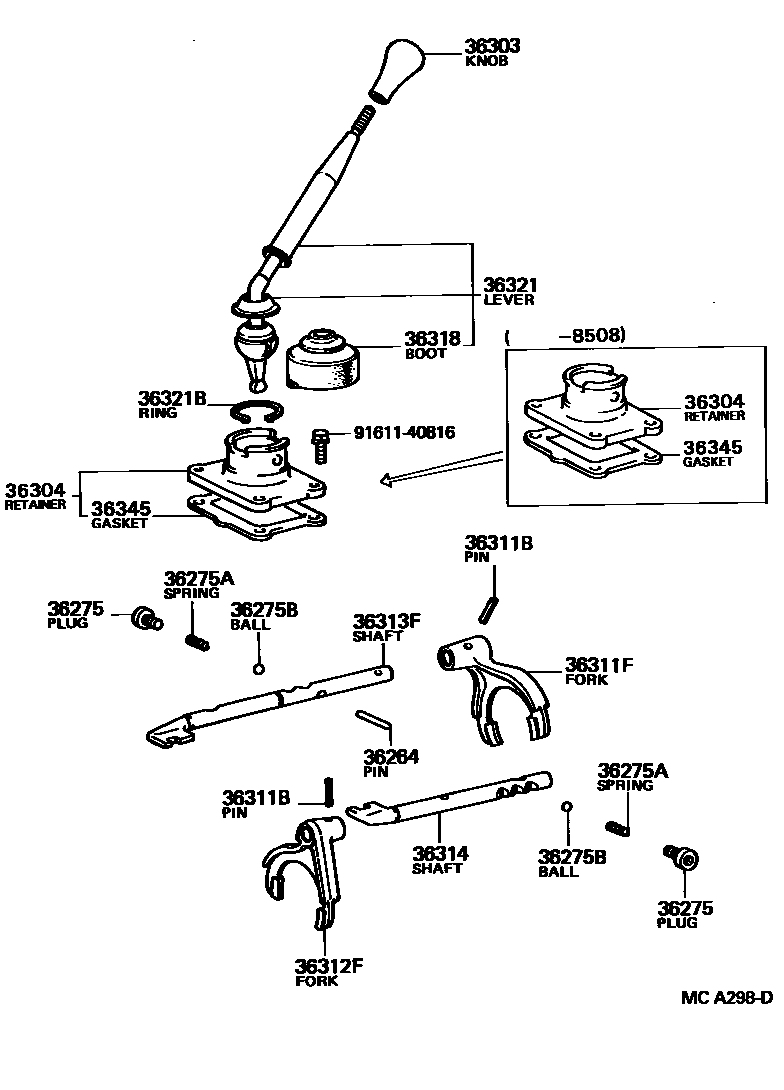

Toyota HILUX — TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06005iLN60,61,65,RN6#,YN6#..MTM198308-199807

L=30.8,OD=6

36275PLUG, SHIFT DETENT BALL SPRING

main90341-10064iLN60,61,65,RN6#,YN6#..MTM198308-199807

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-13001iLN60,61,65,RN6#,YN6#..MTM198308-199807

L=16.5

36275BBALL, SHIFT DETENT

main90360-08009iLN60,61,65,RN6#,YN6#..MTM198308-199807

OD=7.94,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35020iLN6#,YN6#198308-198608

sub36303-35030

main36303-35020-01iLN6#,YN6#..DLX,STD198608-199201

BLACK,BLACK

sub36303-35020

sub36303-35030

main36303-35020-03iLN65..RHD..GEN198608-199201

GRAY,GRAY,TRIM1#

sub36303-35020

sub36303-35030

main36303-35020-04iLN65..RHD..GEN198608-199201

BLUE,BLUE,TRIM8#

sub36303-35020

sub36303-35030

main36303-35020-05iLN65..RHD..GEN198608-199201

BEIGE,BEIGE,TRIM4#

sub36303-35020

sub36303-35030

main36303-35030-01iLN6#,RN67,YN67199201-199807

BLACK,BLACK

sub36303-35030

main36303-35030-03iRN61198712-198903

GRAY,GRAY,TRIM1#

sub36303-35030

main36303-35030-05iRN61198712-198903

BEIGE,BEIGE,TRIM4#

sub36303-35030

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35010iRN61198712-198903

main36304-35021iLN6#,YN6#198308-198508

sub36304-35030

main36304-35030iLN6#,YN6#..5F198508-199008

sub36304-35031

main36304-35031iLN6#,RN67,YN67199008-199510

sub36304-35H18

sub36304-35H19

sub36304-35H20

main36304-35032iLN67,RN67199510-199807

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001iLN60,61,65,RN6#,YN6#..MTM198308-199807

L=22

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35010iRN61198712-198903

main36312-35020iLN60,61,65,RN67,YN6#..MTM198308-199807

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35020iLN60,61,65,RN67,YN6#..MTM198308-199807

main36313-35030iRN61198712-198903

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35020iLN60,61,65,RN67,YN6#..MTM198308-199807

main36314-35030iRN61198712-198903

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-20060iLN6#,RN6#,YN6#..MTM198308-199510

main33555-35200iLN67,RN67199510-199807

36321LEVER, TRANSFER FRONT DRIVE SHIFT

main36360-35030iLN6#,RN67,YN6#..MTM198308-199510

sub36360-35031

sub36304-35032

main36360-35031iLN67,RN67199510-199807

main36360-35040iRN61198712-198903

sub36360-35041

sub36304-35010

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iLN60,61,65,RN6#,YN6#..MTM198308-199807

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36157-35010iLN6#,YN6#198308-198508

main36345-35010iRN61198712-198903

main36345-35020iLN6#,YN6#..5F198508-199008

sub36345-35021

main36345-35021iLN6#,RN67,YN67199008-199807

9161140816

main91611-40816

16 parts on this diagram · 2 diagrams in section
