0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1STEERING 0009 1DOOR,ROOF & FLOOR

83181GSENSOR, SPEEDOMETER

main83181-12020iKUN2#..4FC,5F;KUN15..DLX..HDCR200507-200810

main83181-35040iKUN15..DCR200507-200610

main83181-35070iKUN15..SR200507-200610

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90301-18004iKUN15..SR200507-200610

main90301-18018iKUN15..DCR200507-200610

main96711-24030iKUN2#..4FC,5F;KUN15..DLX..HDCR200507-200810

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iKUN15,2#..4FC,5F200507-200810

main83530-60010iKUN15,2#..5F,5FC200808-201108

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-04010iKUN15,2#..5F200808-201108

TYPE D:REFER 33-01

main84210-0K010iKUN15,2#..(DCB,SCB)..5F200810-201108

TYPE C:REFER 33-01

main84210-12040iKUN15,2#..(THDCB,THSCB,XTR)..5F200808-201107

TYPE B:REFER 33-01

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35080supersedes 84222-35080iKUN26..4FC,5F;KUN25..RHD..SR;KUN25..XTR..SR200507-200810

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35090iKUN26..4FC200610-200810

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35110iKUN2#..4FC,5F200507-200810

84540SWITCH ASSY, NEUTRAL START

main84540-71010iKUN26..5FC200808-201108

89491SENSOR, ENGINE OIL LEVEL

main89491-26081iKUN15,2#..4FC,5F200507-200810

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

827150K410BRACKET,WIRING HARNESS CLAMP

main82715-0K410

9043018008

main90430-18008

9165140825

main91651-40825

9165140830

main91651-40830

9165160614

main91651-60614

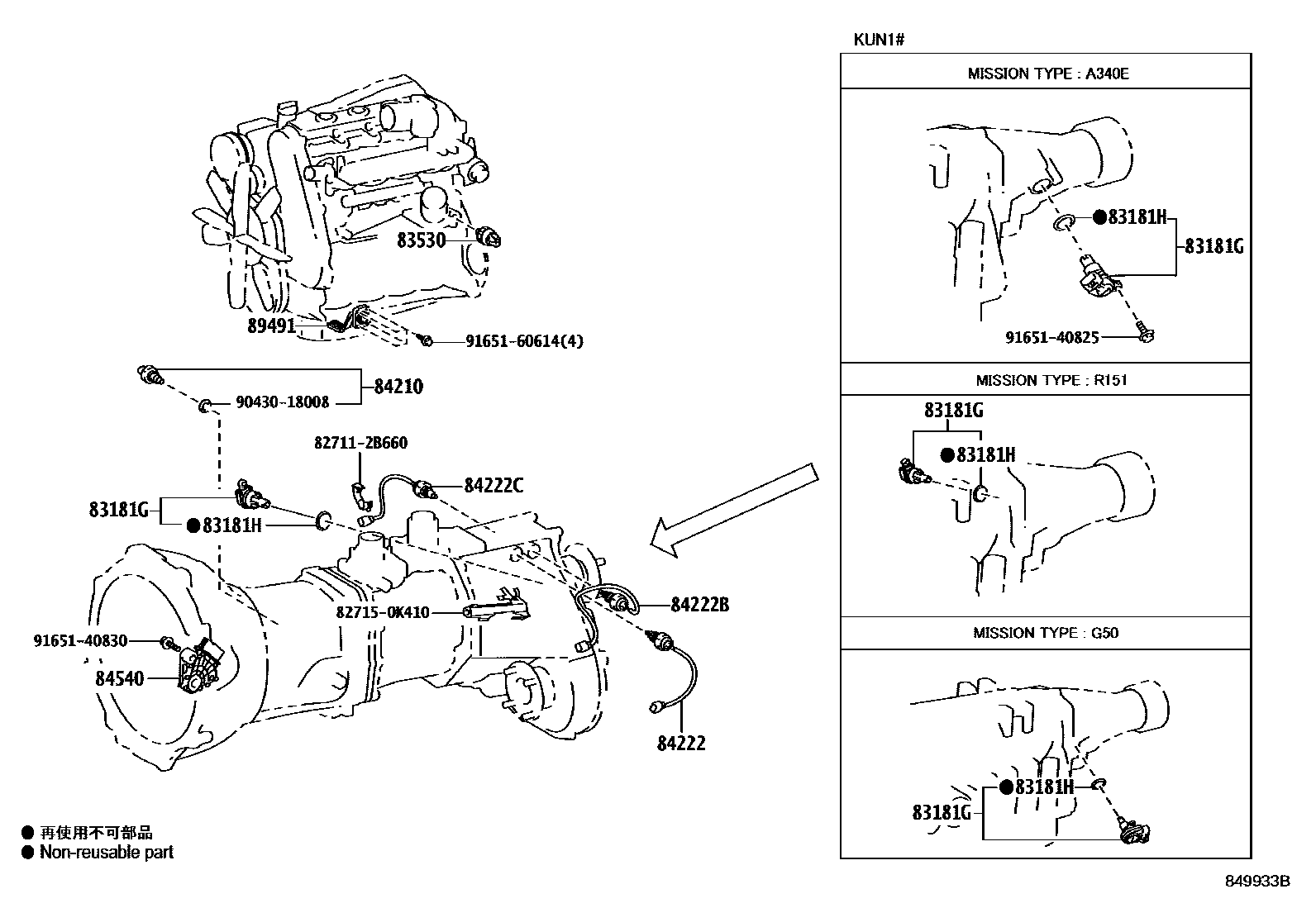

15 parts on this diagram · 9 diagrams in section
