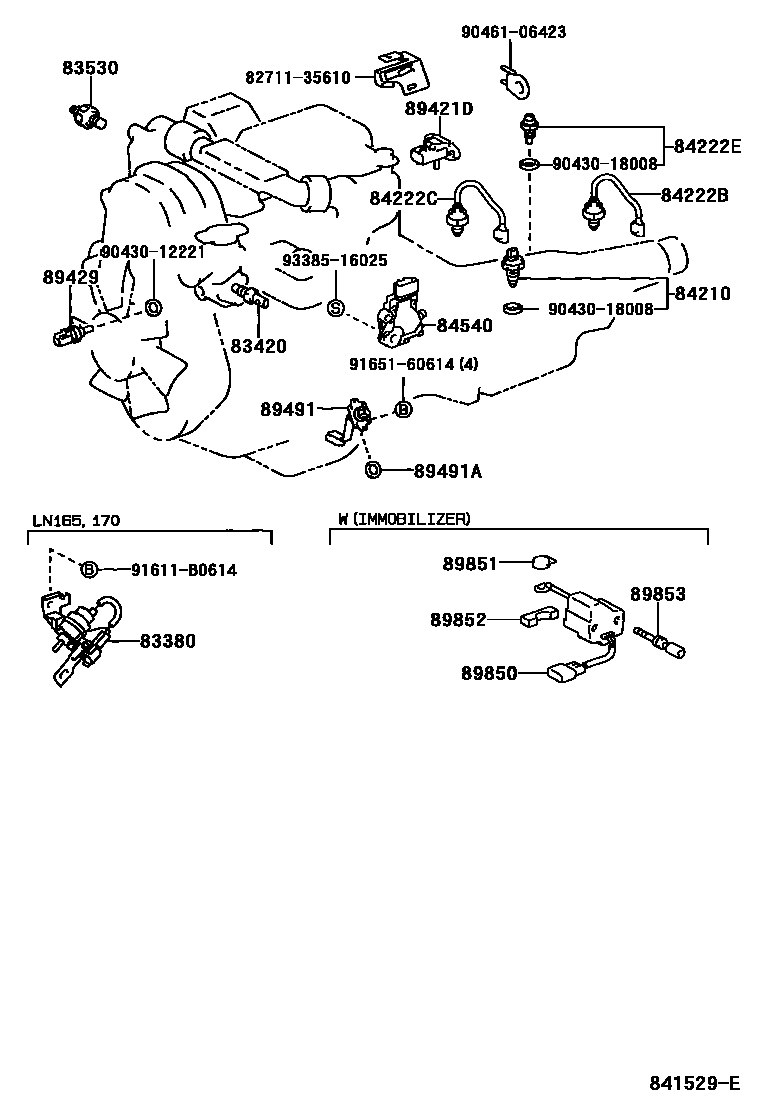

Toyota HILUX — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1INSTRUMENT PANEL SWITCHES 0008 1INSTRUMENT PANEL SWITCHES 0009 1COWL RELAY 0010 1COWL RELAY 0011 1DOOR & FLOOR SWITCHES 0012 1COMBINATION SWITCH 0013 1COMBINATION SWITCH

83380SWITCH ASSY, PRESURE

main83380-35040iLN165,170199708-199805

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLN145,150,165,170,190199708-200108

main83420-20040iRZN168,173199708-200108

main83420-26010iKDN145,150,165,170,190200405-200508

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iRZN168,173199803-200108

main83530-30060iLN145,150,165,170199708-199803

main83530-60010iKDN145,150,165,170,190200108

main83530-60020iRZN168,173199708-199803

main83530-60030iLN145,150,165,170,190199803-200108

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLN145,150,165,170,RZN168,173199708-200108

sub84210-52050

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35060iKDN165,170200108

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35080iKDN165,170200108

84222ESWITCH, DIFFERENTIAL LOCK INDICATOR

main84222-12010iLN165..LHD199708-200108

84540SWITCH ASSY, NEUTRAL START

main84540-30270iKDN190200108

main84540-30290iLN190199908-200108

TOUKAIRIKA

main84540-30300iLN190199908-200108

MATSUSHITA

89421DSENSOR, TURBO PRESSURE

main89421-21010iLN165,170,190199805-200108

89429SENSOR, OIL TEMPERATURE

main89422-20010iLN145,150,165,170,190199708-200108

89491SENSOR, ENGINE OIL LEVEL

main89491-26111iLN145,150199708-200108

subS8346-01580

main89491-35011iLN165,170,190199708-200108

main89491-35040iKDN165,170,190200108

main89491-35050iKDN145,150200108

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iLN145,150,165,170,190199708-200108

89850UNIT ASSY, FUEL CUT VALVE CONTROL

main89850-20011iLN145,150,165,170,190199805-200108

89851CAP, FUEL CUT VALVE CONTROLLER

main89851-20010iLN145,150,165,170,190199805-200108

89852CLAMP, FUEL CUT VALVE CONTROLLER

main89852-20010iLN145,150,165,170,190199805-200108

89853BOLT, FUEL CUT VALVE CONTROLLER

main89853-20010×2iLN145,150,165,170,190199805-200108

8271135610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35610

9043012221

main90430-12221

9043018008

main90430-18008

9046106423

main90461-06423

91611B0614

main91611-B0614

9165160614

main91651-60614

9338516025

main93385-16025

23 parts on this diagram · 13 diagrams in section
