Toyota HILUX — STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0010 1 0011 1RIGID STEERING 0014 1TILT STEERING 0017 1RIGID STEERING 0020 1TILT STEERING

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-35170iLN5#,RN58,YN5#199201-199807

main45201-35170iLN5#,YN5#198308-199201

RIGID STRG

main45201-35180iYN57..SR5..ARL198308-198808

W/POWER STRG

main45210-22050iRN5#,YN50,52,55,57..ME198308-199201

W/TILT STRG

main45210-22050iYN65..5F..GEN198407-198508

*SA,W/TILT STEERING

main45210-22050iLN5#,65,YN50,55,57,60,62,65,67..LHD..GEN198308-199201

W/TILT STRG,W/POWER&TILT STRG

main45210-22050iRN5#,YN50,52,55,57..ME198308-199201

W/TILT & COLLAPSIBLE STRG

main45210-22050iLN6#,RN58,67,YN5#,67199201-199807

W(TILT STEERING)

main45210-35090iRN5#,YN50,52,55,57..ME198308-199201

COLLAPSIBLE STRG

main45210-35100iYN6#..ME198308-198508

COLLAPSIBLE STRG,W/O TILT STRG

main45210-35101iYN60,63,67..ME198508-198808

COLLAPSIBLE STRG,W/O TILT STRG

main45210-35110iLN6#,YN65;YN60..DLX;YN60..ARL,GEN198308-198508

RIGID STRG,W/O TILT STRG

main45210-35111iLN65,YN67..ARL,EUR,GEN,SA198508-199201

RIGID STRG,W/O TILT STRG

main45210-35111iLN6#,YN67199201-199807

45201ABEARING(FOR STEERING MAIN SHAFT)

main45225-35010iYN6#..ME198308-198508

LWR,COLLAPSIBLE STRG

main45225-60010iYN60,63,67..ME198508-198903

LWR,COLLAPSIBLE STRG

main45225-60010iRN61198711-198903

LWR

main90363-18001iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-199201

UPR,W/TILT STRG

main90363-18001iYN65..5F..GEN198407-198508

*SA,UPR,W/TILT STRG

main90363-18001iLN6#,RN58,67,YN5#,67199201-199807

UPR

main90363-28001iLN55,56,YN57..SR5198308-199201

CTR,W/TILT STRG

main90363-28001iLN6#,RN58,67,YN5#,67199201-199807

LWR

main90363-28001iYN65..5F..GEN198407-198508

*SA,CTR,W/TILT STRG

main90363-30007iLN60,65,YN60,65198308-199201

LWR,RIGID STRG

main90369-43004iRN5#,YN50,52,55,57..ME198308-199201

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

T=1.20,LWR

main90520-17269iLN5#,6#,RN5#,6#,YN5#,6#198308-199807

T=1.20,UPR

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-29388iRN5#,YN50,52,55,57..ME198308-198808

main90501-45011iLN6#,YN60,63,65,67..ARL,SA198308-199201

W/TILT STRG

main90501-45011iLN6#,RN58,67,YN5#,67199201-199807

main90501-45011iYN65..5F..GEN198407-198508

*SA,W/TILT STRG

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45201-35160iYN57..SR5..ARL198308-198808

W/POWER & TILT STRG

main45201-35200iLN5#,YN50,55,57..LHD..GEN198308-199201

W/TILT STRG

main45201-35200iRN58,YN5#199201-199807

main45220-35040iRN5#,YN50,52,55,57..ME198308-199201

main45220-35080iLN6#,YN65;YN60..DLX;YN60..ARL,GEN198308-198508

RIGID STRG,W/O POWER STRG

main45220-35090iYN65..SA;LN60,YN6#..SR5..ARL198308-198508

W/POWER STRG

main45220-35100iYN6#..ME198402-198508

COLLAPSIBLE STRG,W/OPOWER STRG

main45220-35110iYN60..SR5..ME198403-198508

W/POWER & COLLAPSIBLE STRG

main45220-35120iRN61198712-198903

main45220-35120iYN63..ME198508-198903

W/COLLAPSIBLE STRG

main45220-35130iLN61,YN63..ARL198508-198903

main45220-35140iYN60,67..ME198508-198808

W/COLLAPSIBLE STRG

main45220-35150iLN65,YN67..ARL,EUR,GEN,SA198508-199807

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-35180iLN5#,YN50,55,57..LHD..GEN198308-199201

W/TILT STRG

main45205-35180iRN58,YN5#199201-199807

W(TILT STEERING)

main45205-35190iLN5#,RN58,YN5#199201-199807

main45205-35190iLN5#,YN50,51,55,56,57,58..ARL,EUR,GEN,SA198308-199201

RIGID STRG

main45205-35200iLN6#,YN65;YN60..DLX;YN60..ARL,GEN198308-198508

RIGID STRG

main45205-35201iYN63..ARL;LN6#,YN60,62,65,67198508-199201

RIGID STRG

main45205-35201iLN6#,YN67199201-199807

main45205-35210iLN65,YN6#..LHD..GEN198308-198508

W/TILT & RIGID STRG

main45205-35210iYN65..5F..GEN198407-198508

*SA,W/TILT & RIGID STRG

main45205-35211iLN6#,RN67,YN67199201-199807

W(TILT STEERING)

main45205-35211iLN6#,YN63,67..ARL,SA198508-199201

W/TILT & RIGID STRG

main45870-35060iRN5#,YN50,52,55,57..ME198308-199201

COLLAPSIBLE STRG

main45870-35070iRN5#,YN50,52,55,57..ME198308-199201

W/TILT & COLLAPSIBLE STRG

main45870-35080iYN6#..ME198308-198508

W/TILT & COLLAPSIBLE STRG

main45870-35081iRN61198712-198903

main45870-35081iYN60,63,67..ME198508-198903

W/TILT & COLLAPSIBLE STRG

main45870-35090iYN6#..ME198308-198508

COLLAPSIBLE STRG

main45870-35091iYN60,63,67..ME198508-198903

COLLAPSIBLE STRG

45205ERING, SNAP(FOR STEERING COLUMN TUBE)

main90521-01002iYN50,52,55,57,6#..ME198308-198508

main90521-01003iRN61198508-199201

45214RETAINER, MAIN SHAFT SPRING

main45214-30040iRN5#,YN50,52,55,57..ME198308-199201

45221APIN(FOR STEERING INTERMEDIATE SHAFT)

main90250-10059iRN5#,YN50,52,55,57..ME198308-199201

45222CRING, HOLE SNAP(FOR DUST COVER)

main90521-52003iRN5#,YN50,52,55,57..ME198308-199201

45222DRING, O(FOR DUST COVER)

main90301-23054iRN5#,YN50,52,55,57..ME198308-199201

45222FCOVER, DUST

main45222-30030iRN5#,YN50,52,55,57..ME198308-199201

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45224-30040iRN5#,YN50,52,55,57..ME198308-199201

15.97-16.00,L=15.97-16.00

main45225-30040iRN5#,YN50,52,55,57..ME198308-199201

16.00-16.03,L=16.00-16.03

45226ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING)

main45226-30020iRN5#,YN50,52,55,57..ME198308-199201

sub45226-30021

45230COUPLING ASSY, FLEXIBLE

main45230-35020iLN5#,RN5#,YN5#198308-199201

main45230-35040iLN6#,YN6#198308-198508

main45230-35060iYN51,56,58199108-199807

45253COVER, STEERING COLUMN HOLE

main45025-35050iLN65,YN6#..LHD198308-198508

RIGID STRG

main45025-35051iLN65,YN6#..LHD198508-199201

RIGID STRG

main45025-35051iLN5#,RN58,YN5#199201-199807

main45025-35060iLN6#,YN6#..RHD198308-198508

main45025-35061iLN6#,YN63,65,67..RHD198508-199807

main45025-35070iYN6#..ME198308-198508

COLLAPSIBLE STRG

sub45025-35071

main45025-35071iYN60,63,67..ME198508-198903

COLLAPSIBLE STRG

main45025-35071iRN61198712-198903

main45025-35080iYN50,55..4H198308-198510

sub45025-35081

main45025-35081iYN50,51,55,56..4H198510-199201

main45025-35090iLN5#,YN50,55,56,57..RHD..(4F,4FC,5F)198308-198510

main45025-35091iLN5#,YN50,51,55,56,57,58..RHD..(4F,4FC,5F)198510-199201

main45025-35091iRN58,YN5#199201-199807

W(TILT STEERING)

main45025-35100iLN5#,YN50,55,56,57..LHD..(EUR,GEN)198308-199201

RIGID STRG

main45025-35110iRN5#,YN50,52,55,57..ME198308-199201

COLLAPSIBLE STRG

45254SHIELD, STEERING COLUMN HOLE

main45254-35010iLN65,RN61,YN6#..LHD198308-199201

main45254-35020iLN6#,RN67,YN60,63,65,67..RHD198308-199807

main45254-35030iLN5#,RN58,YN50,51,55,56,57,58..RHD198308-199807

main45254-35040iLN5#,RN5#,YN50,52,55,56,57..LHD198308-199201

45255PLATE, STEERING COLUMN HOLE COVER

main45255-35010iRN50,55,YN50,52,55,57..ME198308-199807

main45255-35020iYN6#..ME198308-198508

sub45255-35021

main45255-35021iRN61198508-198903

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-60122iRN61198308-199201

45275BRACKET, STEERING COLUMN, UPPER

main45280-28040iLN60,65,YN60,63,65,67..ARL,SA198308-198708

W/TILT STRG

main45280-28040iYN65..5F..GEN198407-198508

*SA,W/TILT STRG

main45280-28041iYN58198708-199201

W/TILT STRG

sub45280-28090

main45280-28041iLN6#,RN58,67,YN5#,67199201-199807

W(TILT STEERING)

sub45280-28090

main45280-28060iLN5#,65,YN50,55,57,60,62,65,67..LHD..GEN198308-198708

W/TILT STRG

main45280-28061iLN5#,65,YN50,55,57,67..LHD..GEN198708-199201

W/TILT STRG

sub45280-35171

main45280-35140iLN5#,RN5#,YN50,52,55,56,57..LHD198308-198708

main45280-35141iLN65,YN67..LHD..(EUR,GEN)198708-199201

sub45280-35161

main45280-35150iLN5#,65,YN50,51,55,56,57,58,67..RHD198308-198708

main45280-35151iLN5#,65,YN50,51,55,56,57,58,67..RHD198708-199807

main45280-35160iYN60,63,65,67..ME198308-198708

W/COLLAPSIBLE STRG

main45280-35161iYN6#..ME198708-199201

W/COLLAPSIBLE STRG

main45280-35170iRN5#,YN50,52,55,57,60,63,65,67..ME198308-198708

W/TILT & COLLAPSIBLE STRG

main45280-35171iYN63..ME198708-199201

W/TILT & COLLAPSIBLE STRG

main45280-35171iRN61198712-198903

45281HOUSING, STEERING COLUMN

main45286-35190iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD..(4F,4FC,5F)198308-198608

UPR

main45286-35190-03iLN5#,65,YN50,51,56,57,58,67..RHD..(4F,4FC,5F)..(EUR,GEN,SA)198608-199201

UPR,GRAY,GRAY,TRIM1#

sub45286-35190

main45286-35190-03iLN5#,6#,RN58,67,YN5#,67199201-199807

UPR,GRAY(TRIM1),GRAY

sub45286-35190

main45286-35190-04iLN5#,6#,RN58,67,YN5#,67199201-199807

UPR,BLUE(TRIM8),BLUE

sub45286-35190

main45286-35190-04iLN5#,65,YN50,51,56,57,58,67..RHD..(4F,4FC,5F)198608-199201

UPR,BLUE,BLUE,TRIM8#

sub45286-35190

main45286-35190-05iLN5#,6#,YN50,51,55,56,57,58,67..RHD..(4F,4FC,5F)198608-199201

UPR,BEIGE,BEIGE,TRIM4#

sub45286-35190

main45286-35190-05iLN5#,6#,RN58,67,YN5#,67199201-199807

UPR,BEIGE(TRIM4),BEIGE

sub45286-35190

main45286-35200iYN50,55..4H198308-198608

UPR

main45286-35200-03iYN51,56..4H198608-199108

UPR,GRAY,GRAY,TRIM1#

sub45286-35200

main45286-35200-04iYN51,55,56..4H198608-199108

UPR,BLUE,BLUE,TRIM8#

sub45286-35200

main45286-35200-05iYN51,55,56..4H198608-199108

UPR,BEIGE,BEIGE,TRIM4#

sub45286-35200

main45286-35210-03iYN51,56..STD199108-199201

UPR,GRAY,GRAY

sub45286-35210

main45286-35210-04iYN51,56..STD199108-199201

UPR,BLUE,BLUE

sub45286-35210

main45286-35210-05iYN51,56..STD199108-199201

UPR,BEIGE,BEIGE

sub45286-35210

main45286-35220iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

UPR

main45286-35220-03iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198608-199201

UPR,GRAY,GRAY,TRIM1#

sub45286-35220

main45286-35220-04iLN5#,65,RN5#,YN50,52,55,56,57,67..LHD198608-199201

UPR,BLUE,BLUE,TRIM8#

sub45286-35220

main45286-35220-05iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198608-199201

UPR,BEIGE,BEIGE,TRIM4#

sub45286-35220

main45286-35230iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

UPR,W/TILT STRG

main45286-35230-03iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

UPR,W/TILT STRG,GRAY,GRAY,TRIM1#

sub45286-35230

main45286-35230-03iRN61198712-198903

UPR,GRAY,GRAY,TRIM1#

sub45286-35230

main45286-35230-04iLN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME)198608-199201

UPR,W/TILT STRG,BLUE,BLUE,TRIM8#

sub45286-35230

main45286-35230-05iRN61198712-198903

UPR,BEIGE,BEIGE,TRIM4#

sub45286-35230

main45286-35230-05iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

UPR,W/TILT STRG,BEIGE,BEIGE,TRIM4#

sub45286-35230

main45286-35240iLN55,56,YN57..SR5198308-198608

UPR,W/TILT STRG

main45286-35240iYN65..5F..GEN198407-198508

*SA,UPR,W/TILT STRG

main45286-35240-03iLN5#,6#,RN58,67,YN5#,67199201-199807

UPR,GRAY(TRIM1),W(TILT STEERING),GRAY

sub45286-35240

main45286-35240-03iLN56,YN57..SR5198608-199201

UPR,W/TILT STRG GRAY,GRAY,TRIM1#

sub45286-35240

main45286-35240-03iLN6#,YN58,6#..RHD..(DLX,SR5)198608-199201

UPR,W/TILT STRG,GRAY,GRAY,TRIM1#

sub45286-35240

main45286-35240-04iLN56,YN57..SR5198608-199201

UPR,W/TILT STRG,BLUE

sub45286-35240

main45286-35240-04iLN5#,6#,RN58,67,YN5#,67199201-199807

UPR,BLUE(TRIM8),W(TILT STEERING),BLUE

sub45286-35240

main45286-35240-04iLN56,YN57..SR5198608-199201

UPR,W/TILT STRG,BLUE,BLUE,TRIM8#

sub45286-35240

main45286-35240-05iLN56,YN57..SR5198608-199201

UPR,W/TILT STRG,BEIGE,BEIGE,TRIM4#

sub45286-35240

main45286-35240-05iLN5#,6#,RN58,67,YN5#,67199201-199807

UPR,BEIGE(TRIM4),W(TILT STEERING),BEIGE

sub45286-35240

main45287-35140iLN6#,YN60,63,65,67..ARL,SA198308-198608

LWR,W/TILT STRG

main45287-35140iYN65..5F..GEN198407-198508

*SA,LWR,W/TILT STRG

main45287-35140-03iLN56,YN57..SR5198608-199201

LWR,W/TILT STRG,GRAY,GRAY,TRIM1#

sub45287-35140

main45287-35140-03iLN5#,6#,RN58,67,YN5#,67199201-199807

LWR,GRAY(TRIM1),W(TILT STEERING),GRAY

sub45287-35140

main45287-35140-04iLN56,YN57..SR5198608-199201

LWR,W/TILT STRG BLUE,BLUE,TRIM8#

sub45287-35140

main45287-35140-04iLN65,YN58,67..ARL,SA198608-199201

LWR,W/TILT STRG,BLUE,BLUE,TRIM8#

sub45287-35140

main45287-35140-04iLN5#,6#,RN58,67,YN5#,67199201-199807

LWR,BLUE(TRIM8),W(TILT STEERING),BLUE

sub45287-35140

main45287-35140-05iLN56,YN57..SR5198608-199201

LWR,W/TILT STRG,BEIGE,BEIGE,TRIM4#

sub45287-35140

main45287-35140-05iLN5#,6#,RN58,67,YN5#,67199201-199807

LWR,BEIGE(TRIM4),W(TILT STEERING),BEIGE

sub45287-35140

main45287-35150iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD..(4F,4FC,5F)198308-198608

LWR

main45287-35150-03iLN61,YN63..ARL198608-199201

LWR,GRAY,GRAY,TRIM1#

sub45287-35150

main45287-35150-03iLN5#,6#,RN58,67,YN5#,67199201-199807

LWR,GRAY(TRIM1),GRAY

sub45287-35150

main45287-35150-04iLN5#,65,YN50,51,56,57,58,67..RHD..(4F,4FC,5F)198608-199201

LWR,BLUE,BLUE,TRIM8#

sub45287-35150

main45287-35150-04iLN5#,6#,RN58,67,YN5#,67199201-199807

LWR,BLUE(TRIM8),BLUE

sub45287-35150

main45287-35150-05iLN5#,6#,RN58,67,YN5#,67199201-199807

LWR,BEIGE(TRIM4),BEIGE

sub45287-35150

main45287-35150-05iLN5#,6#,YN50,51,55,56,57,58,67..RHD..(4F,4FC,5F)198608-199201

LWR,BEIGE,BEIGE,TRIM4#

sub45287-35150

main45287-35160iYN50,55..4H198308-198608

LWR

main45287-35160-03iYN51,56..STD..(ARL,SA)198608-199201

LWR,GRAY,GRAY,TRIM1#

sub45287-35160

main45287-35160-04iYN51,55,56..STD..(ARL,SA)198608-199201

LWR,BLUE,BLUE,TRIM8#

sub45287-35160

main45287-35160-05iYN51,55,56..STD..(ARL,SA)198608-199201

LWR,BEIGE,BEIGE,TRIM4#

sub45287-35160

main45287-35170iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

LWR

main45287-35170-03iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198608-199201

LWR,GRAY,GRAY,TRIM1#

sub45287-35170

main45287-35170-04iLN5#,65,RN5#,YN50,52,55,56,57,67..LHD198608-199201

LWR,BLUE,BLUE,TRIM8#

sub45287-35170

main45287-35170-05iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198608-199201

LWR,BEIGE,BEIGE,TRIM4#

sub45287-35170

main45287-35180iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

LWR,W/TILT STRG

main45287-35180-03iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

LWR,W/TILT STRG,GRAY,GRAY,TRIM1#

sub45287-35180

main45287-35180-03iRN61198712-198903

LWR,GRAY,GRAY,TRIM1#

sub45287-35180

main45287-35180-04iLN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME)198608-199201

LWR,W/TILT STRG,BLUE,BLUE,TRIM8#

sub45287-35180

main45287-35180-05iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

LWR,W/TILT STRG,BEIGE,BEIGE,TRIM4#

sub45287-35180

main45287-35180-05iRN61198712-198903

LWR,BEIGE,BEIGE,TRIM4#

sub45287-35180

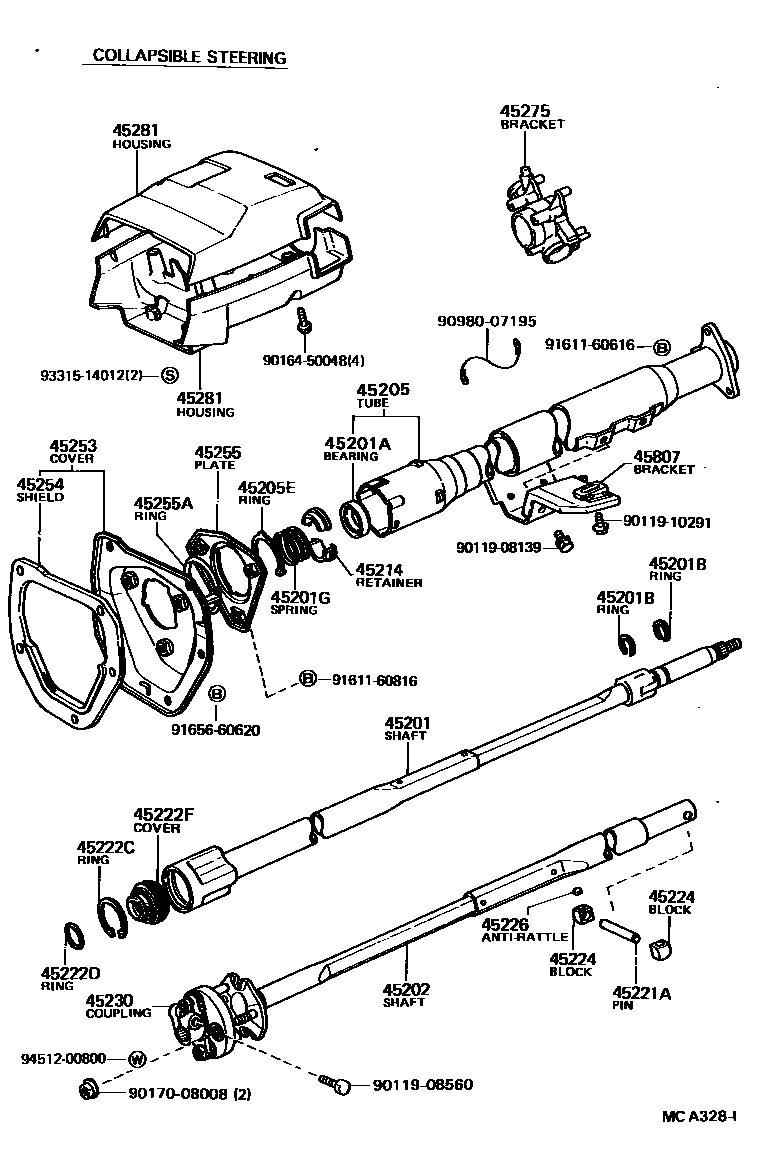

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-35030iYN50,52,55,57,6#..ME198308-198501

W/TILT STRG

sub45082-35031

main45082-35031iRN5#,YN50,52,55,57..ME198501-199201

W/TILT STRG

main45082-35040iYN60,63,65,67..ME198501-198903

W/TILT STEERING

main45807-35070iRN5#,YN50,52,55,57,60,63,65,67..ME198308-199201

main45807-35080iLN6#,YN6#..ARL,SA198308-198501

sub45807-35081

main45807-35080iYN65..5F..GEN198407-198501

*SA

sub45807-35081

main45807-35081iLN56,YN57..SR5198501-199807

9011908139

main90119-08139

9011908560

main90119-08560

9011910291

main90119-10291

9016450048

main90164-50048

9017008008

main90170-08008

9098007195

main90980-07195

9161160616

main91611-60616

9161160816

main91611-60816

9165660620

main91656-60620

9331514012

main93315-14012

9451200800

main94512-00800

33 parts on this diagram · 13 diagrams in section
