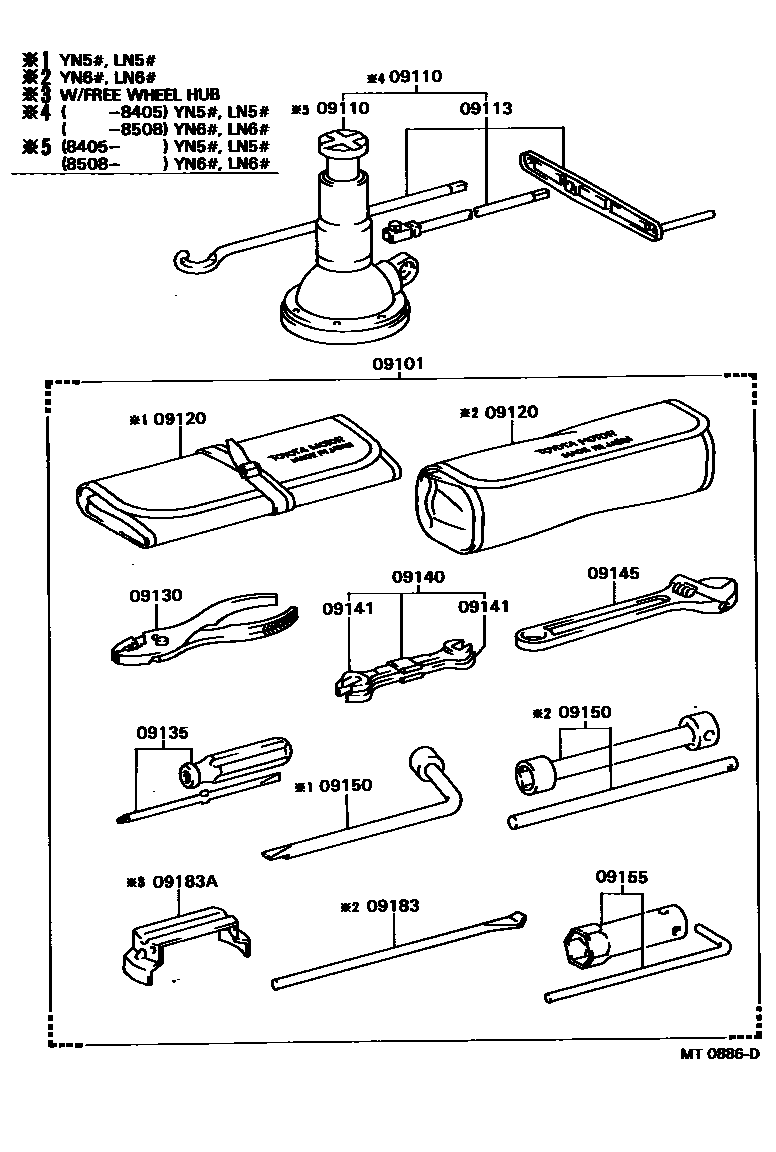

Toyota HILUX — STANDARD TOOL

0001 1 0002 1

09101TOOL SET, STANDARD W/O JACK

main09101-26190iLN5#198308-198505

main09101-26192iYN5#198308-198505

main09101-35260iLN6#198308-198404

main09101-35261iYN6#198308-198404

main09101-35262iLN6#..ARL198308-198404

W/FREE WHEEL HUB

sub09101-35330

main09101-35263iYN6#..ARL198308-198404

W/FREE WHEEL HUB

sub09101-35300

main09101-35300iYN6#198404-198508

main09101-35330iLN6#198404-198508

09110JACK ASSY

main09110-35091iLN5#,YN5#198308-198405

sub09111-35071

sub09113-35070

main09110-35121iLN6#,YN6#198308-198508

sub09111-27050

sub09113-35110

main09110-35150iLN56,YN55,56,57,58..ARL198601-199807

main09110-35160iLN6#,YN63,67..ARL198601-198808

main09110-89101iLN61,YN63..ARL198808-198903

sub09110-35170

main09111-35071iLN5#,YN5#198405-199807

main09111-35110iLN65,RN61,YN6#..EUR,GEN,ME,SA198508-199807

main09111-89101iRN61198808-198903

sub09111-89103

09113HANDLE, JACK

main09113-35070iLN5#,YN5#198308-198508

sub09113-35071

main09113-35110iLN6#,YN6#198308-198508

09120BAG, TOOL

main09120-26021iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

sub09120-35170

main09120-35060iLN60,61,65,RN61,YN6#198404-199807

sub09120-35110

main09120-36020iLN6#,YN6#198308-198404

09130PLIERS

main99913-11500iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

09135DRIVER, SCREW

main99915-10700iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

09140SPANNER SET

main09140-27010iLN5#,6#,RN5#,61,YN5#,6#198308-198808

09141SPANNER

main99914-11012iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

10 X 12,10X12

main99914-11417iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200iLN5#,6#,RN5#,YN5#,6#198308-198605

sub99911-11200

main99911-11200iYN58..4F;YN58..SR5,STD;LN51,56,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198605-199807

09150WRENCH, HUB NUT BOX

main09150-35020iLN5#,RN5#,YN5#198308-199305

sub09150-40010

main09150-40010iLN51,56,RN58,YN5#..RCB199305-199807

main09150-60010iLN6#,RN6#,YN6#198308-199508

main09150-60020iLN67,RN67199508-199807

09155WRENCH, SPARK PLUG

main09155-26010iRN58..SR5;RN50,55,6#198601-199807

main09155-41010iYN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

09183WRENCH, WHEEL CAP

main09183-00030iLN60,61,65,RN6#,YN6#198308-199807

09183AREPLACER, WHEEL CAP

main09183-35010iLN61,RN61,YN63198512-199807

main09183-60010iLN6#,YN6#..ARL198308-198404

W/MECHANICAL WINCH

main09183-60010iLN6#,YN6#198404-199807

13 parts on this diagram · 2 diagrams in section
