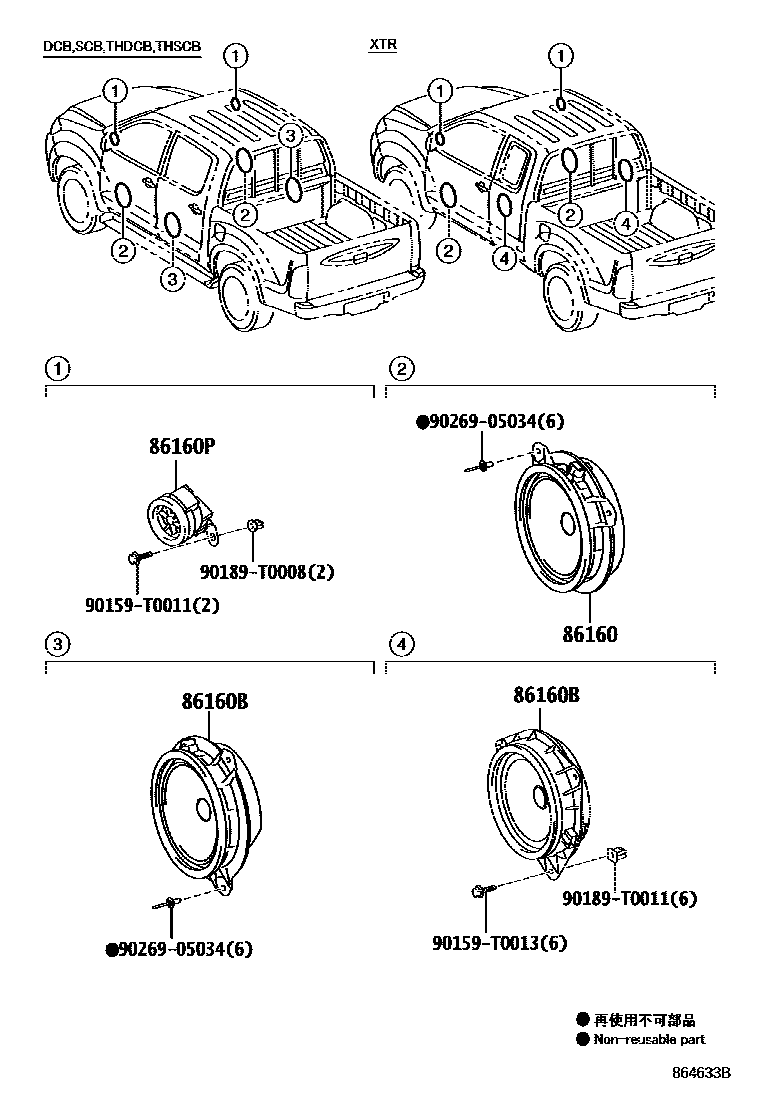

Toyota HILUX — SPEAKER
86160SPEAKER ASSY, FRONT NO.1
86160BSPEAKER ASSY, REAR
AUDIO-WITHOUT(AUDIO) & 4SPEAKER
86160PSPEAKER ASSY, FRONT NO.2
main86150-0K010supersedes 86150-0K020iKUN26..SR;KUN25..SR..FLD; KUN35..DCB..SR;KUN25..(DCB,THDCB,XTR)..SR..EUR201107-201512
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS,RH; RH
main86150-0K020iKUN26..SR;KUN25..SR..FLD; KUN35..DCB..SR;KUN25..(DCB,THDCB,XTR)..SR..EUR201107-201512
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS,LH; LH
90159T0011
main90159-T0011
90159T0013
main90159-T0013
90189T0008
main90189-T0008
90189T0011
main90189-T0011
9026905034
main90269-05034
8 parts on this diagram · 1 diagram in section
SPEAKER for Toyota HILUX
This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota HILUX. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
