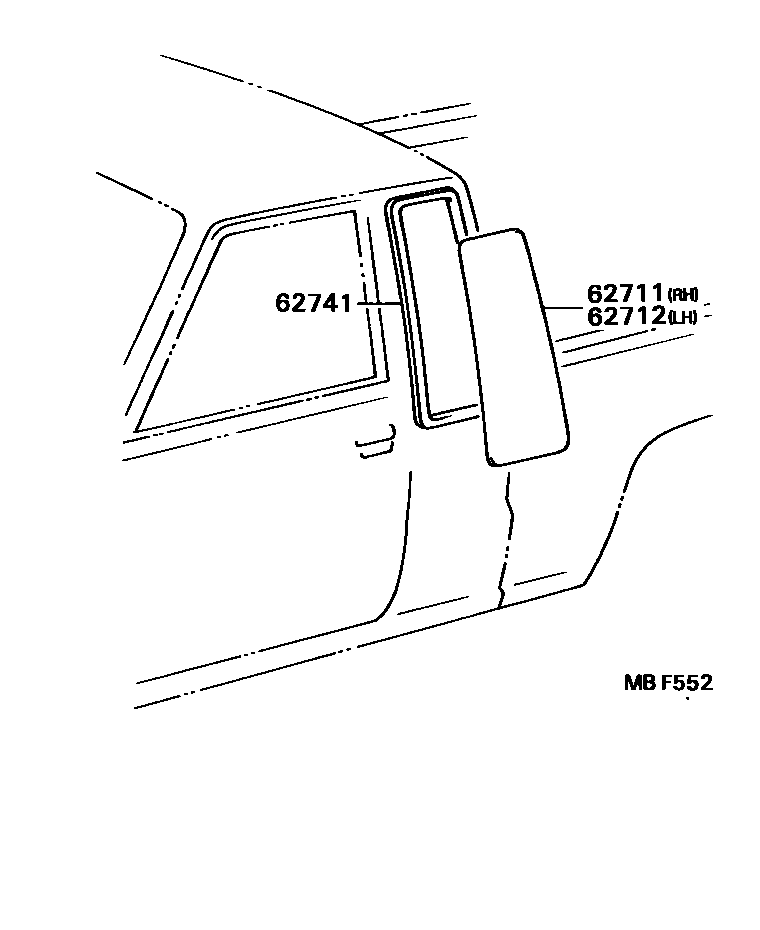

Toyota HILUX — SIDE WINDOW

0001 1 0002 1

62711GLASS, QUARTER WINDOW, RH

main62711-89101iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

*TEM,T=3.5,*TEM,T=3.5

main62711-89102iLN55,YN57..XTR..GEN198309-198408

*TT,T=3.5,*TT,T=3.5

main62711-89111iLN56,65,YN57..XTR..GEN198408-199807

*TT,T=4.0,*TT,T=4.0

62712GLASS, QUARTER WINDOW, LH

main62712-89101iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

*TEM,T=3.5,*TEM,T=3.5

main62712-89102iLN55,YN57..XTR..GEN198309-198408

*TT,T=3.5,*TT,T=3.5

main62712-89111iLN56,65,YN57..XTR..GEN198408-199807

*TT,T=4.0,*TT,T=4.0

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-89101iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

RH

main62742-89101iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

LH

3 parts on this diagram · 2 diagrams in section
