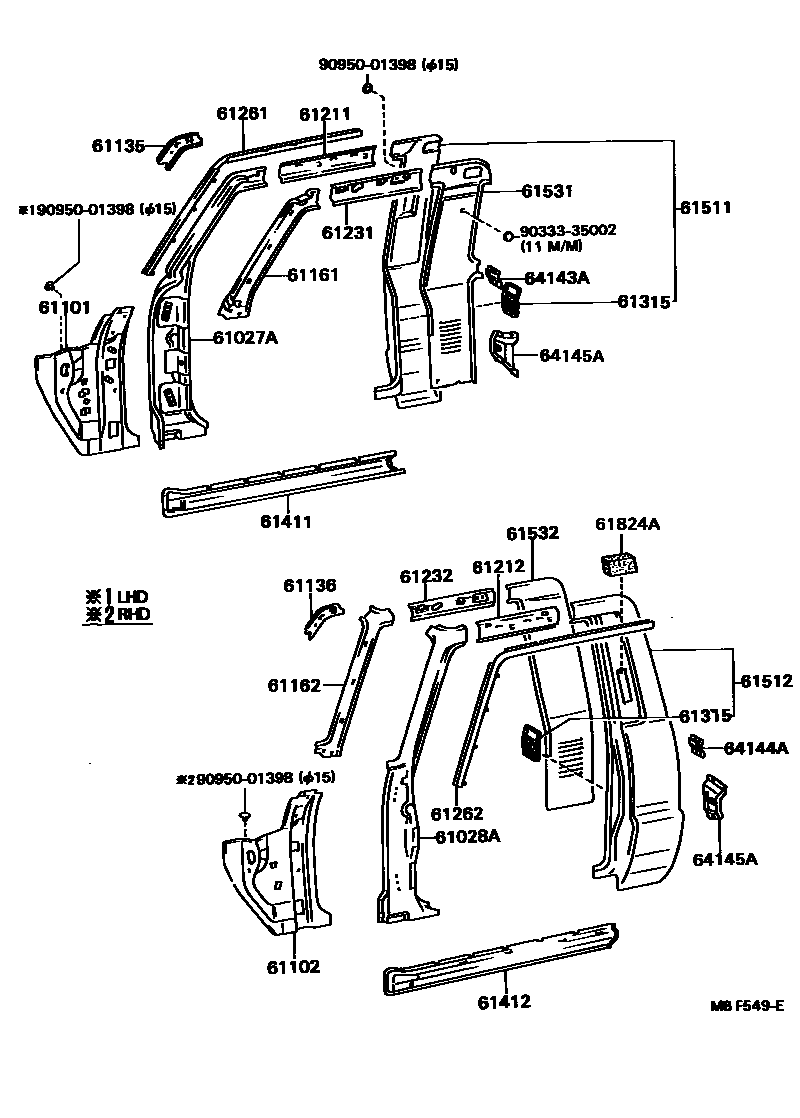

Toyota HILUX — SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-89108iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..RCB,XTR198308-199807

main61027-89109iRN50,55,YN52,57,60,65,67..RCB..ME198408-199807

W/*PW

sub61027-89108

main61027-89110iLN60,61,YN60,63..WG198403-198903

main61027-89111iRN61198712-198903

sub61027-89110

main61027-89111iYN60,63..SR5..ME198403-199807

W/*PW

sub61027-89110

main61027-89112iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

sub61027-89110

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-89108iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..RCB,XTR198308-199807

main61028-89109iRN50,55,YN52,57,60,65,67..RCB..ME198408-199807

W/*PW

sub61028-89108

main61028-89110iLN60,61,YN60,63..WG198403-198903

main61028-89111iRN61198712-198903

sub61028-89110

main61028-89111iYN60,63..SR5..ME198403-198903

W/*PW

sub61028-89110

main61028-89112iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

sub61028-89110

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-89127iRN58..SR5;LN50,51,55,56,60,61,65,RN67,YN50,51,55,56,57,58,60,63,65,67..RHD198308-199807

main61101-89128iLN55,65,YN56,65..LHD..EUR..CBU198308-198608

W/HEADLAMP CLEANER

sub61101-89133

main61101-89130iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

sub61101-89132

main61101-89131iRN61198712-198903

main61101-89131iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198612-198702

PLANT A51-A54

main61101-89132iYN63..ME198608-198702

W/*PW,PLANT P11

sub61101-89131

main61101-89133iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198612-198702

PLANT P11

main61101-89133iLN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR198608-198612

W/HEADLAMP CLEANER

main61101-89134iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198608-198612

PLANT P11

sub61101-89133

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-89124iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-198608

sub61102-89127

main61102-89125iLN5#,65,RN5#,YN5#,6#..LHD198308-198903

main61102-89126iLN5#,65,67,YN50,51,55,56,57,58,67..RHD198608-199807

PLANT P11

main61102-89127iRN58..SR5;LN51,56,61,65,RN67,YN50,51,55,56,57,58,6#..RHD198608-199807

PLANT A51-A54

main61102-89128iLN51,56,65,RN50,55,YN50,52,55,56,57,6#..LHD198608-199807

61135REINFORCEMENT, FRONT BODY PILLAR, UPPER RH

main61135-89106iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

61136REINFORCEMENT, FRONT BODY PILLAR, UPPER LH

main61136-89106iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-89107iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-89107iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

61211RAIL, ROOF SIDE, OUTER RH

main61211-89105iLN50,51,55,56,60,61,65,RN5#,6#,YN5#,6#..T1,T3,WG198308-199807

main61211-89106iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

61212RAIL, ROOF SIDE, OUTER LH

main61212-89105iLN50,51,55,56,60,61,65,RN5#,6#,YN5#,6#..T1,T3,WG198308-199807

main61212-89106iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

61231RAIL, ROOF SIDE, INNER RH

main61231-89109iLN50,51,55,56,60,61,65,RN5#,6#,YN5#,6#..T1,T3,WG198308-199807

main61231-89110iLN55,65,YN55,65..TW..(GEN,ME)198312-199807

main61231-89111iRN55,YN57..TW..ME198708-199807

W/RR *ELR

main61231-89111iLN55,56,65,YN57,65..TW..ARL198312-198508

main61231-89111iRN55,YN55,57,67..TW..ME198508-199807

W/SEPARATE SEAT

main61231-89111iLN56,57,65,RN58,67,YN57,58,65,67..TW..(ARL,EUR,SA)198508-199807

NEW ZEALAND SPEC

61232RAIL, ROOF SIDE, INNER LH

main61232-89109iLN50,51,55,56,60,61,65,RN5#,6#,YN5#,6#..T1,T3,WG198308-199807

main61232-89110iLN55,65,YN55,65..TW..(GEN,ME)198312-199807

main61232-89111iLN65,YN57,67..RHD..TW..GEN198508-199807

NEW ZEALAND SPEC

main61232-89111iRN55,YN57..TW..ME198508-199807

W/SEPARATE SEAT

main61232-89111iRN55,YN57..TW..ME198708-199807

W/RR *ELR

main61232-89111iLN55,56,65,YN57,65..TW..ARL198312-198508

61261CHANNEL, ROOF DRIP, RH

main61261-89105iLN5#,6#,YN5#,6#..RCB198308-198408

sub61261-89109

main61261-89106iLN55,YN57,65..XTR198309-198408

sub61261-89110

main61261-89107iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

main61261-89108iLN60,61,RN61,YN60,63..WG198403-198903

main61261-89109iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..RCB198408-199807

main61261-89110iLN56,65,YN56,57,58,65,67..XTR198408-199807

61262CHANNEL, ROOF DRIP, LH

main61262-89105iLN5#,6#,YN5#,6#..RCB198308-198408

sub61262-89109

main61262-89106iLN55,YN57,65..XTR198309-198408

sub61262-89110

main61262-89107iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

main61262-89108iLN60,61,RN61,YN60,63..WG198403-198903

main61262-89109iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..RCB198408-199807

main61262-89110iLN56,65,YN56,57,58,65,67..XTR198408-199807

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-89102iLN60,61,RN61,YN60,63..WG198403-198903

BACK DOOR

main61309-89102iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

RR DOOR

main61309-89103iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..(RCB,XTR)..(EUR,GEN,ME,SA)198308-199807

LH

main61309-89104iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..(RCB,XTR)..(EUR,GEN,ME,SA)198308-199807

RH

main61315-22020iLN60,61,YN60,63..WG198312-199807

FR DOOR

main61315-22020iLN60,61,RN61,YN60,63..WG198308-198903

61411PANEL, ROCKER, OUTER RH

main61411-89105iYN58..RCB..5F..ARL;YN58..RCB..(4F,4FC);LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..(T1,T3,WG)..(4F,4FC,4H,5F)..(DLX,STD)198308-199807

main61411-89106iLN55,YN50,52,55,57,6#..LHD..T1..DLX198308-199807

W/ROCKER MOULDING

main61411-89106iLN55,56,60,61,RN61,YN57,58,60,63,65,67..SR5198308-199807

main61411-89107iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

main61411-89108iRN55,YN55,57..TW..ME198312-199807

W/ROCKER MOULDING

61412PANEL, ROCKER, OUTER LH

main61412-89105iLN5#,6#,RN50,55,67,YN5#,6#..(T1,T3,WG)..(DLX,STD)198308-199807

main61412-89106iLN55,56,60,61,RN61,YN57,58,60,63,65,67..SR5198308-199807

main61412-89106iLN55,YN50,52,55,57,6#..LHD..T1..DLX198308-199807

W/ROCKER MOULDING

main61412-89107iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

main61412-89108iRN55,YN55,57..TW..ME198312-199807

W/ROCKER MOULDING

61511PILLAR, QUARTER LOCK, RH

main61501-89104iLN55,56,65,RN55,YN55,57,65,67..TW..(ARL,GEN,ME,SA)198312-198608

sub61501-89116

main61501-89105iYN55..TW..ME198312-198408

W/ROCKER MOULDING

sub61501-89104

main61501-89108iYN50,52,55,57,6#..RCB..ME198408-198508

W/ROCKER MOULDING

sub61501-89111

main61501-89108iLN5#,6#,YN50,52,55,57,6#..RCB..(DLX,STD)..(GEN,ME,SA)198308-198608

sub61501-89111

main61501-89109iYN50,52,55,57,6#..LHD..RCB..DLX198308-198408

W/ROCKER MOULDING

sub61501-89108

main61501-89110iLN55,56,65,YN55,56,57,58,65,67..RCB..ARL198308-198808

main61501-89111iLN55,56,65,YN56,65,67..RCB..EUR198308-199807

main61501-89112iLN56,65,YN56,57,58,67..XTR198608-199807

sub61501-89117

main61501-89114iLN55,56,YN57..5F..DLX198309-198608

sub61501-89112

main61501-89115iYN57,65..XTR..SR5198309-198408

W/ROCKER MOULDING

sub61501-89114

main61501-89116iLN56,57,65,RN55,58,67,YN55,57,58,67..TW198608-199807

main61511-89120iLN60,61,RN61,YN60,63..WG198403-198903

61512PILLAR, QUARTER LOCK, LH

main61502-89105iLN55,56,65,RN55,YN55,57,65,67..TW..(ARL,GEN,ME,SA)198312-198608

sub61502-89119

main61502-89106iYN55..TW..ME198312-198408

W/ROCKER MOULDING

sub61502-89105

main61502-89109iLN5#,6#,YN50,55,57,6#..RCB..(DLX,STD)..(GEN,SA)198408-198508

W/ROCKER MOULDING

sub61502-89112

main61502-89109iLN5#,6#,YN50,52,55,57,6#..RCB..(DLX,STD)..(GEN,ME,SA)198308-198608

sub61502-89112

main61502-89110iLN55,56,YN57..RCB..SR5198308-198408

W/ROCKER MOULDING

sub61502-89109

main61502-89111iLN55,56,65,YN55,56,57,58,65,67..RCB..ARL198308-198808

main61502-89112iLN5#,65,67,RN5#,67,YN5#,67..RCB..(GEN,ME,SA)198308-199807

main61502-89115iLN56,YN57,65,67..XTR198408-199807

sub61502-89123

main61502-89116iYN57,65..XTR..SR5198309-198408

W/ROCKER MOULDING

sub61502-89115

main61502-89119iLN56,57,65,RN55,58,67,YN55,57,58,67..TW198608-199807

main61502-89123iLN56,65,YN56,57,67..XTR..(EUR,GEN)198608-199807

W/ROCKER MOULDING

sub61502-89120

main61512-89126iLN60,61,RN61,YN60,63..WG198403-198903

61531PANEL, BACK CORNER, INNER RH

main61531-89112iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

main61531-89113iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..RCB198308-199807

main61531-89114iLN56,57,65,RN58,67,YN57,58,65,67..TW..(ARL,EUR,SA)198508-199807

NEW ZEALAND SPEC

main61531-89114iLN55,56,65,YN57,65..TW..ARL198312-198508

main61531-89114iRN55,YN55,57,67..TW..ME198508-199807

W/SEPARATE SEAT

main61531-89114iYN67..TW..ME198708-199807

W/RR *ELR

main61531-89115iYN65..LHD..TW198312-199807

main61531-89116iLN60,61,RN61,YN60,63..WG198403-199807

61532PANEL, BACK CORNER, INNER LH

main61532-89112iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

main61532-89113iLN50,51,55,56,60,65,RN5#,67,YN5#,60,62,65,67..RCB198308-199807

main61532-89114iRN55,YN57..TW..ME198508-199807

W/SEPARATE SEAT

main61532-89114iLN55,56,65,YN57,65..TW..ARL198312-198508

main61532-89114iLN56,57,65,RN58,67,YN57,58,65,67..TW..(ARL,EUR,SA)198508-199807

NEW ZEALAND SPEC

main61532-89114iRN55,YN57..TW..ME198708-199807

W/RR *ELR

main61532-89115iLN55,65,YN55,65..TW..(GEN,ME)198312-199807

main61532-89116iLN60,61,RN61,YN60,63..WG198403-198903

61824APLATE, NOISE CONTROL, NO.1

main61824-89101iLN51,56,65,RN5#,67,YN5#,67..RCB198608-199807

64143AREINFORCEMENT, BACK CORNER PANEL, RH

main64143-89101iLN55,56,65,YN57,65..TW..ARL198308-198808

main64143-89101iLN56,57,65,RN58,YN57,58,65,67..TW..(ARL,EUR,SA)198508-199807

NEW ZEALAND SPEC

64144AREINFORCEMENT, BACK CORNER PANEL, LH

main64144-89101iLN55,56,65,YN55,56,57,58,65,67..RCB..ARL198308-198808

main64144-89101iLN56,57,65,RN58,YN57,58,65,67..TW..(ARL,EUR,SA)198508-199807

NEW ZEALAND SPEC

64145AGUSSET, UPPER BACK PANEL REINFORCEMENT

main64145-89101iLN65,67..SA198508-199807

main64151-89101iRN58,67..RCB199407-199807

9033335002

main90333-35002

9095001398

main90950-01398

27 parts on this diagram · 4 diagrams in section
