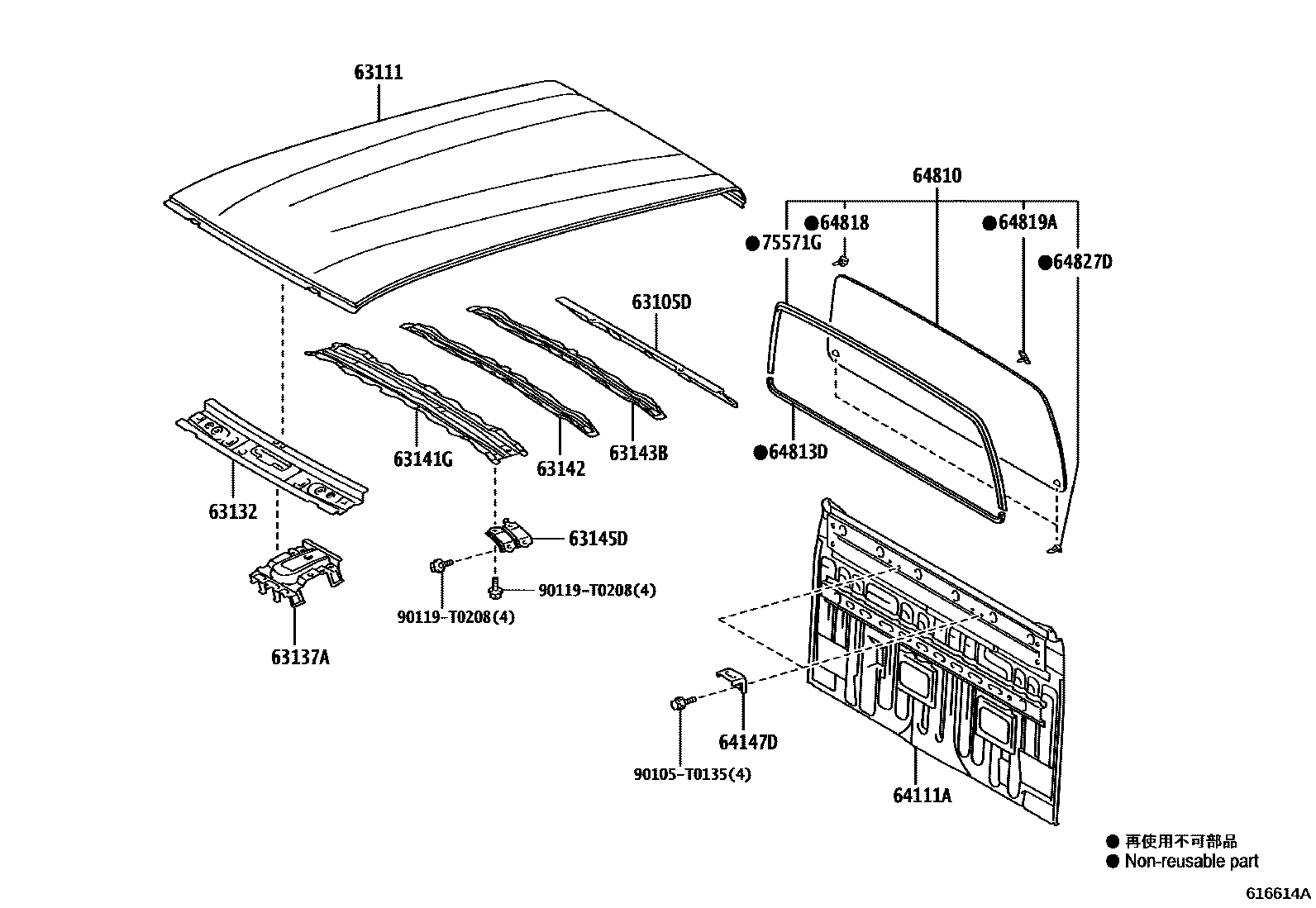

Toyota HILUX — ROOF PANEL & BACK PANEL
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
63132PANEL, WINDSHIELD HEADER, INNER
63137ABRACKET, DOME LAMP, NO.1
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63145DBRACKET, ROOF REINFORCEMENT
64111APANEL, BACK
REAR SEAT-WITH(BACK PANEL CUSHION ONLY)&REAR HEADREST-WITHOUT
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION); REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)&REAR HEADREST-WITH(RH/LH)
64147DPLATE, BACK PANEL CORNER, UPPER
64810WINDOW ASSY, BACK
BACK GLASS-FIX TYPE(PRIVACY)
64813DDAM, BACK WINDOW GLASS ADHESIVE
64818SPACER, BACK WINDOW GLASS
64819ASPACER, BACK WINDOW GLASS, NO.2
64827DCLIP, BACK WINDOW GLASS
75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1
90105T0135
main90105-T0135
90119T0208
main90119-T0208
18 parts on this diagram · 3 diagrams in section
ROOF PANEL & BACK PANEL for Toyota HILUX
This section contains 18 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota HILUX. Key components include: FRAME SUB-ASSY, BACK WINDOW, UPPER, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, BRACKET, DOME LAMP, NO.1, REINFORCEMENT, ROOF PANEL, NO.1.
