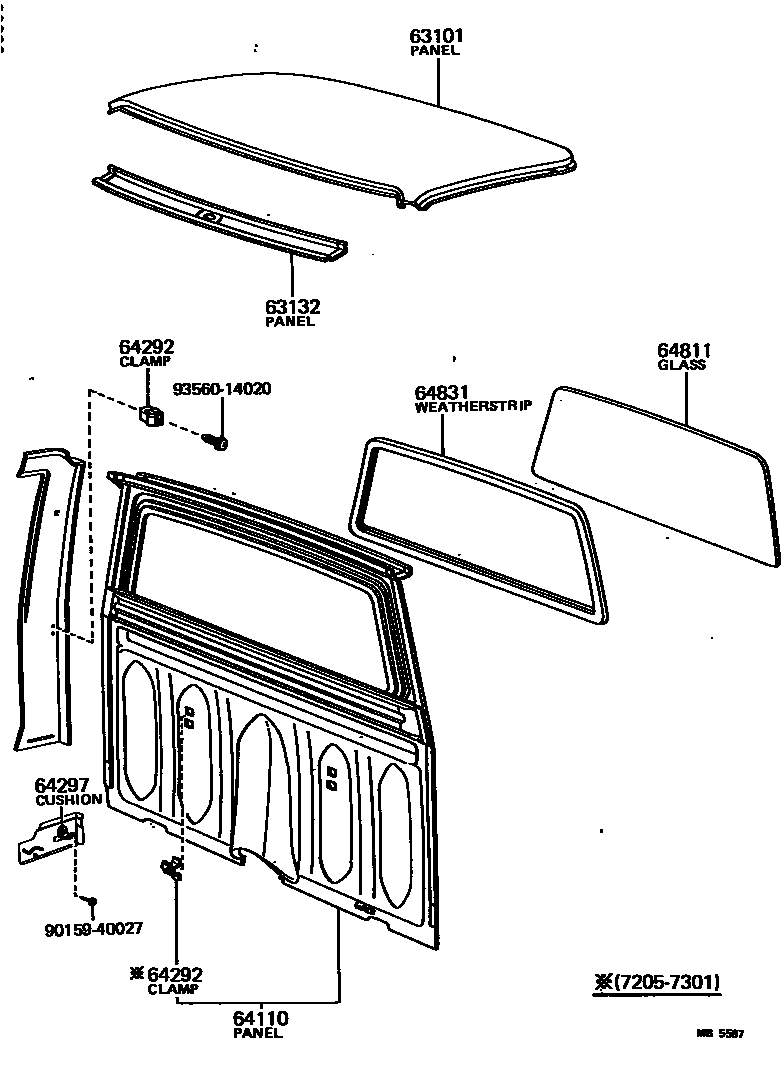

Toyota HILUX — ROOF PANEL & BACK PANEL

63101PANEL SUB-ASSY, ROOF

main63111-89102i197205-197807

main63111-89103i197404-197807

63132PANEL, WINDSHIELD HEADER, INNER

main63132-89102i197205-197510

main63132-89103i197510-197807

64110PANEL ASSY, FRONT BODY BACK

main64101-89105i197205-197807

main64101-89107i197205-197807

AUSTRALIA SPEC.

64292CLAMP, JACK HANDLE

main58706-89101×2i197205-197807

main64292-89102i197404-197807

64297CUSHION, JACK HANDLE

64811GLASS, BACK WINDOW

main64811-89106i197205-197807

TP.T=4.0

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-89106i197205-197607

main64831-89107i197607-197807

9015940027

main90159-40027

9356014020

main93560-14020

9 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK PANEL for Toyota HILUX

This section contains 9 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota HILUX. Key components include: PANEL SUB-ASSY, ROOF, PANEL, WINDSHIELD HEADER, INNER, PANEL ASSY, FRONT BODY BACK, CLAMP, JACK HANDLE, CUSHION, JACK HANDLE.
