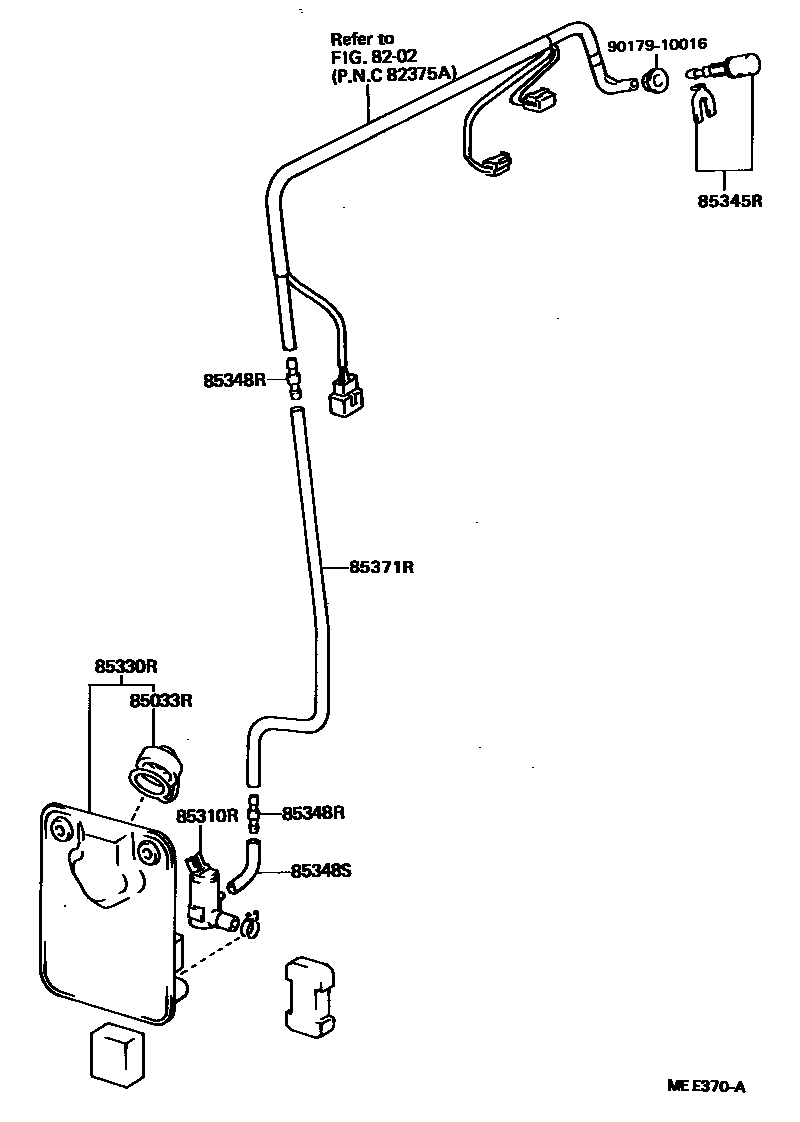

Toyota HILUX — REAR WASHER

8202

85033RCAP ASSY, REAR WASHER

main85332-20070iLN60,61,YN60,63..WG198403-198708

main85332-89132iLN61,RN61,YN63198708-198903

85310RMOTOR ASSY, REAR WASHER

main85310-22080iLN60,61,RN61,YN60,63..WG198403-198903

85330RJAR ASSY, REAR WASHER

main85331-89125iLN60,61,YN60,63..WG198403-198708

main85331-89132iLN61,RN61,YN63198708-198903

85345RNOZZLE, REAR WASHER

main85035-89108iLN60,61,RN61,YN60,63..WG198403-198903

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iLN60,61,YN60,63..WG198403-198903

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iLN60,61,YN60,63..WG198403-198903

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iLN60,YN60..SR5198403-198405

L=1450(*H,L=800)

main90446-06013iLN60,61,YN60,63..WG198405-198903

L=1450(*H,L=700)

9017910016

main90179-10016

9 parts on this diagram · 1 diagram in section
