Toyota HILUX — REAR VENTILATOR & ROOF VENTILATOR

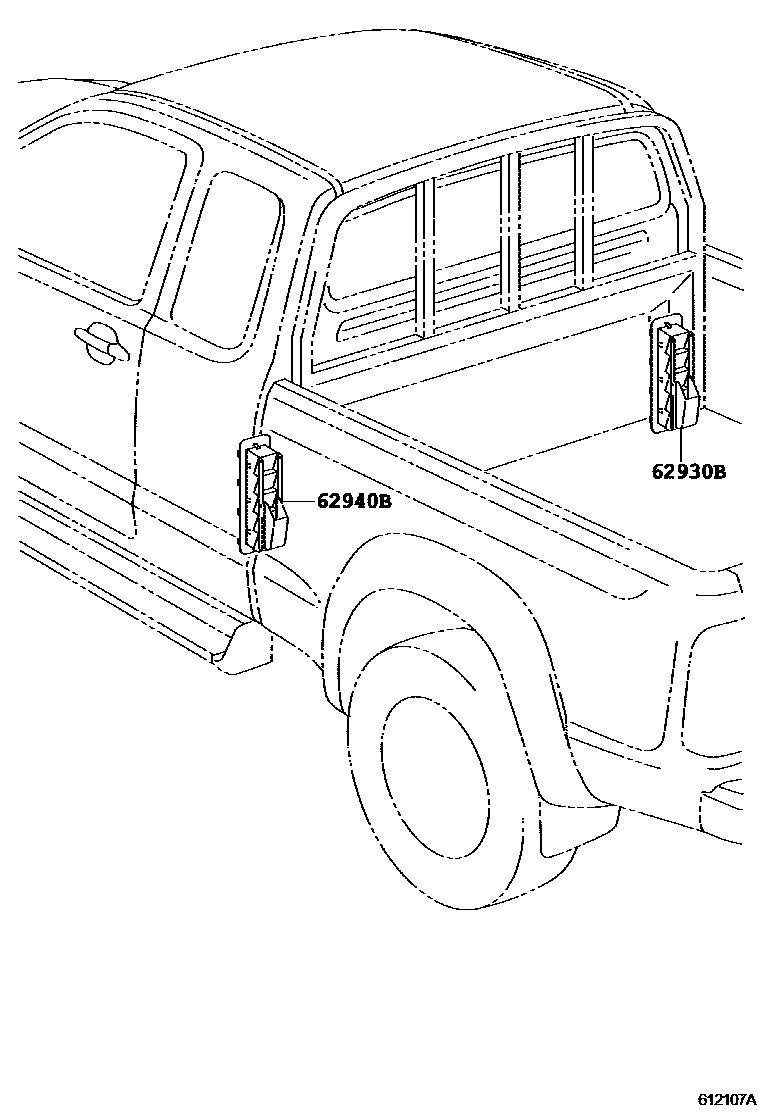

Parts diagram

62930BDUCT ASSY, QUARTER VENT, RH

main62930-0K010i200507-200610

main62930-0K011i200611-200612

main62930-0K012i200612-200703

main62930-0K013i200808-201107

main62930-0K020i200507-200609

main62930-0K021i200610-200611

main62930-0K022i200612-200703

main62930-0K023i200704-200810

main62930-0K063i200701-200703

main62930-0K064i200808-201107

main62930-0K070i200507-200609

main62930-0K071i200610-200611

main62930-0K072i200611-200612

main62930-0K073i200612-200703

main62930-0K074i200704-200810

62940BDUCT ASSY, QUARTER VENT, LH

main62940-0K010i200507-200610

main62940-0K011i200611-200612

main62940-0K012i200612-200703

main62940-0K013i200808-201107

main62940-0K020i200507-200609

main62940-0K021i200610-200611

main62940-0K022i200612-200703

main62940-0K023i200704-200810

main62940-0K113i200701-200703

main62940-0K114i200808-201107

main62940-0K120i200507-200609

main62940-0K121i200610-200611

main62940-0K122i200611-200612

main62940-0K123i200612-200703

main62940-0K124i200704-200810

2 parts on this diagram · 1 diagram in section

REAR VENTILATOR & ROOF VENTILATOR for Toyota HILUX

This section contains 2 genuine Toyota parts for the REAR VENTILATOR & ROOF VENTILATOR system of the Toyota HILUX. Key components include: DUCT ASSY, QUARTER VENT, RH, DUCT ASSY, QUARTER VENT, LH.
