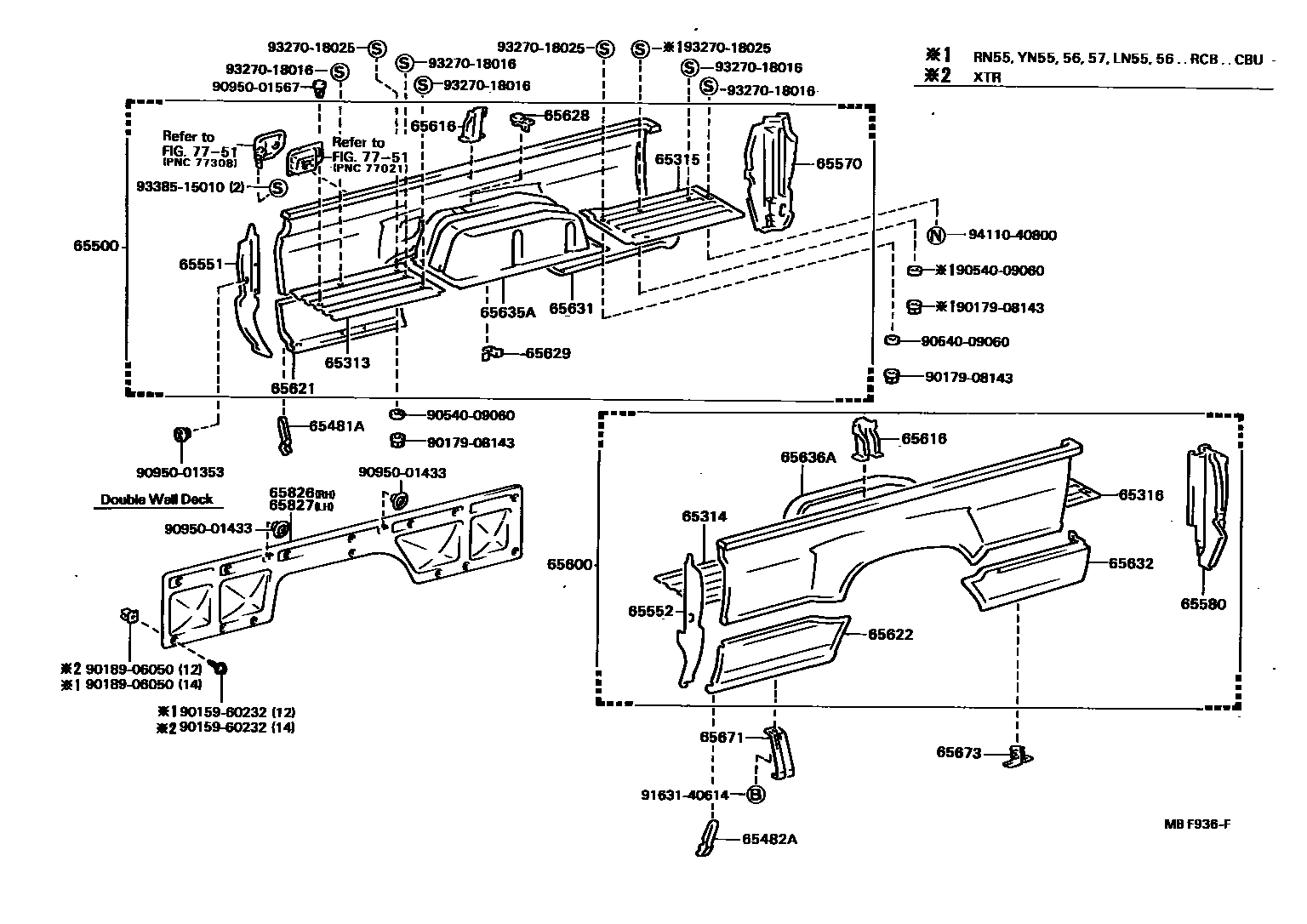

Toyota HILUX — REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-89112iLN50,51,60,RN50,YN50,51,52,60,62..RCB..(4F,4H,5F)..CBU198308-199807

main65313-89114iLN55,56,65,RN55,YN55,56,57,58,65,67..T1..RCB..CBU198308-198708

sub65313-89116

main65313-89116iLN56,57,65,67,RN55,58,67,YN55,56,57,58,67..T1..RCB..CBU198708-199807

65314PANEL, FLOOR FRONT CORNER, LH

main65314-89114iLN55,56,65,YN57,58,65,67..XTR198308-199807

main65314-89116iLN55,56,65,RN55,YN55,56,57,58,65,67..T1..RCB..CBU198308-198708

sub65314-89118

main65314-89118iLN56,57,65,67,RN55,58,67,YN55,56,57,58,67..T1..RCB..CBU198708-199807

65315PANEL, FLOOR REAR CORNER, RH

main65315-89112iLN55,56,YN56,57,58..XTR198308-199807

main65315-89113iLN60,YN60,62..RCB198308-198708

sub65315-89120

main65315-89115iLN55,56,RN55,YN55,57,58..TW198308-199807

sub65315-89118

main65315-89116iLN65,YN65,67..RCB..CBU198308-198708

sub65315-89119

main65315-89118iLN56,57,RN55,58,YN55,56,57,58..T1..RCB..CBU198708-199807

main65315-89119iLN65,67,RN67,YN67..RCB..CBU198708-199807

main65315-89120iLN65,YN67..XTR198708-199807

65316PANEL, FLOOR REAR CORNER, LH

main65316-89112iLN50,51,RN50,YN50,51,52..(4F,4H,5F)..CBU198308-199807

main65316-89113iLN60,YN60,62..RCB198308-198708

sub65316-89120

main65316-89115iLN55,56,RN55,YN55,57,58..TW198308-199807

sub65316-89118

main65316-89116iLN65,YN65,67..RCB..CBU198308-198708

sub65316-89119

main65316-89118iLN56,57,RN55,58,YN55,56,57,58..T1..RCB..CBU198708-199807

main65316-89119iLN65,RN67,YN67..TW198708-199807

main65316-89120iLN65,YN67..XTR198708-199807

65481APROTECTOR, FRONT CORNER, RH

main65481-89108iLN5#,6#,YN5#,6#..T1..CBU198408-199807

main65481-89109iLN5#,65,67,RN58,67,YN50,51,55,57,58,65,67..RCB..SA198412-199807

65482APROTECTOR, FRONT CORNER, LH

main65482-89105iLN5#,6#,YN5#,6#..T1..CBU198408-199807

main65482-89106iLN5#,65,67,RN58,67,YN50,51,55,57,58,65,67..RCB..SA198412-199807

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-89119iYN67..TW..SA198906-199807

main65500-89163iLN55,56,YN57..5F..DLX..GEN198308-198611

sub65500-89314

main65500-89164iLN56,YN57..DLX..GEN198309-198609

W/*WAM

sub65500-89321

main65500-89165iLN56,YN57..DLX..GEN198308-198609

W/FUEL LID OPENER

sub65500-89322

main65500-89166iLN56,YN57..DLX..GEN198309-198609

W/*WAM & FUEL LID OPENER

sub65500-89323

main65500-89167iYN57..SR5198309-198609

sub65500-89313

main65500-89168iYN57..SR5..ARL198309-198312

W/FUEL LID OPENER

main65500-89179iYN57..4F..(GEN,SA)..CBU198308-198608

sub65500-89316

main65500-89180iLN55,56,YN57..RCB..SR5198308-198609

sub65500-89315

main65500-89181iYN55,57..LHD..RCB..GEN..CBU198308-198609

W/FUEL LID OPENER

sub65500-89327

main65500-89183iLN55,56,YN55,57..STD..ARL..CBU198308-198312

main65500-89194iLN60,YN60..GEN198308-198407

main65500-89195iYN60..GEN198308-198407

W/FUEL LID OPENER

main65500-89196iLN65,YN65..STD..ARL..CBU198308-198312

main65500-89197iYN65,67..RCB..ME198308-198609

W/*WAM & FUEL LID OPENER

sub65500-89333

main65500-89198iYN60..DLX198308-198609

W/*WAM

sub65500-89330

main65500-89199iYN60..DLX198308-198601

W/*WAM & FUEL LID OPENER

main65500-89200iYN65..SR5198309-198312

main65500-89201iYN65..SR5198309-198312

W/FUEL LID OPENER

main65500-89206iLN65,YN65..RCB..(GEN,SA)..CBU198308-198407

sub65500-89220

main65500-89207iLN65,YN65..LHD..RCB..GEN..CBU198308-198407

W/FUEL LID OPENER

sub65500-89221

main65500-89208iYN65,67..RCB..ME198308-198609

W/*WAM

sub65500-89331

main65500-89209iLN55,56,YN55..T3198308-199807

main65500-89210iRN50,YN50,52..ME198308-198609

sub65500-89314

main65500-89211iRN50,YN50,52..ME198308-198609

W/*WAM

sub65500-89324

main65500-89212iRN50,YN50,52..ME198308-198609

W/FUEL LID OPENER

sub65500-89325

main65500-89213iRN50,YN50,52..ME198308-198609

W/*WAM & FUEL LID OPENER

sub65500-89326

main65500-89214iRN55,YN55,57..RCB..ME198308-198609

sub65500-89316

main65500-89215iRN55,YN55,57..RCB..ME198308-198609

W/*WAM

sub65500-89329

main65500-89216iRN55,YN55,57..RCB..ME198308-198609

W/FUEL LID OPENER

sub65500-89328

main65500-89217iRN55,YN55,57..RCB..ME198308-198609

W/*WAM & FUEL LID OPENER

sub65500-89336

main65500-89218iYN60..DLX198308-198407

main65500-89219iYN60..DLX198308-198407

W/FUEL LID OPENER

main65500-89220iYN65..ME198308-198407

main65500-89221iYN65..ME198308-198407

W/FUEL LID OPENER

main65500-89222iLN65,YN65..EUR198308-198407

main65500-89227iLN55,56,RN55,YN55,57..TW..(EUR,GEN,ME)198312-199807

main65500-89228iRN55,YN55,57..TW..ME198312-198609

W/*WAM

sub65500-89335

main65500-89229iLN55,YN57..TW..ARL198312-198408

main65500-89231iRN67..TW198312-199807

sub65500-89320

main65500-89232iLN65..TW..ARL198312-198408

main65500-89246iYN57..SR5..ARL198401-198608

sub65500-89307

main65500-89247iYN57..SR5..ARL198401-198608

W/FUEL LIDOPENER

sub65500-89311

main65500-89248iLN65,YN65..RCB..ARL..CBU198401-198407

main65500-89249iYN65,67..SR5198401-198608

sub65500-89309

main65500-89250iYN65,67..SR5198401-198608

W/FUEL LID OPENER

sub65500-89312

main65500-89259iLN56..LHD..RCB..EUR..CBU;LN55,56,YN55,57..RCB..ARL..CBU198401-198608

sub65500-89308

main65500-89271iLN55,YN57..TW..ARL198404-198408

DUBLE WALL DECK

main65500-89271iLN56,YN57,58..TW..ARL198408-198808

main65500-89272iLN65,YN65..TW..ARL198408-198808

main65500-89272iLN65..TW..ARL198404-198408

DUBLE WALL DECK

main65500-89282iLN60,YN60,62..GEN198407-198609

sub65500-89317

main65500-89283iYN60,62..GEN198407-198608

W/FUEL LID OPENER

sub65500-89285

main65500-89284iYN60..DLX198407-198601

main65500-89285iYN60..DLX198407-198601

W/FUEL LID OPENER

main65500-89286iLN65,YN65..RCB..(GEN,SA)..CBU198407-198609

sub65500-89318

main65500-89287iLN65,YN65,67..LHD..RCB..GEN..CBU198407-198609

W/FUEL LID OPENER

sub65500-89332

main65500-89288iYN65,67..RCB..ME198407-198609

sub65500-89319

main65500-89289iYN65,67..RCB..ME198407-198609

W/FUEL LID OPENER

sub65500-89334

main65500-89290iLN65,YN65,67..RCB..(EUR,SA)198407-198608

sub65500-89302

main65500-89291iLN65,YN65,67..RCB..ARL..CBU198407-198608

sub65500-89310

main65500-89298iLN65,YN65..TW..EUR198508-198611

sub65500-89303

main65500-89299iYN65..TW..SA198501-198508

sub65500-89303

main65500-89300iLN56,57,RN58,YN56,58..RCB..(EUR,SA)198608-199807

*GIS

main65500-89301iLN56,RN55,YN55,57..TW..(GEN,ME)198608-199807

*GIS

main65500-89302iLN65,67,RN67,YN67..RCB..(EUR,SA)198608-199807

main65500-89303iLN65,YN67..TW..EUR198608-199807

main65500-89304iYN67..TW..SA198608-198906

main65500-89305iLN56,YN56..DLX..EUR198608-199807

*GIS

main65500-89306iLN65,YN67..DLX..EUR198608-199807

main65500-89307iYN57,58..SR5..ARL198608-198808

main65500-89308iLN56,YN55,56,57,58..RCB..ARL198608-198808

main65500-89309iLN65,YN67..SR5198608-198808

main65500-89310iLN65,YN67..RCB..ARL198608-198808

main65500-89311iYN57,58..SR5..ARL198608-198808

W/FUEL LID OPENER

main65500-89312iLN65,YN67..SR5198608-198808

W/FUEL LID OPENER

main65500-89313iYN57..SR5..GEN198609-198808

main65500-89313iYN57..SR5..GEN198608-198609

*GIS

main65500-89314iLN56,YN57..DLX..GEN198611-199807

main65500-89314iRN50,YN52198608-199807

*GIS

main65500-89315iLN56..SR5198608-198611

*GIS

sub65500-89329

main65500-89316iRN55,YN57..RCB..ME198608-199201

*GIS

main65500-89316iLN56,YN55,57..LHD..T1..STD..GEN198608-199807

main65500-89317iLN65..XTR..GEN198609-199807

main65500-89317iLN65..XTR..GEN198608-198609

*GIS

main65500-89318iLN65,YN67..RCB..GEN198609-199807

sub65500-89319

main65500-89318iLN65,YN67..RCB..GEN198608-198609

*GIS

sub65500-89319

main65500-89319iYN67..RCB..ME198609-199807

main65500-89319iYN67..RCB..ME198608-198609

*GIS

main65500-89320iLN65,YN67..TW..(GEN,ME)198608-198609

*GIS

main65500-89320iLN65,YN67..TW..(GEN,ME)198609-199807

main65500-89321iLN56,YN57..DLX..GEN198609-198611

W/*WAM

sub65500-89324

main65500-89321iLN56,YN57..DLX..GEN198608-198609

*GIS,W/*WAM

sub65500-89324

main65500-89322iLN56,YN57..DLX..GEN198609-198611

W/FUEL LID OPENER

sub65500-89325

main65500-89322iLN51,YN50..LHD198608-198609

*GIS,W/FUEL LID OPENER

sub65500-89325

main65500-89323iLN56,YN57..DLX..GEN198608-198609

*GIS,W/*WAM & FUEL LID OPENER

sub65500-89326

main65500-89323iLN56,YN57..DLX..GEN198609-198611

W/*WAM & FUEL LID OPENER

sub65500-89326

main65500-89324iRN50,YN52198608-198609

*GIS,W/*WAM

main65500-89324iRN50,YN52198609-199807

W/*WAM

main65500-89325iLN56,YN57..DLX..GEN198609-199807

W/FUEL LID OPENER

main65500-89325iRN50,YN52198608-198609

*GIS,W/FUEL LID OPENER

main65500-89326iRN50,YN52198608-198609

*GIS,W/*WAM & FUEL LID OPENER

main65500-89326iLN56,YN57..DLX..GEN198609-199807

W/*WAM & FUEL LID OPENER

main65500-89327iLN56,YN55,57..LHD..T1..STD..GEN198609-198611

W/FUEL LID OPENER

sub65500-89328

main65500-89327iLN56,YN55,57..LHD..T1..STD..GEN198608-198609

*GIS,W/FUEL LID OPENER

sub65500-89328

main65500-89328iRN55,YN57..RCB..ME198608-198609

*GIS,W/FUEL LID OPENER

main65500-89328iRN55,YN57..RCB..ME198609-199807

W/FUEL LID OPENER

main65500-89329iRN55,YN57..RCB..ME198609-199807

W/*WAM

main65500-89329iRN55,YN57..RCB..ME198608-198609

*GIS,W/*WAM

main65500-89329iLN56..SR5198611-199807

*GIS

main65500-89330iLN65..XTR..GEN198608-198609

*GIS,W/*WAM

main65500-89330iLN65..XTR..GEN198609-199807

W/*WAM

main65500-89331iYN67..RCB..ME198609-199807

W/*WAM

main65500-89331iYN67..RCB..ME198608-198609

*GIS,W/*WAM

main65500-89332iLN65,YN67..LHD..RCB..GEN198609-198611

W/FUEL LID OPENER

sub65500-89334

main65500-89332iLN65,YN67..LHD..RCB..GEN198608-198609

*GIS,W/FUEL LID OPENER

sub65500-89334

main65500-89333iYN67..RCB..ME198608-198609

*GIS,W/*WAM & FUEL LID OPENER

main65500-89333iYN67..RCB..ME198609-199807

W/*WAM & FUEL LID OPENER

main65500-89334iYN67..RCB..ME198609-199807

W/FUEL LID OPENER

main65500-89334iYN67..RCB..ME198608-198609

*GIS,W/FUEL LID OPENER

main65500-89335iRN55,YN57..TW..ME198608-198609

*GIS,W/*WAM

main65500-89335iRN55,YN57..TW..ME198609-199807

W/*WAM

main65500-89336iRN55,YN57..RCB..ME198609-199807

W/*WAM & FUEL LID OPENER

main65500-89336iRN55,YN57..RCB..ME198608-198609

*GIS,W/*WAM & FUEL LID OPENER

65551PANEL, FRONT END POST INNER, RH

main65551-89108iLN5#,60,65,67,RN5#,67,YN50,52,55,56,57,58,60,62,65,67..T1..CBU198308-199807

main65551-89110iLN55,56,RN55,YN55,57..TW198312-198608

sub65551-89112

main65551-89111iLN65,YN65,67..TW198312-198608

sub65551-89113

main65551-89112iYN67..TW..SA198608-199807

main65551-89113iLN65,YN67..TW198608-199807

65552PANEL, FRONT END POST INNER, LH

main65552-89108iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..T1..CBU198308-199807

main65552-89110iLN55,56,RN55,YN55,57..TW198312-198608

sub65552-89112

main65552-89111iLN65,YN65,67..TW198312-198608

sub65552-89113

main65552-89112iLN56,RN55,YN55,57,58..TW198608-199807

main65552-89113iLN65,RN67,YN67..TW198608-199807

65570POST ASSY, SIDE PANEL REAR END, RH

main65505-89101iLN56..LHD..(T1,TW)..GEN..CBU;LN56..RHD..(T1,TW)..STD..(EUR,GEN,SA)..CBU;LN50,51,55,6#,YN5#,6#..(T1,TW)..(DLX,STD)..(EUR,GEN,ME,SA)..CBU198308-199807

main65505-89102iYN57..SR5..GEN198308-199807

main65505-89104iLN56,65,YN55,56,57,58,67..T1..ARL198608-198808

65580POST ASSY, SIDE PANEL REAR END, LH

main65506-89101iLN5#,65,67,RN67,YN50,51,55,57,58,67..RCB..(DLX,STD)..SA198308-199807

main65506-89102iLN56,65,YN57,58,67..TW..ARL198308-199807

main65506-89104iLN56,65,YN55,56,57,58,67..T1..ARL198608-198808

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-89165iLN55,56,YN55..T3198308-199807

main65600-89167iLN50,51,RN50,YN50,52..CBU198308-198609

sub65600-89268

main65600-89168iLN55,56,YN57..5F..DLX..GEN198308-198609

W/*WAM

sub65600-89279

main65600-89169iYN57..SR5198309-198609

sub65600-89274

main65600-89180iYN55,56..T1..(EUR,GEN,ME,SA)..CBU198308-198611

sub65600-89263

main65600-89181iYN55,57..LHD..RCB..DLX198308-198609

W/*WAM

sub65600-89275

main65600-89181iLN55,56,YN57..RCB..SR5198308-198609

sub65600-89275

main65600-89182iLN55,56,YN55,57..STD..ARL..CBU198308-198312

main65600-89193iLN60,YN60..4F198308-198407

main65600-89194iLN65,YN65..STD..ARL..CBU198308-198312

main65600-89195iYN60..DLX198308-198609

W/*WAM

sub65600-89280

main65600-89196iYN65..SR5198309-198312

main65600-89201iLN65,YN65..RCB..(GEN,ME,SA)..CBU198308-198407

main65600-89202iYN65,67..RCB..ME198308-198609

W/*WAM

sub65600-89281

main65600-89204iLN55,56,RN55,YN55,57..TW..(EUR,GEN,ME)198312-199807

main65600-89205iRN55,YN55,57..TW..ME198312-198609

W/*WAM

sub65600-89282

main65600-89206iLN55,YN57..TW..ARL198312-198408

main65600-89208iLN65,YN65,67..TW..(GEN,ME)198312-199807

sub65600-89278

main65600-89209iLN65..TW..ARL198312-198408

main65600-89210iLN65,YN65..EUR198308-198407

main65600-89221iLN56..LHD..RCB..EUR..CBU;LN55,56,YN55,57..RCB..ARL..CBU198401-198608

sub65600-89271

main65600-89222iYN57..SR5..ARL198401-198608

sub65600-89270

main65600-89223iLN65,YN65..RCB..ARL..CBU198401-198407

main65600-89224iYN65,67..SR5198401-198608

sub65600-89272

main65600-89244iLN56,YN57,58..TW..ARL198408-198808

main65600-89244iLN55,YN57..TW..ARL198404-198408

DUBLE WALL DECK

main65600-89245iLN65,YN65..TW..ARL198408-198808

main65600-89245iLN65..TW..ARL198404-198408

DUBLE WALL DECK

main65600-89253iLN65..XTR..GEN198407-198609

sub65600-89276

main65600-89254iLN65,YN65..RCB..(GEN,ME,SA)..CBU198407-198609

sub65600-89277

main65600-89255iLN65,YN65,67..RCB..(EUR,SA)198407-198608

sub65600-89265

main65600-89256iLN65,YN65,67..RCB..ARL..CBU198407-198608

sub65600-89273

main65600-89261iLN65,YN65..TW..EUR198508-198608

sub65600-89266

main65600-89262iYN65..TW..SA198501-198508

sub65600-89266

main65600-89263iLN56,RN55,YN55,57..RCB..(DLX,STD)..(GEN,ME)198608-199807

*GIS

main65600-89263iLN56,RN55,YN55,57..RCB..(DLX,STD)..(GEN,ME)198611-199807

main65600-89264iLN56..TW..EUR198608-199807

*GIS

main65600-89265iLN65,67,RN67,YN67..RCB..(EUR,SA)198608-199807

main65600-89266iLN65,YN67..TW..EUR198608-199807

main65600-89267iYN67..TW..SA198608-198906

main65600-89268iLN56,YN57..DLX..GEN198608-199807

*GIS

main65600-89268iLN51,RN50,YN50,52..GEN,ME198609-199807

main65600-89269iLN65,YN67..DLX..EUR198608-199807

main65600-89270iYN57,58..SR5..ARL198608-198808

main65600-89271iLN56,YN55,56,57,58..RCB..ARL198608-199807

main65600-89272iLN65,YN67..SR5198608-198808

main65600-89273iLN65,YN67..RCB..ARL198608-198808

main65600-89274iYN57..SR5..GEN198609-199807

main65600-89274iYN57..SR5..GEN198608-198609

*GIS

main65600-89275iLN56..SR5198608-198609

*GIS,W/*WAM

main65600-89275iLN56..SR5198608-199807

*GIS

main65600-89275iLN56..SR5198609-199807

W/*WAM

main65600-89276iLN65..XTR..GEN198609-199807

main65600-89276iLN65..XTR..GEN198608-198609

*GIS

main65600-89277iLN65,YN67..RCB..(GEN,ME)198609-199807

main65600-89277iLN65,YN67..RCB..(GEN,ME)198608-198609

*GIS

main65600-89278iLN65,YN67..TW..(GEN,ME)198609-199807

main65600-89278iLN65,YN67..TW..(GEN,ME)198608-198609

*GIS

main65600-89279iLN56,YN57..DLX..GEN198608-199807

*GIS,W/*WAM

main65600-89279iRN50,YN52198609-199807

W/*WAM

main65600-89280iLN65..XTR..GEN198608-198609

*GIS,W/*WAM

main65600-89280iLN65..XTR..GEN198609-199807

W/*WAM

main65600-89281iYN67..RCB..ME198608-198609

*GIS,W/*WAM

main65600-89281iYN67..RCB..ME198609-199807

W/*WAM

main65600-89282iRN55,YN57..TW..ME198609-199807

W/*WAM

main65600-89282iRN55,YN57..TW..ME198608-198609

*GIS,W/*WAM

65616REINFORCEMENT, SIDE PANEL

main65545-89101iLN55,56,57,RN55,58,YN55,56,57,58..T1..RCB..(EUR,GEN,ME,SA)..CBU198308-199807

main65545-89102iLN65,YN65..RCB..CBU198308-199807

65621SKIRT, SIDE PANEL, FRONT RH

main65621-89113iLN50,51,RN50,YN50,51,52..(4F,4H,5F)..CBU198308-199807

main65621-89114iYN57..XTR..SR5198308-199807

W/*WAM

main65621-89115iLN55,56,57,RN55,YN55,56,57,58..T1..RCB..(DLX,STD)..CBU198308-199807

main65621-89116iLN55,56,YN57..RCB..SR5198308-199807

main65621-89116iRN55,YN55,57..RCB..ME198308-199807

W/*WAM

main65621-89117iLN60,YN60..4F198308-198407

main65621-89118iYN65,67..RCB..ME198308-199807

W/*WAM

main65621-89119iLN65,YN65,67..XTR198309-199807

main65621-89119iYN60..DLX198308-198608

W/*WAM

main65621-89126iLN65,YN65..RCB..CBU198308-198407

main65621-89127iLN55,56,RN55,YN55,57,58..TW198312-199807

main65621-89128iRN55,YN55,57..TW..ME198312-199807

W/*WAM

main65621-89133iLN60,YN60,62..RCB198407-198608

main65621-89134iLN65,67,RN67,YN65,67..RCB..CBU198407-199807

65622SKIRT, SIDE PANEL, FRONT LH

main65622-89113iLN50,51,RN50,YN50,51,52..(4F,4H,5F)..CBU198308-199807

main65622-89114iLN55,56,YN57..XTR..DLX198308-199807

W/*WAM

main65622-89115iRN58..SR5198308-199807

main65622-89116iYN55,57..LHD..RCB..DLX198308-199807

W/*WAM

main65622-89116iLN55,56,YN57..RCB..SR5198308-199807

main65622-89117iLN60,YN60..4F198308-198407

main65622-89118iYN65,67..RCB..ME198308-199807

W/*WAM

main65622-89119iYN60..DLX198308-198608

W/*WAM

main65622-89119iLN65,YN65,67..XTR198309-199807

main65622-89126iLN65,YN65..RCB..CBU198308-198407

main65622-89127iLN55,56,RN55,YN55,57,58..TW198312-199807

main65622-89128iRN55,YN55,57..TW..ME198312-199807

W/*WAM

main65622-89133iLN60,YN60,62..RCB198407-198608

main65622-89134iLN65,67,RN67,YN65,67..RCB..CBU198407-199807

65628BRACKET, FUEL INLET HOSE PROTECTOR, UPPER

main65628-89105iRN50,55,YN50,52,55,57..RCB..ME198308-199807

main65628-89106iYN60,65,67..RCB..ME198308-199807

65629BRACKET, FUEL INLET HOSE PROTECTOR, SIDE

main65629-89105iRN50,55,YN50,52,55,57,60,65,67..RCB..ME198308-199807

65631SKIRT, SIDE PANEL, REAR RH

main65607-89103iYN65..5F..GEN198407-198508

*SA

sub65607-89104

main65607-89103iLN65,YN65..EUR198308-198608

sub65607-89104

main65607-89104iLN65,YN67..TW..(EUR,SA)198608-199807

main65607-89105iLN65,YN67..TW..(EUR,SA)198608-198708

sub65607-89104

main65607-89106iLN65,YN67..DLX..EUR198608-199807

main65623-89111iLN56,YN57..DLX..GEN198308-198612

sub65623-89126

main65623-89112iLN55,56,YN57..5F..DLX..GEN198308-198612

W/*WAM

sub65623-89127

main65623-89112iYN57..XTR..SR5198309-198612

sub65623-89127

main65623-89114iLN56..RCB..EUR..CBU;LN56,RN55,YN55,57..T1..RCB..(DLX,STD)..(ARL,GEN,ME)198308-198612

sub65623-89128

main65623-89115iYN55..TW..ME198308-198612

W/*WAM

sub65623-89129

main65623-89115iLN55,56,YN57..RCB..SR5198308-198612

sub65623-89129

main65623-89117iLN60,YN60,62..RCB198308-198612

sub65623-89130

main65623-89118iYN60..DLX198308-198608

W/*WAM

sub65623-89131

main65623-89118iYN65,67..SR5198309-198612

sub65623-89131

main65623-89120iLN65,YN65,67..RCB..(ARL,GEN,ME)198308-199807

sub65623-89132

main65623-89121iYN65,67..RCB..ME198308-198612

W/*WAM

sub65623-89133

main65623-89126iLN56..SR5198608-199807

*GIS

main65623-89127iYN57..SR5..GEN198608-199807

*GIS

main65623-89127iYN57..SR5..GEN198608-199807

*GIS,W/*WAM

main65623-89128iLN56,RN55,YN55,57..TW..(EUR,GEN,ME)198608-199807

*GIS

main65623-89129iRN55,YN57..ME198608-199807

*GIS,W/*WAM

main65623-89130iLN65..XTR..GEN198608-199807

*GIS

main65623-89131iLN65..XTR..GEN198608-199807

*GIS,W/*WAM

main65623-89131iLN65,YN67..XTR..(ARL,GEN)198612-199807

main65623-89132iLN65,YN67..RCB..(ARL,GEN,ME)198608-199807

*GIS

main65623-89133iYN67..RCB..ME198608-199807

*GIS,W/*WAM

65632SKIRT, SIDE PANEL, REAR, LH

main65608-89106iLN65,YN65..TW..EUR198308-198608

sub65608-89108

main65608-89106iYN65..5F..GEN198407-198508

*SA

sub65608-89108

main65608-89108iLN65,YN67..TW..(EUR,SA)198608-199807

main65608-89109iYN67..TW..SA198608-198708

sub65608-89108

main65608-89110iLN65,YN67..DLX..EUR198608-199807

main65624-89111iLN56,YN57..DLX..GEN198308-198612

sub65624-89127

main65624-89112iLN56,YN57..DLX..GEN198308-198612

W/*WAM

sub65624-89128

main65624-89112iYN57..XTR..SR5198309-198612

sub65624-89128

main65624-89114iLN55,56,RN55,YN55,56,57..T1..RCB..(DLX,STD)..CBU198308-198612

sub65624-89129

main65624-89115iYN55..TW..ME198308-198612

W/*WAM

sub65624-89130

main65624-89115iLN55,56,YN57..RCB..SR5198308-198612

sub65624-89130

main65624-89118iLN65..XTR..GEN198308-198612

sub65624-89131

main65624-89119iYN60..DLX198308-198608

W/*WAM

sub65624-89132

main65624-89119iLN65,YN67..XTR..(ARL,GEN)198309-198612

sub65624-89132

main65624-89121iLN65,YN67..TW..(ARL,GEN,ME,SA)198308-199807

sub65624-89133

main65624-89122iYN65,67..RCB..ME198308-198612

W/*WAM

sub65624-89134

main65624-89127iLN56,YN56,57..XTR..DLX198608-199807

*GIS

main65624-89128iLN56,YN57..DLX..GEN198608-199807

*GIS,W/*WAM

main65624-89128iYN57..SR5..GEN198608-199807

*GIS

main65624-89129iLN56,RN55,YN55,57..TW..(EUR,GEN,ME)198608-199807

*GIS

main65624-89130iRN55,YN57..ME198608-199807

*GIS,W/*WAM

main65624-89130iLN56..SR5198608-199807

*GIS

main65624-89131iLN65..XTR..GEN198608-199807

*GIS

main65624-89132iLN65..XTR..GEN198608-199807

*GIS,W/*WAM

main65624-89132iLN65,YN67..XTR..(ARL,GEN)198612-199807

main65624-89133iLN65,YN67..TW..(ARL,GEN,ME,SA)198608-199807

*GIS

main65624-89134iYN67..RCB..ME198608-199807

*GIS,W/*WAM

65635PLATE, REAR WHEEL HOUSE

main65631-89108iLN60,65,67,RN67,YN60,62,65,67..T1..CBU198308-199807

FR

main65635-89107iLN60,65,67,RN67,YN60,62,65,67..T1..CBU198308-199807

RR

65635APANEL, WHEEL HOUSE, REAR RH

main65635-89104iYN58..4F;YN58..T1..(SR5,STD)..CBU;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..T1..(4F,4FC,4H,5F)..CBU198308-199807

main65635-89105iLN60,65,67,RN67,YN60,62,65,67..T1..CBU198308-199807

65636APANEL, WHEEL HOUSE, REAR LH

main65636-89104iYN58..4F;YN58..T1..(SR5,STD)..CBU;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..T1..(4F,4FC,4H,5F)..CBU198308-199807

main65636-89105iLN60,65,67,RN67,YN60,62,65,67..T1..CBU198308-199807

65671BRACE, SIDE PANEL SKIRT, FRONT

main65671-89105iLN50,51,60,RN50,YN50,51,52,60,62..RCB..(4F,4H,5F)..CBU198308-199807

65673BRACE, SIDE PANEL SKIRT, REAR

main65608-89104iYN58..4F;YN58..(SR5,STD)..CBU;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..(T1,TW)..(4F,4FC,4H,5F)..CBU198308-199807

RH

main65609-89102iYN58..4F;YN58..(SR5,STD)..CBU;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..(T1,TW)..(4F,4FC,4H,5F)..CBU198308-199807

LH

main65673-89104iLN60,65,67,RN67,YN60,62,65,67..(T1,TW)..CBU198308-199807

RH

main65674-89104iLN60,65,67,RN67,YN60,62,65,67..(T1,TW)..CBU198308-199807

LH

65826PANEL, REAR BODY SIDE, INNER RH

main65826-89103iYN57,58..SR5..ARL198401-198808

main65826-89104iLN55,56,YN55,56,57,58..RCB..ARL..CBU198401-198808

main65826-89105iLN65,YN65,67..XTR198401-199807

main65826-89106iLN65,YN65,67..RCB..ARL..CBU198401-199807

main65826-89107iLN55,56,YN57,58..TW..ARL198404-198808

main65826-89108iLN65,YN65..TW..ARL198404-199807

65827PANEL, REAR BODY SIDE, INNER LH

main65827-89103iYN57,58..SR5..ARL198401-198808

main65827-89104iLN55,56,YN55,56,57,58..RCB..ARL..CBU198401-198808

main65827-89105iLN65,YN65,67..XTR198401-199807

main65827-89106iLN65,YN65,67..RCB..ARL..CBU198401-199807

main65827-89107iLN55,56,YN57,58..TW..ARL198404-198808

main65827-89108iLN65,YN67..TW..(ARL,SA)198404-198906

7751

9015960232

main90159-60232

9017908143

main90179-08143

9018906050

main90189-06050

9054009060

main90540-09060

9095001353

main90950-01353

9095001433

main90950-01433

9095001567

main90950-01567

9163140614

main91631-40614

9327018016

main93270-18016

9327018025

main93270-18025

9338515010

main93385-15010

9411040800

main94110-40800

39 parts on this diagram · 5 diagrams in section
