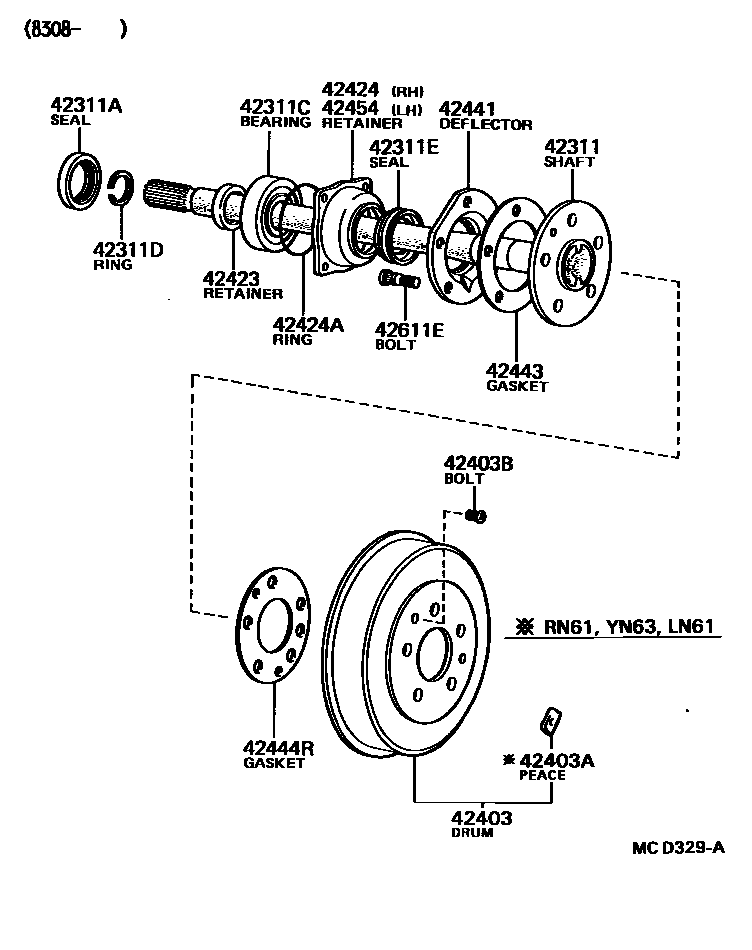

Toyota HILUX — REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42311-35100iLN6#,YN6#198308-198508

sub42311-35140

main42311-35110iLN5#,RN5#,YN5#198308-198808

sub42311-35430

sub42421-34010

sub90313-54001

sub90363-40068

main42311-35111iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198808-199807

sub42311-35440

sub42421-34010

sub90313-54001

sub90363-40068

main42311-35140iLN65,67,RN67,YN60,62,65,67198508-199807

sub42311-35330

sub42421-35050

sub90313-54001

sub90363-40068

main42311-35150iLN61,RN61,YN63198508-198903

sub42311-35460

sub42421-35050

sub90313-54001

sub90363-40068

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-50001iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

sub90310-50006

42311CBEARING(FOR REAR AXLE SHAFT)

main90363-40020iLN6#,YN6#198308-198508

main90363-40020iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198508-199807

KOYO

main97144-06308iLN5#,RN5#,YN5#198308-198603

NACHI

sub90363-40020

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-36045iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-48001iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42403DRUM SUB-ASSY, REAR BRAKE

main42431-25070iLN65,67,RN67,YN67198808-199807

main42431-35030iYN57..DLX,STD;LN5#,YN50,52,55,56;YN57..SR5..(GEN,SA)198308-198508

sub42431-35130

main42431-35060iLN6#,YN6#198308-198508

sub42431-25070

main42431-35080iYN57..SR5..ARL198308-198508

sub42431-35120

main42431-35090iLN65,YN60,62,65,67198508-198808

sub42431-35060

main42431-35110iLN61,RN61,YN63198508-198808

main42431-35120iYN57,58..SR5..ARL198508-198808

sub42431-35151

main42431-35130iYN58..TW;YN58..RCB;YN57..DLX,STD;YN57..SR5..(GEN,SA);LN5#,RN5#,YN50,51,52,55,56198508-198811

sub42431-35190

main42431-35180iLN61,RN61,YN63198808-199407

main42431-35190iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198811-199807

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iLN61,RN61,YN63198511-198903

10G,10G

main90937-01118iLN61,RN61,YN63198511-198903

20G,20G

main90937-01119iLN61,RN61,YN63198511-198903

30G,30G

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035iLN5#,RN5#,YN5#198308-198811

42423RETAINER, REAR AXLE BEARING, INNER

main42423-20010iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42421-35030iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42424ARING, O (FOR BEARING RETAINER SET)

main90301-88077iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42441DEFLECTOR, BRAKE DRUM OIL

main42441-26010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main42441-35020iLN60,61,65,RN6#,YN6#198308-199807

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-30010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main42443-55020iLN60,61,65,RN6#,YN6#198308-199807

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35020iLN5#,YN5#198308-198508

sub42444-35060

main42444-35040iLN6#,YN6#198308-198508

sub42444-35050

main42444-35050iLN61,65,RN6#,YN6#198508-199807

main42444-35060iLN5#,RN5#,YN5#198508-198811

main42444-35070iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198811-199807

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42421-35030iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02034iLN6#,YN6#198308-198411

sub90942-02052

main90942-02037iLN5#,RN5#,YN5#198308-198808

sub90942-02049

main90942-02049iLN5#,RN58,YN5#198808-199807

main90942-02052iLN60,61,65,RN6#,YN6#198411-199807

16 parts on this diagram · 1 diagram in section
