Toyota HILUX — PARTIAL ENGINE ASSEMBLY

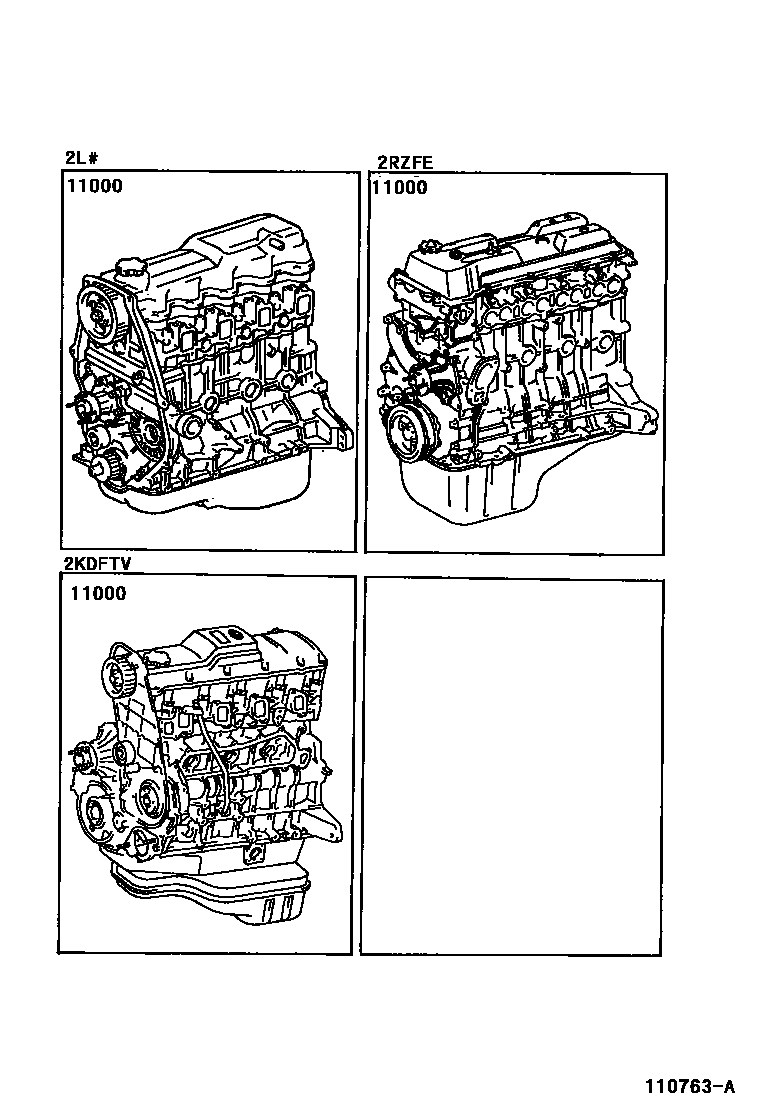

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-30080i200108-200206

main19000-30081i200206-200508

main19000-30090i200108-200206

main19000-30091i200206-200508

main19000-54851i199708-199805

main19000-5B460i199708-199805

main19000-5B470i199708-199805

main19000-5B560i199805-200108

main19000-5B570i199805-200108

main19000-5B580i199805-200108

main19000-75400i199708-199804

main19000-75401i199804-200108

1 parts on this diagram · 1 diagram in section
