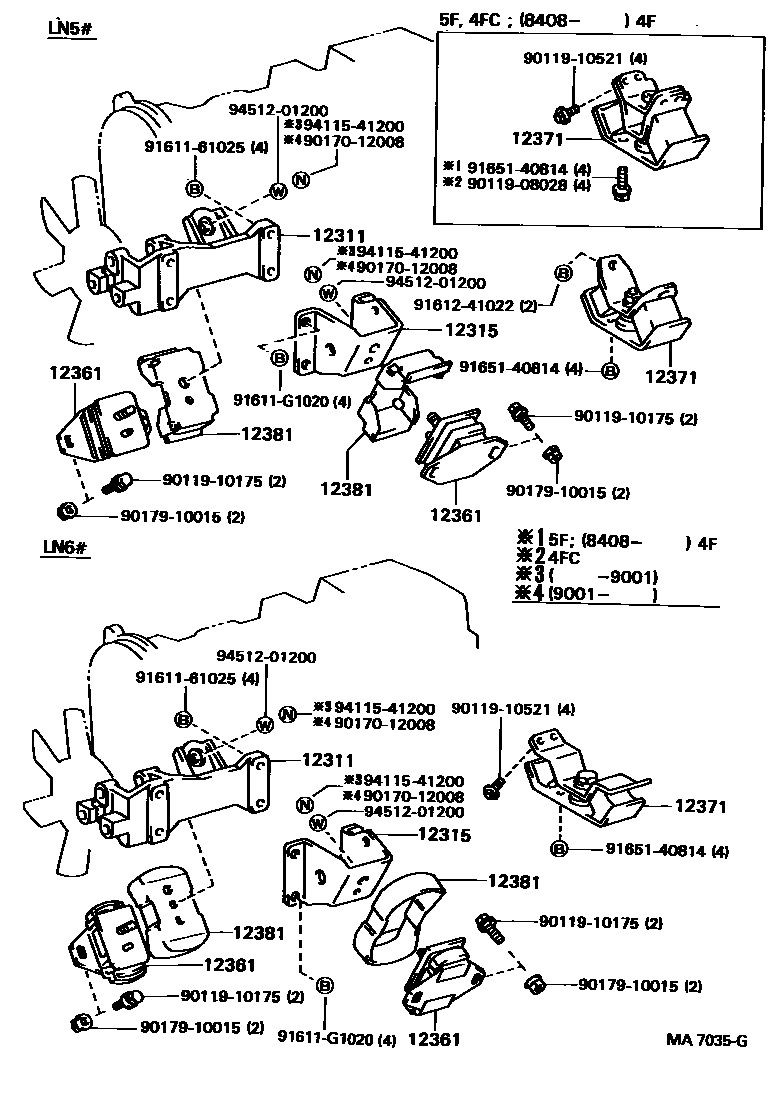

Toyota HILUX — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-35121i22R..RN50,55;22R..RN58..SR5198601-199807

sub12301-35122

main12301-35190i22REC..RN61198712-198903

sub12301-35210

main12301-35210i22R..RN67199407-199807

main12311-54090iL,2L..LN5#,6#198308-199508

sub12311-54091

main12311-54091i2L,3L..LN5#,67199508-199807

main12311-71010i4Y..YN58..4F;4Y..YN58..SR5;1Y#,2Y#,3Y,4YC..YN5#..4F,4FC,4H,5F198308-199807

main12311-73010i3Y,4Y..YN6#198308-198604

sub12311-73011

main12311-73011i3Y,4Y,4YE..YN6#198604-199807

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-35050i22R..RN50,55;22R..RN58..SR5198601-199807

sub12302-35051

main12302-35070i22REC..RN61198712-198903

sub12302-35120

main12302-35120i22R..RN67199407-199807

main12312-54020iL,2L..LN5#,6#198308-198608

sub12312-54021

main12312-54021i2L..LN5#,6#198608-199807

main12315-71010i4Y..YN58..4F;4Y..YN58..SR5;1Y#,2Y#,3Y,4YC..YN5#..4F,4FC,4H,5F198308-199807

main12315-73010i3Y,4Y..YN6#198308-199807

main12315-73020i4YE..YN63198608-198903

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-35040i1Y#,2Y,3Y..YN5#,6#198308-198411

TOKAI GOMU

sub12361-35050

main12361-35050i4YE..YN63198608-198903

RH

main12361-35050i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

TOYO GOMU

main12361-54110iL,2L..LN5#198308-199001

sub12361-54111

main12361-54111i2L,3L..LN5#199001-199807

main12361-54120i2L..LN6#198308-199001

sub12361-54121

main12361-54121i2L,3L..LN6#199001-199807

main12362-73020i4YE..YN63198608-198903

LH

sub12362-73021

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31040i1Y#,2Y#..YN50,51,55,56..4F,4H198308-199108

main12371-34030i2Y,3Y,4YC..YN52,56,57,58..4F,4FC,5F198308-199807

main12371-35020i3Y,4Y..YN6#198308-198608

main12371-35041i4YE..YN63198608-198903

main12371-35050i4Y..YN6#198608-199807

main12371-35070i22R..RN58..SR5199407-199807

main12371-54060i2L,3L..LN6#198308-199807

12381STABILIZER, ENGINE MOUNTING

main12381-54010iL,2L,3L..LN5#198308-199807

main12381-54020i2L,3L..LN6#198308-199807

main12381-73010i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y..YN51,55,56,57..4F,4H,5F198308-199807

main12381-73040i4Y..YN67199004-199807

9011908028

main90119-08028

9011910175

main90119-10175

9011910521

main90119-10521

9017012008

main90170-12008

9017910015

main90179-10015

9161161025

main91611-61025

91611G1020

main91611-G1020

9161241022

main91612-41022

9165140814

main91651-40814

9411541200

main94115-41200

9451201200

main94512-01200

16 parts on this diagram · 5 diagrams in section
