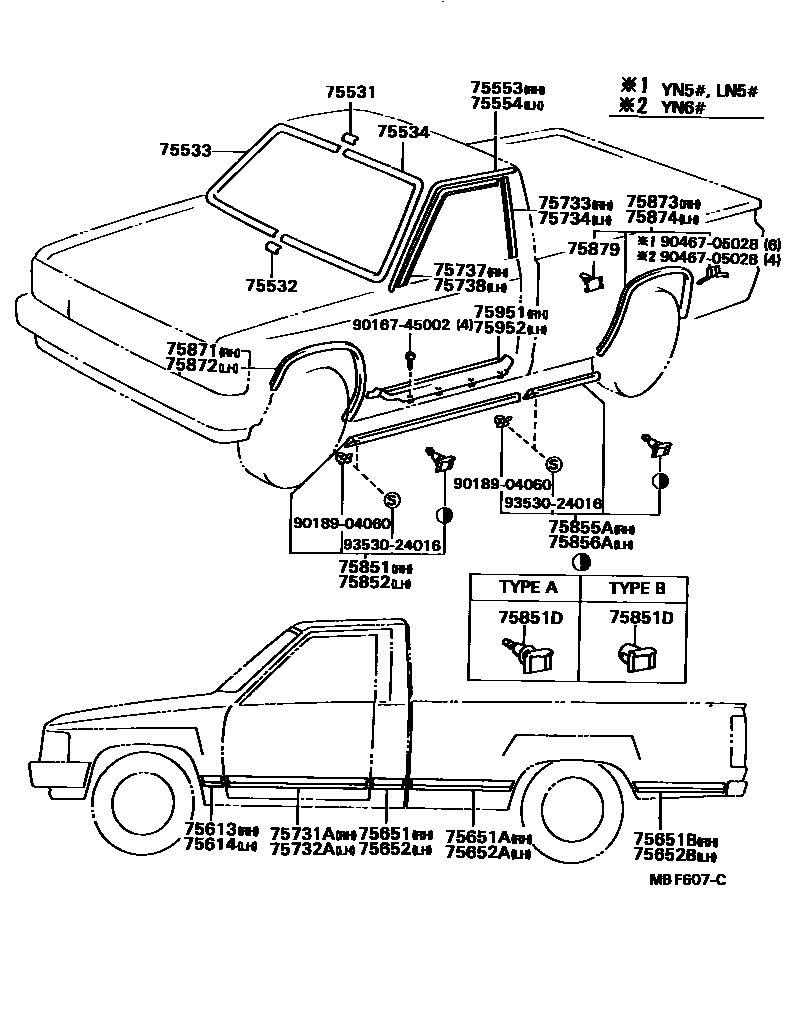

Toyota HILUX — MOULDING

0001 1 0002 1 0003 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-89103iLN60,61,YN60,63..ARL198403-198903

main75531-89104iYN60,63..SR5..ME198403-198903

main75531-89104iLN60,YN60..ARL198403-198405

CHROME PLATED

main75581-10010iLN56..LHD..RCB..EUR..CBU;LN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..(T1,T3,TW)..(ARL,GEN,ME)198308-199807

main75581-10010iLN51,56..5F198404-198408

THAILAND SPEC

75532MOULDING, WINDSHIELD, LOWER

main75535-89101iLN60,61,YN60,63..ARL198403-198903

main75535-89102iYN60,63..SR5..ME198403-198903

main75535-89102iLN60,YN60..ARL198403-198405

CHROME PLATED

main75581-10010iLN55,56,65,YN55,57,65..ARL198308-199807

main75581-10010iLN51,56..5F198404-198408

THAILAND SPEC

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-89105iRN50,55,YN52,57,67..DLX..ME198308-199807

main75533-89105iLN51,56..5F198404-198408

THAILAND SPEC

main75533-89106iLN60,61,YN60,63..ARL198403-198903

main75533-89107iRN61198403-199807

main75533-89107iLN60,YN60..ARL198403-198405

CHROME PLATED

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-89103iLN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)198308-199807

main75534-89103iLN51,56..5F198404-198408

THAILAND SPEC

main75534-89104iLN60,61,YN60,63..ARL198403-198903

main75534-89105iYN60,63..SR5..ME198403-198903

main75534-89105iLN60,YN60..ARL198403-198405

CHROME PLATED

75553MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-89108iLN55,56,YN57..RCB..(DLX,SR5)..(GEN,SA)198308-198411

main75551-89109iLN50,55,6#,YN50,55,57,6#..RCB..GEN198308-198411

CHROME PLATED

main75551-89109iLN51,56..5F..STD198404-198411

THAILAND SPEC,CHROME PLATED

main75551-89110iLN55,YN57,65..XTR198309-198504

main75551-89111iLN55,YN57,65..XTR198309-198504

CHROME PLATED

main75551-89112iLN57,RN58,67,YN67..TW..SA198608-199807

main75551-89112iLN65..TW..DLX198508-199807

BLACK

main75551-89113iRN55,YN57,67..TW..DLX..ME198708-199807

CHORME PLATED

main75551-89113iLN55,56,65,RN55,YN55,57,65,67..TW..(ARL,GEN,ME)198312-199807

CHOME PLATED

main75551-89114iLN60,61,YN60,63..ARL198403-198903

main75551-89115iYN60,63..SR5..ME198403-198903

main75551-89115iLN60,YN60..ARL198403-198405

CHROME PLATED

main75551-89116iLN57,65,67,RN58,67,YN51,58,67..RCB..(DLX,SR5)..SA198411-199807

BLACK

main75551-89117iYN55..ARL..IV198411-199807

CHOME PLATED

main75551-89117iYN55..ARL..IV198411-198708

CHROME PLATED

main75551-89117iYN57,58..SR5..SA198411-199807

CHR0ME PLATED

main75551-89118iLN56,65,YN57,58,65,67..XTR..(ARL,GEN)198504-199807

BLACK

main75551-89119iLN56,65,YN57,58,65,67..XTR..(ARL,GEN)198504-199807

CHROME PLATED

75554MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-89108iLN55,56,YN57..RCB..(DLX,SR5)..(GEN,SA)198308-198411

main75552-89109iYN57..SR5..SA198308-198411

CHROME PLATED

main75552-89109iLN51,56..5F..STD198404-198411

THAILAND SPEC,CHROME PLATED

main75552-89110iLN55,YN57,65..XTR198309-198504

main75552-89111iLN55,YN57,65..XTR198309-198504

CHROME PLATED

main75552-89112iLN65..TW..DLX198508-199807

BLACK

main75552-89112iLN57,RN58,67,YN67..TW..SA198608-199807

main75552-89113iLN56,65,YN55,57,58,67..TW..(ARL,GEN)198312-199807

CHROME PLATED

main75552-89114iLN60,61,YN60,63..ARL198403-198903

main75552-89115iLN60,YN60..ARL198403-198405

CHROME PLATED

main75552-89115iYN60,63..SR5..ME198403-198903

main75552-89116iLN57,65,67,RN58,67,YN51,58,67..RCB..(DLX,SR5)..SA198411-199807

BLACK

main75552-89117iYN55..ARL..IV198411-199807

CHROME PLATED

main75552-89118iLN56,65,YN57,58,65,67..XTR..(ARL,GEN)198504-199807

BLACK

main75552-89119iLN56,65,YN57,58,65,67..XTR..(ARL,GEN)198504-199807

CHROME PLATED

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75615-89105iYN50,52,55,57..ME198408-198508

main75615-89107iLN5#,RN5#,YN50,52,55,57,58..T1..(GEN,ME,SA)..CBU198508-199807

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75616-89105iYN50,52,55,57..ME198408-198508

main75616-89107iLN56,RN55,YN55,57..TW..(GEN,ME)198508-199807

75651MOULDING, QUARTER, OUTSIDE RH

main75651-89109iYN50,52,55,57..RCB..ME198408-198508

main75651-89110iYN55,57..TW..ME198408-198508

main75651-89113iYN57..SA198508-199807

main75651-89114iYN57..TW..STD..ME198508-199807

75651AMOULDING, QUARTER OUTSIDE, REAR RH, NO.1

main75653-89122iYN50,52..ME198408-198508

main75653-89124iYN55,57..RCB..ME198408-198508

main75653-89130iLN51,RN50,YN50,52198508-199807

main75653-89132iLN56,57,65,67,RN58,YN55,57,58..T1..RCB..(GEN,SA)..CBU198508-199807

75651BMOULDING, QUARTER OUTSIDE, REAR RH, NO.2

main75653-89123iYN50,52..ME198408-198508

main75653-89125iYN55,57..ME198408-198508

main75653-89131iLN51,YN50198508-199807

main75653-89133iLN56,RN55,YN55,57,58..T1..(GEN,ME,SA)..CBU198508-199807

75652MOULDING, QUARTER, OUTSIDE LH

main75651-89109iYN50,52,55,57..RCB..ME198408-198508

main75651-89113iYN58..4F;YN58..SR5..SA;RN50,55,YN51,52,57..DLX..(ME,SA)198508-199807

main75652-89108iYN55,57..TW..ME198408-198508

main75652-89110iLN56,RN55,YN55,57..TW..(GEN,ME)198508-199807

75652AMOULDING, QUARTER OUTSIDE, REAR LH, NO.1

main75654-89120iYN50,52..ME198408-198508

main75654-89122iYN55,57..RCB..ME198408-198508

main75654-89128iYN51..DLX198508-199807

main75654-89130iYN57..RCB..STD..ME198508-199807

75652BMOULDING, QUARTER OUTSIDE, REAR LH, NO.2

main75654-89121iYN50,52..ME198408-198508

main75654-89123iYN55,57..ME198408-198508

main75654-89129iLN51,RN50,YN50,52198508-199807

main75654-89131iLN56,YN55,57..TW..GEN198508-199807

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-89104iYN50,52,55,57..ME198408-198508

main75731-89106iRN5#,YN50,52,55,57..ME198508-199807

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-89104iYN50,52,55,57..ME198408-198508

main75732-89106iRN50,55,YN52,57..STD..ME198508-199807

75733MOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-89101iLN55,56,65,RN58,YN57,58,65,67..SR5198308-199807

75734MOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-89101iLN55,56,65,RN58,YN57,58,65,67..SR5198308-199807

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-89101iLN55,56,YN57..SR5..GEN198308-198608

main75751-89101iLN56..SR5198608-199807

W/O *VW

main75751-89102iLN55,56,YN57..SR5..GEN198308-199807

W/*VW

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-89101iLN56..SR5198608-199807

W/O *VW

main75752-89101iLN55,56,YN57..SR5..GEN198308-198608

main75752-89102iLN55,56,YN57..SR5..GEN198308-199807

W/*VW

75851MOULDING, ROCKER PANEL, RH

main75850-89101iYN57..SR5..SA198308-199807

main75850-89102iLN55,56,YN57,58..XTR198309-199807

main75850-89103iYN60,65,67..RCB..ME198308-199807

main75850-89104iLN65,YN65,67..XTR..(ARL,GEN)198309-199807

main75850-89109iRN55,YN55,57..TW..DLX198312-199807

main75850-89110iLN60,61,RN61,YN60,63..SR5198403-198903

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75867-89102iLN61,YN50,52,60,63..DLX,SR5198406-199807

TYPE A

main75867-89102iRN61198508-199807

main75867-89103iYN57..SR5..SA198406-198608

TYPE B

75852MOULDING, ROCKER PANEL, LH

main75860-89101iLN55,56,RN50,55,YN50,52,55,57..RCB..(DLX,SR5)..(GEN,ME)198308-199807

main75860-89102iLN55,56,YN57,58..XTR198309-199807

main75860-89103iYN60,65,67..RCB..ME198308-199807

main75860-89104iLN65,YN65,67..XTR..(ARL,GEN)198309-199807

main75860-89109iRN55,YN55,57..TW..DLX198312-199807

main75860-89110iLN60,61,RN61,YN60,63..SR5198403-198903

75855AMOULDING, ROCKER PANEL, REAR RH

main75850-89105iRN50,YN50,52..ME198308-199807

main75850-89106iLN55,56,RN55,YN55,57..RCB..(DLX,SR5)..(GEN,ME)198308-199807

main75850-89107iYN60..DLX198308-199807

main75850-89108iYN65,67..RCB..ME198308-199807

75856AMOULDING, ROCKER PANEL, REAR LH

main75860-89105iLN55,56,YN57,58..XTR198308-199807

main75860-89106iYN57..SR5..SA198308-199807

main75860-89107iLN65,YN65,67..XTR..(ARL,GEN)198308-199807

main75860-89108iYN65,67..RCB..ME198308-199807

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75085-89101iYN67..RCB..ME198308-199807

main75085-89102iLN60,YN6#..(T1,WG)..(DLX,SR5)198308-199807

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75086-89101iYN57..SR5..SA198308-199807

main75086-89102iLN60,YN6#..(T1,WG)..(DLX,SR5)198308-199807

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75087-89101iYN67..RCB..ME198308-199807

main75087-89103iLN65..XTR..GEN198308-199807

main75087-89104iRN55,YN55,57..TW..DLX198312-199807

main75873-89105iLN60,61,RN61,YN60,63..SR5198403-199807

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75088-89101iLN55,56,RN50,55,YN50,52,55,57..T1..(DLX,SR5)..(ARL,GEN,ME)..CBU198308-199807

main75088-89103iYN67..T1..DLX198308-199807

main75088-89104iRN55,YN55,57..TW..DLX198312-199807

main75874-89105iLN60,61,RN61,YN60,63..SR5198403-198903

75879RETAINER, QUARTER OPENING

main75879-89102iLN65,YN67..SR5198403-199807

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-89102-03iLN5#,6#,RN5#,YN5#,6#198308-198608

GRAY,GRAY,TRIM1#

sub67913-89102

main67913-89102-04iLN5#,6#,RN5#,YN5#,6#198308-198608

BLUE,BLUE,TRIM8#

sub67913-89102

main67913-89102-05iLN5#,6#,RN5#,6#,YN5#,6#198608-199807

BEIGE,BEIGE,TRIM4#

sub67913-89102

main67913-89102-06iLN5#,6#,RN5#,YN5#,6#198308-198608

BROWN,BROWN,TRIM4#

sub67913-89102

main67913-89102-13iLN5#,6#,RN5#,6#,YN5#,6#198608-199807

GRAY,GRAY,TRIM1#

sub67913-89102

main67913-89102-14iLN5#,65,67,RN5#,67,YN5#,67198608-199807

BLUE,BLUE,TRIM8#

sub67913-89102

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67913-89102-03iLN5#,6#,RN5#,YN5#,6#198308-198608

GRAY,GRAY,TRIM1#

sub67913-89102

main67913-89102-04iLN5#,6#,RN5#,YN5#,6#198308-198608

BLUE,BLUE,TRIM8#

sub67913-89102

main67913-89102-05iLN5#,6#,RN5#,6#,YN5#,6#198608-199807

BEIGE,BEIGE,TRIM4#

sub67913-89102

main67913-89102-06iLN5#,6#,RN5#,YN5#,6#198308-198608

BROWN,BROWN,TRIM4#

sub67913-89102

main67913-89102-13iLN5#,6#,RN5#,6#,YN5#,6#198608-199807

GRAY,GRAY,TRIM1#

sub67913-89102

main67913-89102-14iLN5#,65,67,RN5#,67,YN5#,67198608-199807

BLUE,BLUE,TRIM8#

sub67913-89102

9016745002

main90167-45002

9018904060

main90189-04060

9046705028

main90467-05028

9353024016

main93530-24016

36 parts on this diagram · 3 diagrams in section
