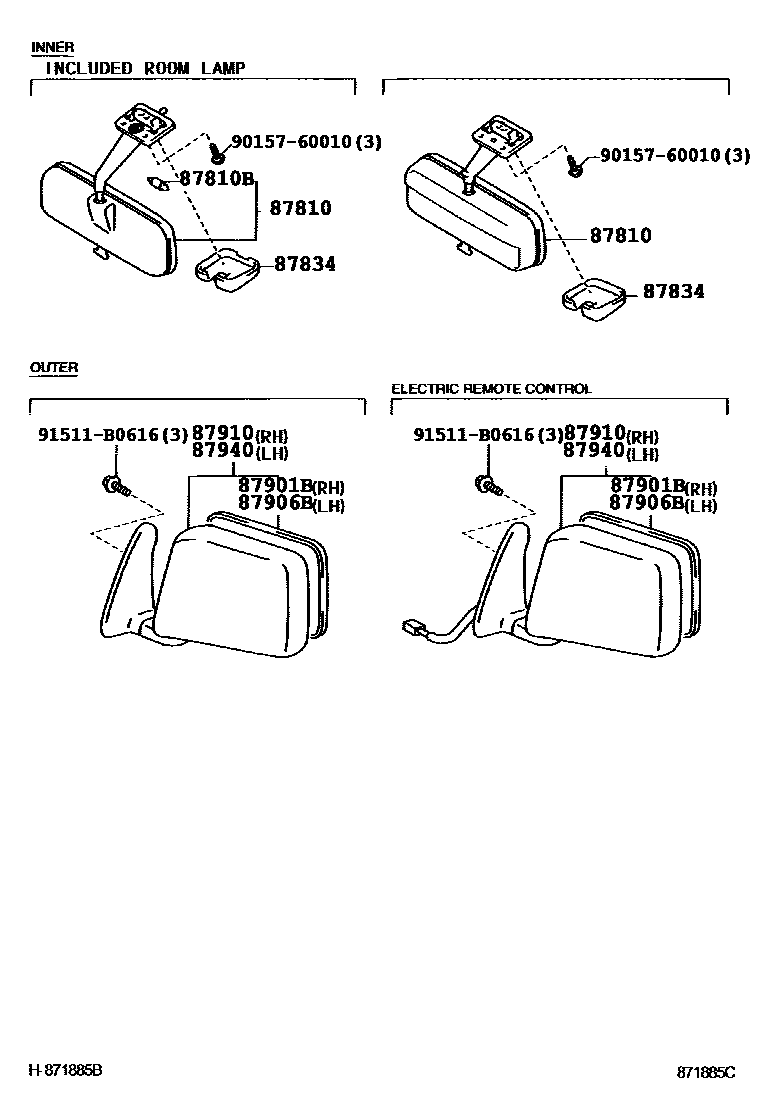

Toyota HILUX — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
MOON MIST,TRIM1#
LT.BLUISH GRAY,TRIM1#
MOON MIST,TRIM1#
LT.BLUISH GRAY,TRIM1#
W(DAY & NIGHT MIRROR ANTI SCATTER),LT.BLUISH GRAY,TRIM1#
MOON MIST,TRIM10
W(DAY & NIGHT MIRROR ANTI SCATTER),LT.BLUISH GRAY,TRIM1#
W(DAY & NIGHT MIRROR ANTI SCATTER),MOON MIST,TRIM1#
87810BBULB, INNER REAR VIEW MIRROR LAMP
12V 5W
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LT.BLUISH GRAY,TRIM1#
MOON MIST,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
W(ELECTRIC REMOTE CONTOROL MIRROR)
W(ELECTRIC REMOTE CONTOROL MIRROR)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
W(ELECTRIC REMOTE CONTOROL MIRROR)
W(ELECTRIC REMOTE CONTOROL MIRROR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
W(ELECTRIC REMOTE CONTOROL MIRROR)
W(ELECTRIC REMOTE CONTOROL MIRROR)
TURKEY SPEC
W(ELECTRIC REMOTE CONTOROL MIRROR)
87940MIRROR ASSY, OUTER REAR VIEW, LH
W(ELECTRIC REMOTE CONTOROL MIRROR)
W(ELECTRIC REMOTE CONTOROL MIRROR)
TURKEY SPEC
W(ELECTRIC REMOTE CONTOROL MIRROR)
9015760010
main90157-60010
91511B0616
main91511-B0616
9 parts on this diagram · 1 diagram in section
MIRROR for Toyota HILUX
This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota HILUX. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
