Toyota HILUX — METER

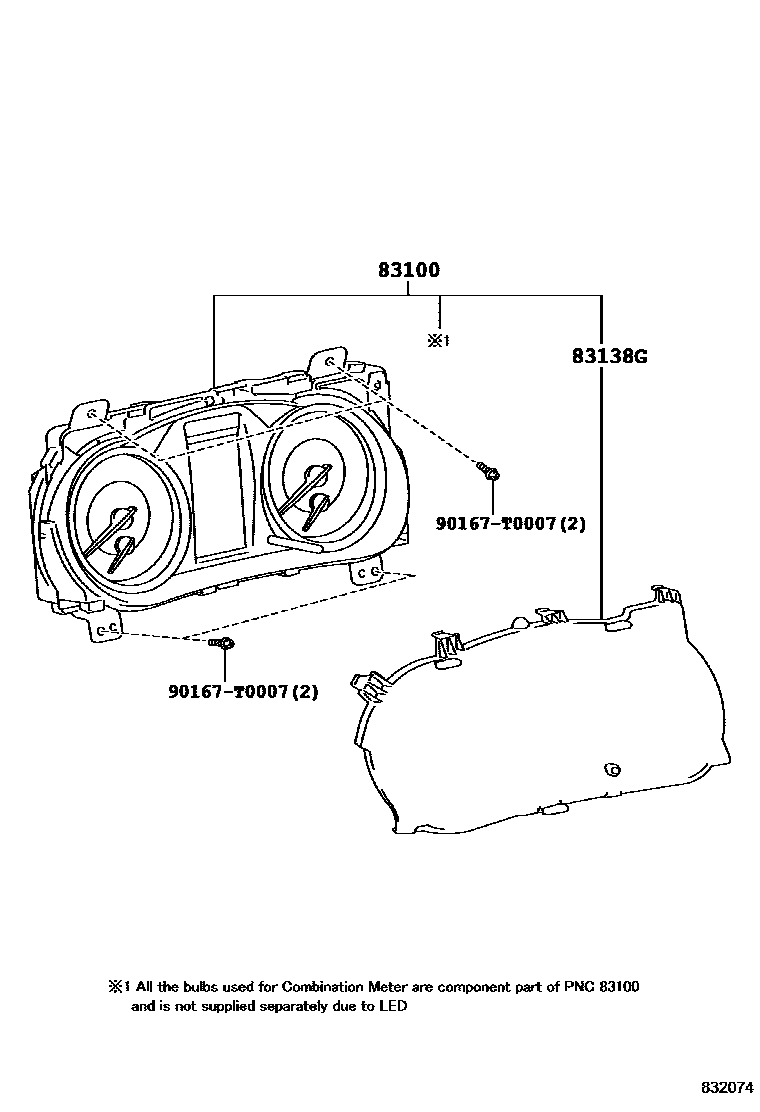

83100METER ASSY, COMBINATION
YAZAKI
YAZAKI
YAZAKI
YAZAKI
YAZAKI
YAZAKI
YAZAKI
YAZAKI
main83800-FC870supersedes 83800-FBR41iGUN125,135..LHD..(SADCB,SASCB,SAXTR)..(S,X); GUN125..RHD..S201604-201807
YAZAKI; YAZAKI,KM/H METER COUNTRIES
main83800-FC871iGUN125..RHD..S; GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..LHD..(SADCB,SASCB,SAXTR)..(S,X)201808-201905
YAZAKI; YAZAKI,KM/H METER COUNTRIES
YAZAKI
YAZAKI
YAZAKI
YAZAKI
main83800-FF530supersedes 83800-FF640iGUN125,135..LHD..(SADCB,SASCB,SAXTR)..6F..DCRE; GUN125..RHD..6F201906-202009
YAZAKI; YAZAKI,KM/H METER COUNTRIES
YAZAKI,RUSSIA & UKRAINE SPEC
main83800-FBQ40iGUN125,135..LHD..SADCB..S..CBU; GUN125..LHD..SADCB..S..CBU; GUN135..SADCB..S201604-201808
ISRAEL SPEC(EURO 6 REGULATION); RUSSIA & UKRAINE SPEC; TURKEY SPEC(EURO 5 REGULATION)
main83800-FBR60supersedes 83800-FC591iGUN125,135..LHD..(SADCB,SAXTR)..6F..(H,M); GUN125..RHD..6F..(H,M)201604-201807
YAZAKI,KM/H METER COUNTRIES&TOYOTA STOP & START SYSTEM-WITH; YAZAKI,TOYOTA STOP & START SYSTEM-WITH
main83800-FBR61supersedes 83800-FC891iGUN125,135..LHD..(SADCB,SAXTR)..6F..(H,M); GUN125..RHD..6F..(H,M)201808-201905
YAZAKI,KM/H METER COUNTRIES&TOYOTA STOP & START SYSTEM-WITH; YAZAKI,TOYOTA STOP & START SYSTEM-WITH
RUSSIA & UKRAINE SPEC; TURKEY SPEC(EURO 5 REGULATION)
YAZAKI,TOYOTA STOP & START SYSTEM-WITH
YAZAKI,TOYOTA STOP & START SYSTEM-WITH
YAZAKI,TOYOTA STOP & START SYSTEM-WITH
YAZAKI,TOYOTA STOP & START SYSTEM-WITH
YAZAKI,RUSSIA & UKRAINE SPEC
YAZAKI,KM/H METER COUNTRIES&TOYOTA STOP & START SYSTEM-WITH; YAZAKI,TOYOTA STOP & START SYSTEM-WITH
YAZAKI,KM/H METER COUNTRIES&TOYOTA STOP & START SYSTEM-WITH; YAZAKI,TOYOTA STOP & START SYSTEM-WITH
YAZAKI; YAZAKI,KM/H METER COUNTRIES
YAZAKI; YAZAKI,KM/H METER COUNTRIES
main83800-FC890supersedes 83800-FC591iGUN125,135..LHD..(SADCB,SAXTR)..6F..(H,M); GUN125..RHD..6F..(H,M)201604-201807
YAZAKI; YAZAKI,KM/H METER COUNTRIES
main83800-FC891supersedes 83800-FC591iGUN125,135..LHD..(SADCB,SAXTR)..6F..(H,M); GUN125..RHD..6F..(H,M)201808-201905
YAZAKI; YAZAKI,KM/H METER COUNTRIES
YAZAKI,KM/H METER COUNTRIES&PREMIUM FULL PACKAGE(HOOD MOLD = BLACK); YAZAKI,PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)
ISRAEL SPEC(EURO 6 REGULATION)&PREMIUM FULL PACKAGE(HOOD MOLD = BLACK); UKRAINE SPEC(EURO 6 REGULATION)&PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)
YAZAKI,KM/H METER COUNTRIES&PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TOYOTA STOP &START SYSTEM-WITH; YAZAKI,PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TOYOTA STOP & START SYSTEM-WITH
YAZAKI,PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)
YAZAKI,"BLACK RALLY EDITION"*(B); YAZAKI,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM
YAZAKI,PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)
YAZAKI,PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TOYOTA STOP & START SYSTEM-WITH
YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT
YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY); YAZAKI,ISRAEL SPEC(EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI; YAZAKI,ISRAEL SPEC(EURO 6 REGULATION)
YAZAKI,"BLACK RALLY EDITION"*(B); YAZAKI,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM
YAZAKI,TURKEY SPEC(EURO 6 REGULATION)
YAZAKI,TURKEY SPEC(EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITHOUT
YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,"BLACK RALLY EDITION"*(B); YAZAKI,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM
YAZAKI,KM/H METER COUNTRIES&TOYOTA STOP & START SYSTEM-WITH; YAZAKI,TOYOTA STOP & START SYSTEM-WITH
YAZAKI,KM/H METER COUNTRIES&TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY); YAZAKI,TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT
YAZAKI,KM/H METER COUNTRIES&TOYOTA STOP & START SYSTEM-WITH; YAZAKI,TOYOTA STOP & START SYSTEM-WITH
YAZAKI,KM/H METER COUNTRIES&TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY); YAZAKI,TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT
YAZAKI; YAZAKI,KM/H METER COUNTRIES
YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT; YAZAKI,KM/H METER COUNTRIES&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,KM/H METER COUNTRIES&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT; YAZAKI,KM/H METER COUNTRIES&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH; YAZAKI,KM/H METER COUNTRIES&"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH
YAZAKI,"BLACK RALLY EDITION"*(B); YAZAKI,KM/H METER COUNTRIES&"BLACK RALLY EDITION"*(B)
YAZAKI,TOYOTA STOP & START SYSTEM-WITH
YAZAKI,TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,TOYOTA STOP & START SYSTEM-WITH
YAZAKI,TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT; YAZAKI,KM/H METER COUNTRIES&"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH
YAZAKI,"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH; YAZAKI,KM/H METER COUNTRIES&"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH
YAZAKI,"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT; YAZAKI,KM/H METER COUNTRIES&"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,"BLACK RALLY EDITION"*(B)&ACTIVE SAFETY PACKAGE-WITHOUT; YAZAKI,KM/H METER COUNTRIES&"BLACK RALLY EDITION"*(B)&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,"BLACK RALLY EDITION"*(B)
YAZAKI,"BLACK RALLY EDITION"*(B); YAZAKI,KM/H METER COUNTRIES&"BLACK RALLY EDITION"*(B)
YAZAKI,"BLACK RALLY EDITION"*(B)&ACTIVE SAFETY PACKAGE-WITHOUT; YAZAKI,KM/H METER COUNTRIES&"BLACK RALLY EDITION"*(B)&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT
YAZAKI,TURKEY SPEC(EURO 6 REGULATION)&"BLACK RALLY EDITION"*(B); YAZAKI,TURKEY SPEC(EURO 6 REGULATION)&"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&TOYOTA STOP & START SYSTEM-WITH
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&TOYOTA STOP & START SYSTEM-WITH&ACTIVESAFETY PACKAGE-WITHOUT
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&TOYOTA STOP & START SYSTEM-WITH
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&TOYOTA STOP & START SYSTEM-WITH&ACTIVESAFETY PACKAGE-WITHOUT
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
YAZAKI,ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH
YAZAKI,"BLACK RALLY EDITION"*(B)&TOYOTA STOP & START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,"BLACK RALLY EDITION"*(B)&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,"BLACK RALLY EDITION"*(B)
YAZAKI,"BLACK RALLY EDITION"*(B)&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY)
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&"BLACK RALLY EDITION"*(B)&TOYOTA STOP &START SYSTEM-WITH
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&"BLACK RALLY EDITION"*(B)&TOYOTA STOP &START SYSTEM-WITH
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&"BLACK RALLY EDITION"*(B)&TOYOTA STOP &START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&"BLACK RALLY EDITION"*(B)&TOYOTA STOP &START SYSTEM-WITH&ACTIVE SAFETY PACKAGE-WITHOUT
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&"BLACK RALLY EDITION"*(B)
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&"BLACK RALLY EDITION"*(B)
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&"BLACK RALLY EDITION"*(B)&ACTIVE SAFETYPACKAGE-WITHOUT
YAZAKI,SERBIA OR BOSNIA OR MONTENEGRO SPEC&"BLACK RALLY EDITION"*(B)&ACTIVE SAFETYPACKAGE-WITHOUT
83138GGLASS, COMBINATION METER
main83852-FBB20iGUN125,135..(SADCB,SASCB,SAXTR)..DCRE;GUN12#,135..(SADCB,SAXTR)..(H,M)..HDCR201604-202009
main83852-FBL60iGUN125..THDCB..(H,S)..DCRE;GUN12#,135..THDCB..(H,M)..HDCR;GUN125,135..THDCB..6FC..M..DCRE201806-202005
90167T0007
main90167-T0007
3 parts on this diagram · 1 diagram in section
METER for Toyota HILUX
This section contains 3 genuine Toyota parts for the METER system of the Toyota HILUX. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
