Toyota HILUX — HEATING & AIR CONDITIONING - SET

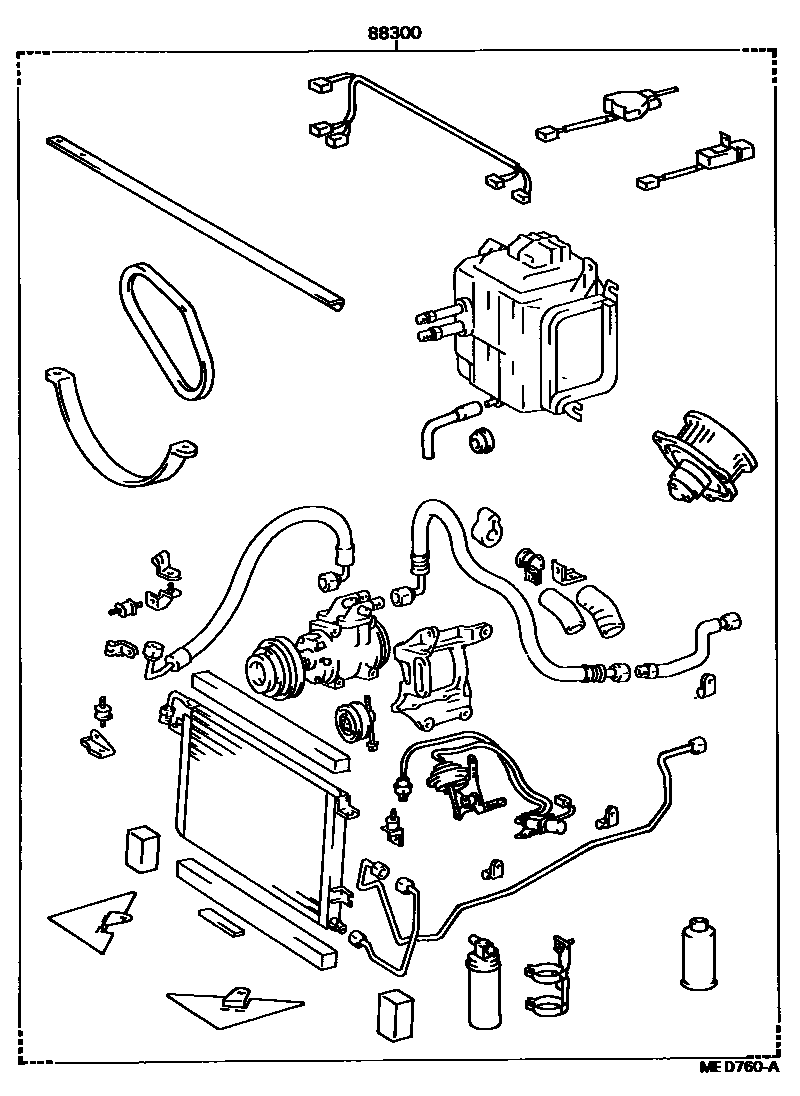

Parts diagram

88300COOLER & ACCESSORY ASSY

main88300-35720i199407-199807

main88300-35830i199407-199807

main88300-3D290i199407-199807

main88300-3D300i199407-199508

main88300-3D310i199407-199508

main88300-89170i198308-198608

NEW SOUTH WALES SPEC

main88300-89171i198308-198608

main88300-89172i198401-198408

GULF SPEC

main88300-89172i198308-198401

main88300-89173i198308-198408

main88300-89174i198404-198608

main88300-89175i198308-198408

main88300-89176i198308-198408

main88300-89181i198308-198408

W/*BV ONLY

main88300-89182i198308-198408

*BV ONLY

main88300-89182i198401-198408

GULF SPEC,*BV ONLY

main88300-89183i198308-198408

*BV ONLY

main88300-89185i198308-198408

*BV ONLY

main88300-89186i198308-198408

*BV ONLY

main88300-89190i198308-198608

main88300-89193i198308-198408

*BV ONLY

main88300-89210i198403-198608

NEW SOUTH WALES SPEC

main88300-89211i198403-198608

main88300-89213i198403-198608

main88300-89219i198308-198608

main88300-89219i198308-198608

NEW SOUTH WALES SPEC

main88300-89220i198401-198408

*SAA

main88300-89221i198401-198408

*BV ONLY,*SAA

main88300-89222i198401-198408

OMAN SPEC

main88300-89223i198401-198408

OMAN SPEC,*BV ONLY

main88300-89226i198404-198408

*BV ONLY,THAILAND SPEC

main88300-89289i198608-198903

NEW SOUTH WALES SPEC

main88300-89303i198608-198708

NEW SOUTH WALES SPEC

main88300-89303i198608-199407

main88300-89304i198608-198903

main88300-89306i198608-198708

main88300-89307i198608-198903

main88300-89310i198608-199407

main88300-89311i198608-199407

main88300-89312i198608-198903

1 parts on this diagram · 1 diagram in section
