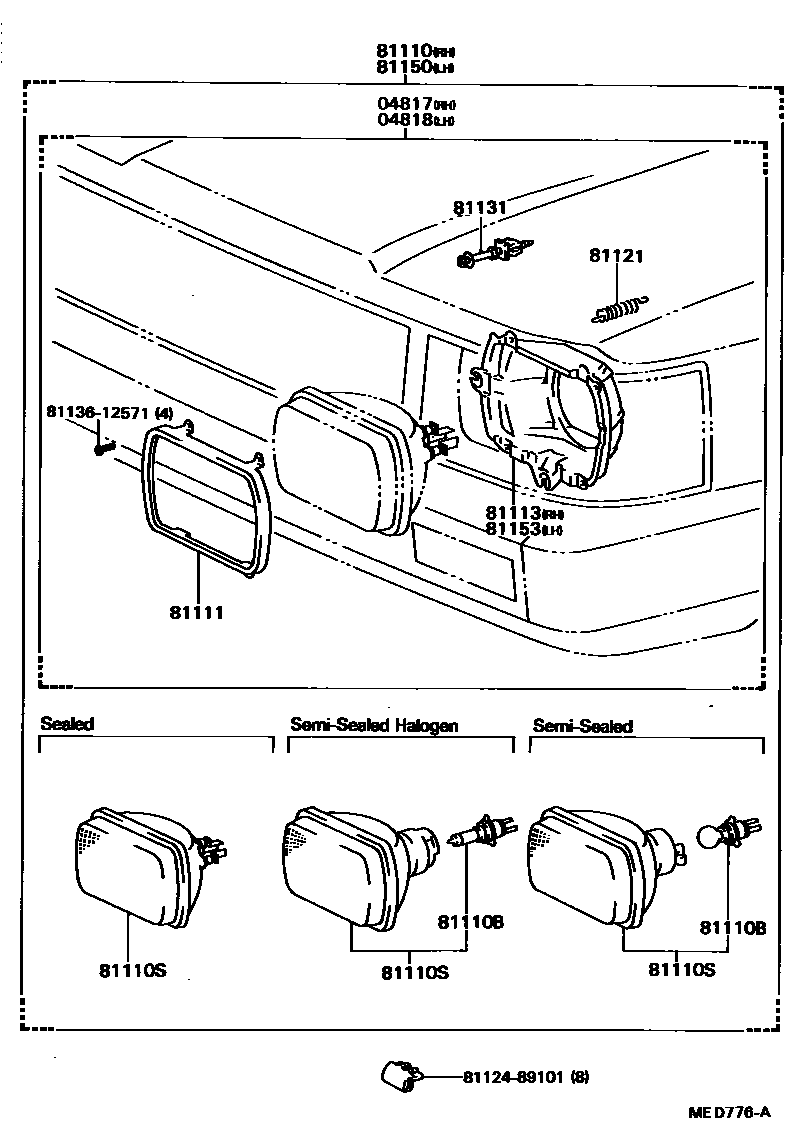

Toyota HILUX — HEADLAMP

0001 1 0002 1

04817HEADLAMP KIT, W/O SEALED BEAM, RH

main04817-35020iLN5#,6#,RN5#,YN5#,6#198308-198608

HALOGEN

04818HEADLAMP KIT, W/O SEALED BEAM, LH

main04818-35020iLN5#,6#,RN5#,YN5#,6#198308-198608

HALOGEN

81110HEADLAMP ASSY, RH

main81110-80366iLN5#,60,65,YN50,55,57,65,67..RHD..GEN198308-198608

SEALED

main81110-80367iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

SEALED

main81110-80368iLN5#,60,65,YN50,55,56,57,65,67..RHD..(EUR,GEN)198308-198608

*SSB,WHITE

main81110-80369iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)198308-198608

*SSB,WHITE

main81110-80370iLN5#,60,65,YN50,55,56,57,65,67..RHD..(EUR,GEN)198308-198608

*SSB,HALOGEN,WHITE

main81110-80371iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)198308-198608

*SSB,HALOGEN,WHITE

main81110-80372iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)198308-198608

*SSB,HALOGEN,YELLOW

main81110-80374iLN50,55,56,6#,YN50,55,57,6#..RHD..(ARL,GEN,SA)198308-198608

SEALED,HALOGEN,WHITE

main81110-80375iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

SEALED,HALOGEN,WHITE

main81110-89149iLN5#,65,YN50,55,57,67..RHD..GEN198608-199201

SEALED

sub81130-89149

sub90981-04H21

sub90981-04H22

main81110-89150iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

SEALED

main81110-89152iLN5#,65,67,YN50,51,55,56,57,58,67..RHD..(EUR,GEN,SA)198608-199807

*SSB,WHITE

main81110-89153iLN5#,65,YN50,55,56,57,67..LHD..(EUR,GEN)198608-199201

*SSB,WHITE

main81110-89153iLN5#,YN57..RHD..RCB..5F..GEN198808-199201

THAILAND SPEC

main81110-89154iLN5#,6#,YN50,55,56,57,58,6#..RHD..(ARL,GEN)198608-199201

SEALED,HALOGEN,WHITE

sub81130-89149

sub90981-04H21

sub90981-04H22

main81110-89155iLN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME)198608-199201

SEALED,HALOGEN,WHITE

main81110-89158iLN5#,65,67,RN58,67,YN50,51,55,56,57,58,67..RHD..(EUR,GEN,SA)198608-199807

*SSB,HALOGEN,WHITE

sub81110-35250

main81110-89159iLN5#,65,RN61,YN50,55,56,57,67..LHD..(EUR,GEN)198608-199201

*SSB,HALOGEN,WHITE

sub81110-35260

main81110-89160iLN5#,65,YN50,55,56,57,67..LHD..(EUR,GEN)198608-199201

*SSB,HALOGEN,YELLOW

sub81110-35300

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013iLN5#,60,65,YN50,55,56,57,60,62,65,67..EUR,GEN198308-199807

12V 45/40W,WHITE,12V 45/40W,*SSB,WHITE

main90981-13015iLN5#,60,65,RN61,YN50,55,56,57,60,62,65,67..EUR,GEN198308-199807

12V 60/55W,*HAL *WH,12V 60/55W,*SSB,HALOGEN,WHITE

sub90981-13058

main90981-13016iYN63..ME198308-199201

12V 60/55W,*HAL *YE,12V 60/55W,*SSB,HALOGEN,YELLOW

sub90981-13H01

81110SSEALED BEAM UNIT, NO.1

main90981-04001iLN5#,60,65,YN50,55,57,65,67..RHD..GEN198308-199201

12V 65/55W,*WB,12V 65/55W,SEALED

sub90981-04H21

sub90981-04H22

main90981-04004iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-199201

12V 65/55W,*WB,12V 65/55W,SEALED

main90981-04005iLN5#,65,67,YN50,51,55,56,57,58,65,67..SA198308-199807

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-04006iLN5#,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)198308-199201

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-04006iLN5#,YN57..RHD..RCB..5F..GEN198808-199201

12V 45/40W,*WSB,THAILAND SPEC

main90981-04008iLN5#,65,RN61,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)198308-199201

12V 60/55W,*HWS,12V 60/55W,*SSB,HALOGEN,WHITE

main90981-04009iLN5#,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)198308-199201

12V 60/55W,*HYS,12V 60/55W,*SSB,HALOGEN,YELLOW

main90981-04011iLN5#,60,65,YN50,55,56,57,65,67..RHD..(EUR,GEN)198308-199807

12V 60/55W,*HWS,12V 60/55W,*SSB,HALOGEN,WHITE

main90981-04015iLN50,55,56,6#,YN50,55,57,6#..RHD..(ARL,GEN,SA)198308-199201

12V 65/55W,*WB,12V65/55W,SEALED,HALOGEN,WHITE

sub90981-04H21

sub90981-04H22

main90981-04020iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-199201

12V 65/35W,*HAL,*WB,12V 65/35W,SEALED,HALOGEN

81111RING, SEALED BEAM RETAINING

main81111-16020iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-89136iLN5#,6#,RN5#,YN5#,6#198308-198608

main81113-89149iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198608-199807

81121SPRING, HEADLAMP TENSION

main81121-14670iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

81131SCREW, HEADLAMP ADJUSTING

main81131-89103iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

W/SELF LOCKING NUT

81150HEADLAMP ASSY, LH

main81150-80360iLN5#,60,65,YN50,55,57,65,67..RHD..GEN198308-198608

SEALED

main81150-80361iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

SEALED

main81150-80362iLN5#,60,65,YN50,55,56,57,65,67..RHD..(EUR,GEN)198308-198608

*SSB,WHITE

main81150-80363iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)198308-198608

*SSB,WHITE

main81150-80364iLN5#,60,65,YN50,55,56,57,65,67..RHD..(EUR,GEN)198308-198608

*SSB,HALOGEN,WHITE

main81150-80365iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)198308-198608

*SSB,HALOGEN,WHITE

main81150-80366iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)198308-198608

*SSB,HALOGEN,YELLOW

main81150-80368iLN50,55,56,6#,YN50,55,57,6#..RHD..(ARL,GEN,SA)198308-198608

SEALED,HALOGEN,WHITE

main81150-80369iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

SEALED,HALOGEN,WHITE

main81150-89149iLN56,65,YN55,56,57,58,67..STD198608-199201

SEALED

sub81170-89149

sub90981-04H21

sub90981-04H22

main81150-89150iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

SEALED

main81150-89152iLN5#,65,67,YN50,51,55,56,57,58,67..RHD..(EUR,GEN,SA)198608-199807

*SSB,WHITE

main81150-89153iLN51,56,YN57..RHD..RCB..5F..GEN198808-199807

THAILAND SPEC

main81150-89153iLN5#,65,YN50,55,56,57,67..LHD..(EUR,GEN)198608-199201

*SSB,WHITE

main81150-89154iLN5#,6#,YN50,55,56,57,6#..RHD..(ARL,GEN)198608-199201

SEALED,HALOGEN,WHITE

sub81170-89149

sub90981-04H21

sub90981-04H22

main81150-89155iLN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME)198608-199201

SEALED,HALOGEN,WHITE

main81150-89158iLN5#,65,67,RN58,67,YN50,51,55,56,57,58,67..RHD..(EUR,GEN,SA)198608-199807

*SSB,HALOGEN,WHITE

sub81150-35230

main81150-89159iLN5#,65,RN61,YN50,55,56,57,67..LHD..(EUR,GEN)198608-199201

*SSB,HALOGEN,WHITE

sub81150-35240

main81150-89160iYN63..ME198608-199201

*SSB,HALOGEN,YELLOW

sub81150-35280

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-89136iLN5#,6#,RN5#,YN5#,6#198308-198608

main81153-89149iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198608-199807

8112489101SPACER

main81124-89101

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

13 parts on this diagram · 2 diagrams in section
