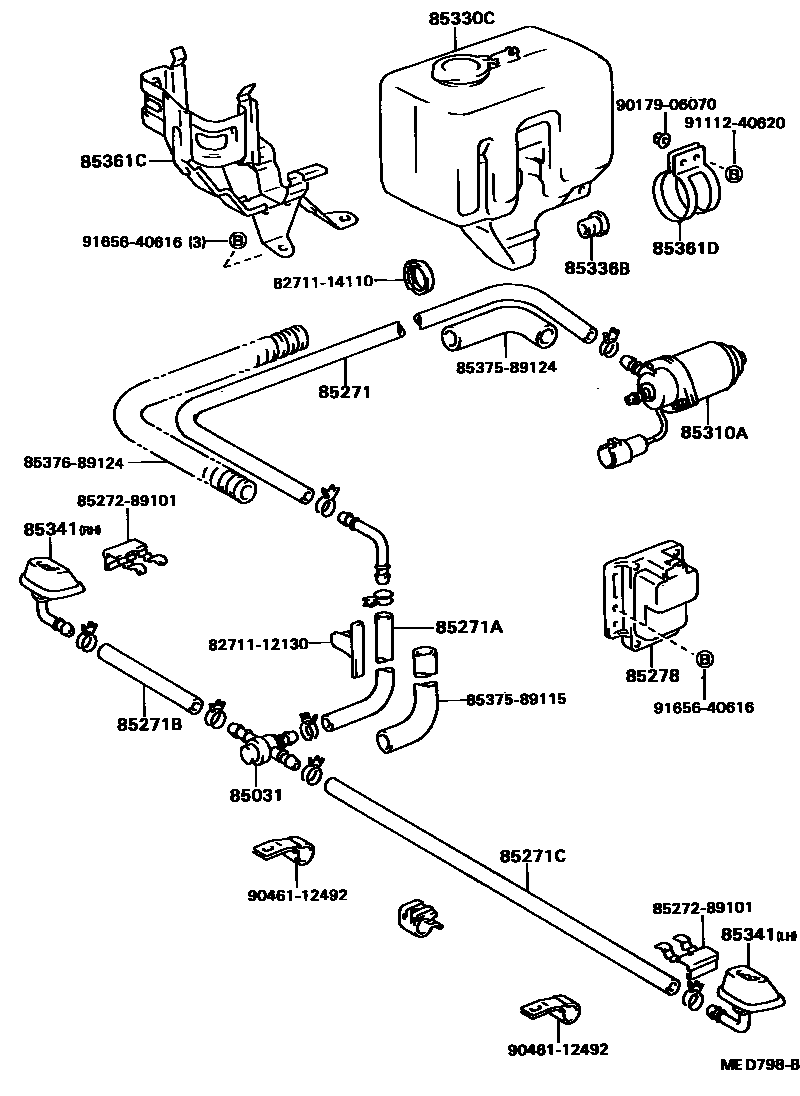

Toyota HILUX — HEADLAMP CLEANER

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-12010iLN55,65,YN56,65..LHD..EUR198308-198808

85271HOSE, HEADLAMP CLEANER, NO.1

main90445-14023iLN55,65,YN56,65..LHD..EUR198308-198608

L=1020

sub90445-14072

main90445-14070iLN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR198608-198808

L=1320(*H,L=1260)

sub90445-14072

85271AHOSE, HEADLAMP CLEANER, NO.2

main90445-14022iLN55,65,YN56,65..LHD..EUR198308-198808

L=640(*H,L=350)

sub85375-22061

85271BHOSE, HEADLAMP CLEANER, NO.3

main85343-95701iLN55,65,YN56,65..LHD..EUR198308-198808

L=120

sub85375-30030

85271CHOSE, HEADLAMP CLEANER, NO.4

main90445-14037iLN55,65,YN56,65..LHD..EUR198308-198808

L=1320(*H,L=940)

sub90445-14072

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-22020iLN55,65,YN56,65..LHD..EUR198308-198808

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-10090iLN55,65,YN56,65..LHD..EUR198308-198808

85330CJAR ASSY, HEADLAMP CLEANER WASHER

main85330-22120iLN55,65,YN56,65..LHD..EUR198308-198808

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iLN55,65,YN56,65..LHD..EUR..CBU198308-198808

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-89106iLN65,YN67..LHD..EUR198308-198808

RH

main85035-89107iLN55,65,YN56,65..LHD..EUR..CBU198308-198808

LH

main85035-89112iYN56..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR198608-198808

RH

main85035-89113iYN56..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR198608-198808

LH

85361CBRACKET, WASHER

main85361-89104iLN55,65,YN56,65..LHD..EUR198308-198808

85361DBRACKET, HEADLAMP CLEANER, NO.2

main85361-14100iLN55,65,YN56,65..LHD..EUR198308-198808

8271112130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12130

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8527289101CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-89101

8537589115HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-89115

8537589124HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-89124

8537689124PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-89124

9017906070

main90179-06070

9046112492

main90461-12492

9111240620

main91112-40620

9165640616

main91656-40616

22 parts on this diagram · 1 diagram in section
