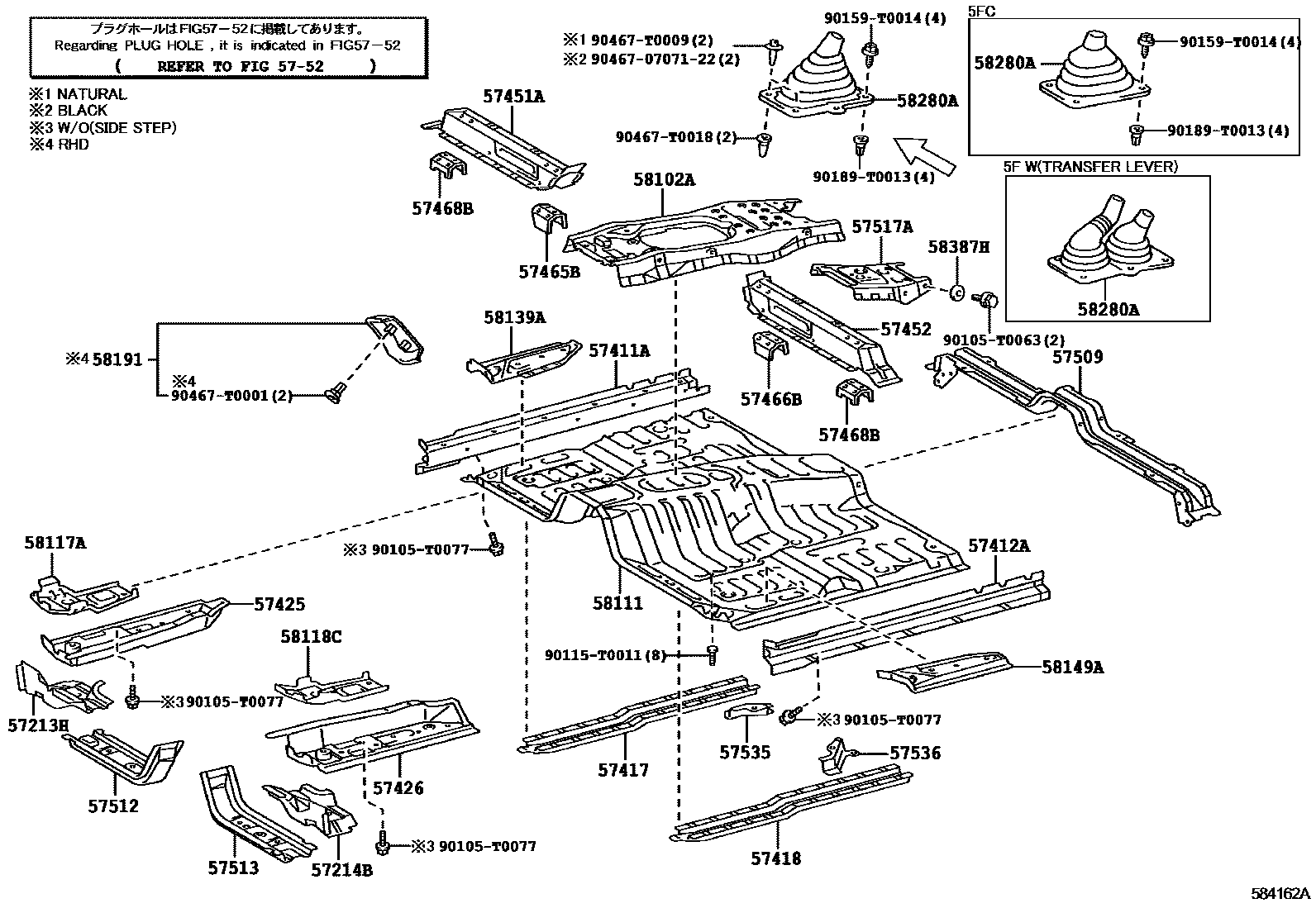

Toyota HILUX — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57213HBRACKET, BODY MOUNTING, NO.2 RH
57214BBRACKET, BODY MOUNTING, NO.2 LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452MEMBER, FRONT FLOOR CROSS, LH
57465BBRACKET, FRONT SEAT, INNER
57466BBRACKET, FRONT SEAT, INSIDE LH
57468BBRACKET, FRONT SEAT, REAR
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57512REINFORCEMENT, FRONT FLOOR, RH
57513REINFORCEMENT, FRONT FLOOR, LH
57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR
5752HOLE PLUG
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58139APLATE, FRONT FLOOR SIDE, REAR RH
58149APLATE, FRONT FLOOR SIDE, REAR LH
58191FOOTREST, FRONT FLOOR
58280ABOOT ASSY, SHIFT LEVER
58387HPLATE, REAR FLOOR
90105T0063
main90105-T0063
90105T0077
main90105-T0077
90115T0011
main90115-T0011
90159T0014
main90159-T0014
90189T0013
main90189-T0013
904670707122
main90467-0707122
90467T0001
main90467-T0001
90467T0009
main90467-T0009
90467T0018
main90467-T0018
38 parts on this diagram · 4 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX
This section contains 64 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX. Key components include: STAY SUB-ASSY, SIDE STEP, NO.1 RH, STAY SUB-ASSY, SIDE STEP, NO.1 LH, STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, COVER, SIDE DOOR STEP PLATE, FRONT RH.
