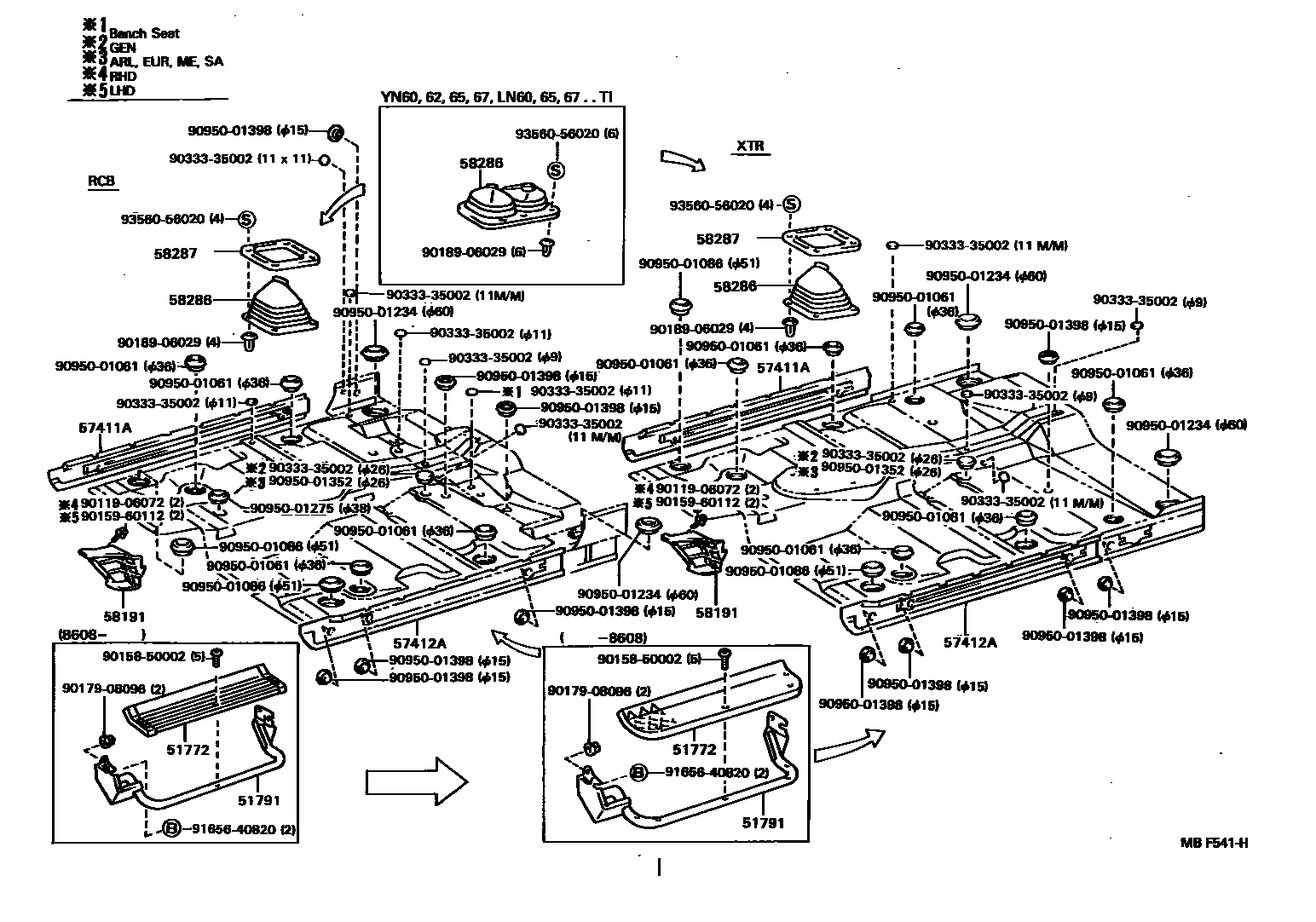

Toyota HILUX — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

51772PLATE, STEP

main51707-89104iLN65,YN67..T1..(GEN,ME)198608-199807

main51707-89105iLN65,YN67..TW..(GEN,ME)198608-199807

main51771-89101iLN65,YN67..TW..(GEN,ME)198408-198608

main51771-95111iLN60,61,YN60,63..WG198308-198608

51791STAY, STEP

main51705-89104iLN65,YN60,62,67..RCB..(GEN,ME)198308-198608

RH

main51705-89109iYN65..TW..ME198408-198608

RH

main51705-89110iLN60,61,YN60,63..WG198403-198608

RH

main51705-89117iLN65,YN67..T1..(GEN,ME)198608-199807

RH

main51705-89118iLN61,RN61,YN63198608-198903

RH

main51705-89119iLN65,YN67..TW..(GEN,ME)198608-199807

RH

main51706-89104iYN6#..RCB..ME198308-198608

LH

main51706-89109iLN65,YN67..TW..(GEN,ME)198408-198608

LH

main51706-89110iLN60,61,YN60,63..WG198403-198608

LH

main51706-89117iLN65,YN67..T1..(GEN,ME)198608-199807

LH

main51706-89118iLN61,RN61,YN63198608-198903

LH

main51706-89119iLN65,YN67..TW..(GEN,ME)198608-199807

LH

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-89112iYN55..ARL198706-198808

main57401-89113iYN57..DLX..GEN198706-199807

main57411-89103iYN55..GEN198507-199807

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-89112iYN55..ARL198706-198808

main57402-89113iYN57..DLX..GEN198706-199807

main57412-89105iYN57..RHD198507-199807

58191FOOTREST, FRONT FLOOR

main58191-89101iYN63..ME198508-199807

main58191-89102iLN60,61,YN60,63..ARL198403-199807

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-89104iRN5#198601-198808

main58280-89105iLN60,61,YN60,63..WG198308-199807

main58280-89106iLN65,RN67,YN65,67..TW198308-199807

main58280-89107iRN61198712-198903

main58286-89113iLN50,55,YN50,55..4F198308-199807

main58286-89114iYN57..5F..STD198308-198408

main58286-89115iYN57..5F..(DLX,SR5)198308-198408

main58286-89116iRN58..SR5;LN51,56,YN51,52,56,57,58..4F,5F198308-199807

main58286-89116iLN51,56..GEN198404-198408

THAILAND SPEC

main58286-89122iYN57..5F198408-198508

58287RETAINER, SHIFT LEVER BOOT

main58287-89106iLN50,55,YN50,55..4F198308-199807

main58287-89107iLN50,55,YN56..5F198308-199807

main58287-89107iLN51,56..GEN198404-198408

THAILAND SPEC

main58287-89108iYN57..5F198308-198408

main58287-89111iYN57..5F198408-198508

9011906072

main90119-06072

9015850002

main90158-50002

9015960112

main90159-60112

9017908096

main90179-08096

9018906029

main90189-06029

9033335002

main90333-35002

9095001061

main90950-01061

9095001086

main90950-01086

9095001234

main90950-01234

9095001275

main90950-01275

9095001352

main90950-01352

9095001398

main90950-01398

9165640820

main91656-40820

9356056020

main93560-56020

21 parts on this diagram · 3 diagrams in section
