Toyota HILUX — FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-02040iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-02040iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0K070iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..(SADCB,SASCB,SAXTR)..(M,S,X)201604-202009
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0K070iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..(SADCB,SASCB,SAXTR)..(M,S,X)201604-202009
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,3#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
PLATED
NO PAINT REQ.
PLATED
main69210-0K250iGUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009
NO PAINT REQ.
NO PAINT REQ.,"BLACK RALLY EDITION"*(B),BLACK PAINT
PLATED,UKRAINE SPEC(EURO 6 REGULATION)
PLATED,RUSSIA & UKRAINE SPEC
PLATED,UKRAINE SPEC(EURO 6 REGULATION)
DOOR OUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER),BLACK PAINT
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
BLACK MATERIAL,DRIVER SIDE
BLACK MATERIAL,PASSENGER SIDE
main69217-0K450iGUN125..(SADCB,SASCB,SAXTR)..S;GUN135..(SADCB,SASCB,SAXTR)..S..CBU; GUN135..IV3;GUN125,135..(SADCB,SASCB)..X..CBU201604-202009
BLACK MATERIAL,DRIVER & PASSENGER; BLACK MATERIAL,DRIVER SIDE
BLACK MATERIAL,PASSENGER SIDE
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
BLACK PAINTED,DOOR OUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER),DRIVER SIDE
BLACK PAINTED,DOOR OUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER),PASSENGERSIDE
BLACK PAINTED,DOOR OUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER),DRIVER SIDE
BLACK PAINTED,DOOR OUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER),PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
PLATED
NO PAINT REQ.
PLATED
main69210-0K250iGUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)201604-202009
NO PAINT REQ.
NO PAINT REQ.,"BLACK RALLY EDITION"*(B),BLACK PAINT
PLATED,UKRAINE SPEC(EURO 6 REGULATION)
PLATED,UKRAINE SPEC(EURO 6 REGULATION)
PLATED,UKRAINE SPEC(EURO 6 REGULATION)
DOOR OUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER),BLACK PAINT
69237ANUT, FRONT DOOR HANDLE
"BLACK RALLY EDITION"*(B)&STEERING COLUMN-WITH(TILT & TELESCOPIC,WITH(*SES))&DOOROUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER); STEERING COLUMN-WITH(TILT & TELESCOPIC,WITH(*SES))
69239CBUSH, FRONT DOOR HANDLE
main69239-0K080×2iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-0K050-C0iGUN12#,135..THDCB..(H,M)..HDCR; GUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-0K030-C0iGUN12#,135..THDCB..(H,M)..HDCR; GUN125..THDCB..S;GUN135..THDCB..DCRE;GUN135..THDCB..S..HDCR;GUN125..THDCB..(H,M)..DCRE201506-202005
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
main69296-30010×2iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..(SADCB,SASCB,SAXTR)..(M,S,X)201604-202009
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0K140iGUN135..IV3;GUN135..SASCB..CBU;GUN125..SASCB,SAXTR;GUN135..SAXTR..S..CBU201604-202009
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-0K140iGUN135..IV3;GUN135..SASCB..CBU;GUN125..SASCB,SAXTR;GUN135..SAXTR..S..CBU201604-202009
9014850003
main90148-50003
9014860083
main90148-60083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005

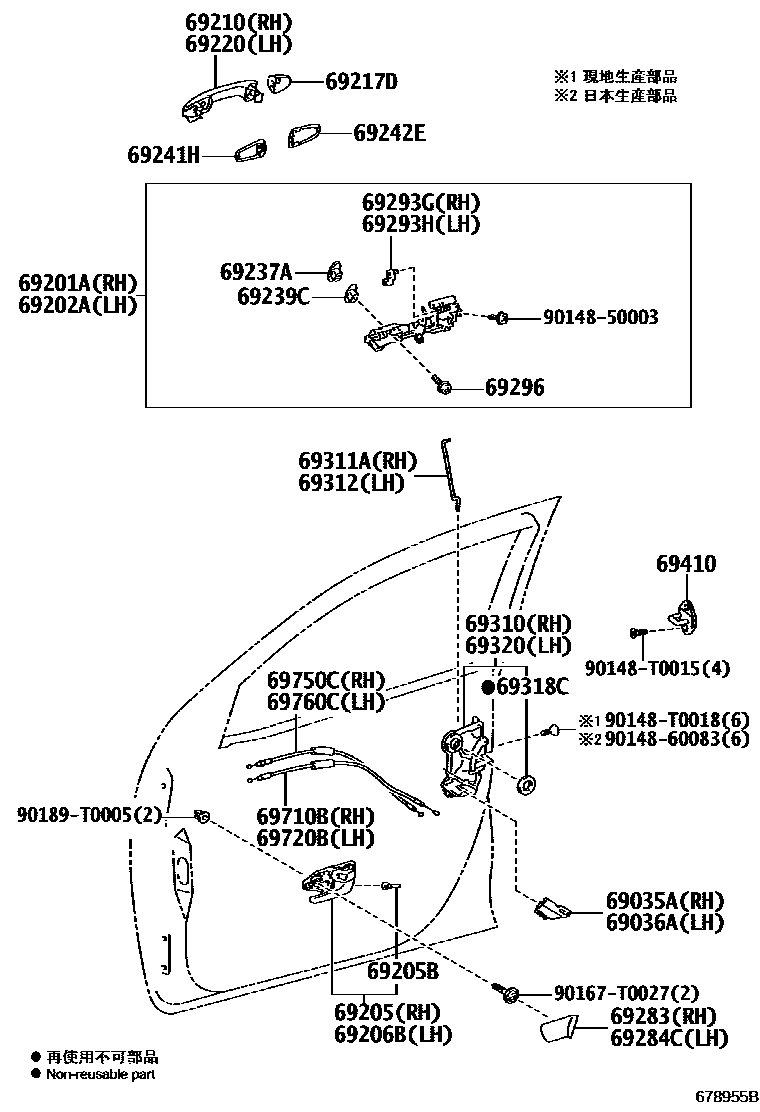

35 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota HILUX
This section contains 35 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota HILUX. Key components include: COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
