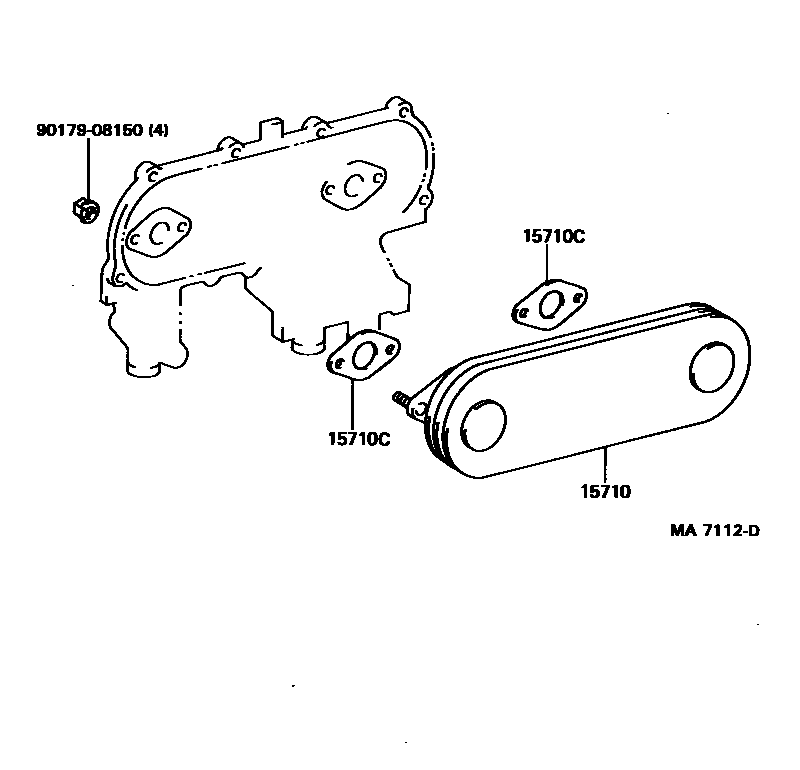

Toyota HILUX — ENGINE OIL COOLER

15710COOLER ASSY, OIL

main15710-54021iL..LN50,55198308-198408

main15710-54030i2L..LN51,56,6#198308-199109

main15710-54050i2L..LN5#198909-199807

15710CGASKET(FOR OIL COOLER)

main15785-54010i2L,3L..LN5#,6#198808-199807

main90923-05015iL,2L..LN5#,6#198308-198808

sub15785-54010

9017908150

main90179-08150

3 parts on this diagram · 1 diagram in section
