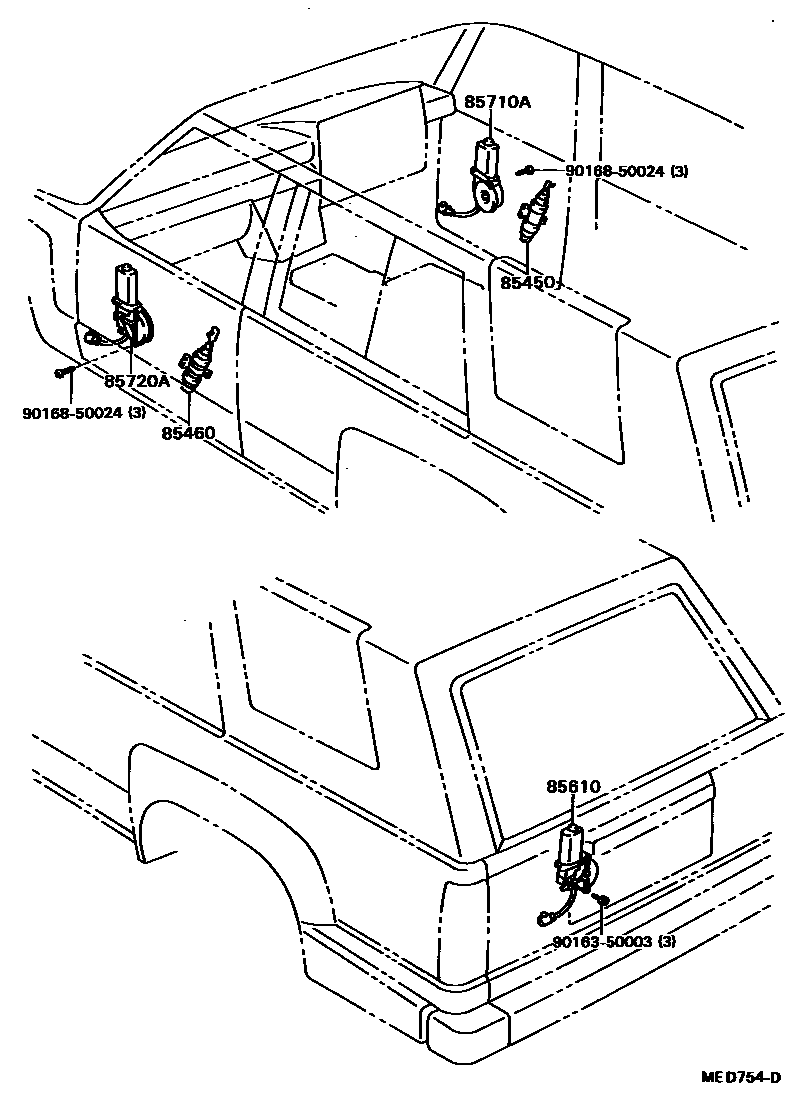

Toyota HILUX — DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-17010iRN61,YN63..LHD198508-198903

sub85450-17030

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-17020iRN61,YN63..LHD198508-198903

sub85450-17040

85610MOTOR ASSY, TAIL GATE REGULATOR

main85710-89102iLN60,61,RN61,YN60,63..WG198403-198903

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-89101iRN61,YN60,63..LHD..SR5198403-198903

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-89101iRN61,YN60,63..LHD..SR5198403-198903

9016350003

main90163-50003

9016850024

main90168-50024

7 parts on this diagram · 1 diagram in section
