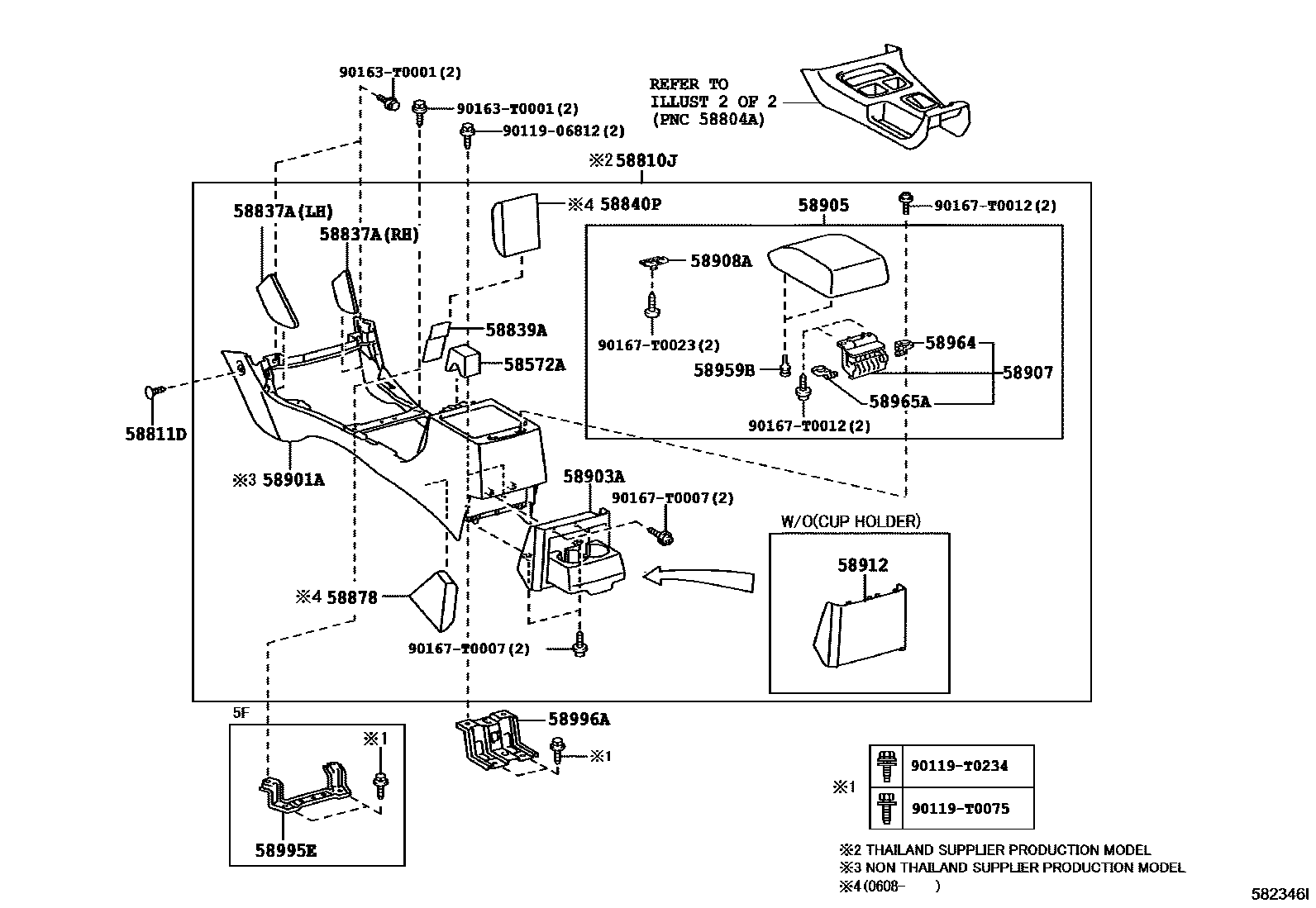

Toyota HILUX — CONSOLE BOX & BRACKET

58572ACUSHION, CONSOLE BOX

main58872-0K010i200808-201108

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

58810JBOX ASSY, CONSOLE

main58810-0K052-B0supersedes 58810-0K070-B0i200808-201107

COLD AREA SPEC,GRAY,TRIM1#; GRAY,TRIM1#

main58810-0K121-B0i200507-200608

GRAY,TRIM1#

main58810-0K141-B0supersedes 58810-0K220-B0i200702-200808

COLD AREA SPEC,GRAY,TRIM1#; GRAY,TRIM1#

main58810-0K150-B0i200507-200608

GRAY,TRIM1#

main58810-0K181-B0i200808-201107

GRAY,TRIM1#

main58810-0K191-B0i200702-200808

GRAY,TRIM1#

main58810-0K240-B0i200808-201107

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; GRAY,TRIM1#

main58810-0K250-B0i200808-201107

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; GRAY,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-T0002-A0×2i200507-200610

IVORY,TRIM0#

main90467-T0002-B0×2i200507-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; GRAY,TRIM1#

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-0K010i200507-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),RH; RH

main58837-0K020i200507-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),LH; LH

58839ACOVER, CONSOLE BOX HOLE

main58839-0K010-B0i200507-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; GRAY,TRIM1#

58840PPAD, CONSOLE BOX SILENCER, NO.3

main58859-0K010i200608-200810

58878PAD, CONSOLE BOX SILENCER, NO.4

main58878-0K010i200610-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-0K010-B0i200507-200608

GRAY,TRIM1#

main58911-0K030-B0supersedes 58911-0K010-B0i200610-200810

GRAY,TRIM1#

main58911-0K050-B0i200507-200610

GRAY,TRIM1#

main58911-0K090-B0i200610-200810

GRAY,TRIM1#

main58911-0K100-B0i200610-200810

GRAY,TRIM1#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-0K010-B0i200808-201108

GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0K010-B0i200507-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; GRAY,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-0K050i201012-201108

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

main58907-12050i200507-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030i200507-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

58912BOX, REAR CONSOLE, NO.2

main58912-0K020-B0i200507-200808

GRAY,TRIM1#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-04079×2i200507-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-0K050i201012-201108

(L); FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),(L)

main58964-20030i200808-201108

(J); FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),(J)

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-0K070i201012-201108

(L); FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),(L)

main58965-20040i200507-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

58995EBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0K010i200507-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0K010i200507-200810

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

9011906812

main90119-06812

90119T0075

main90119-T0075

90119T0234

main90119-T0234

90163T0001

main90163-T0001

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90167T0023

main90167-T0023

25 parts on this diagram · 4 diagrams in section

CONSOLE BOX & BRACKET for Toyota HILUX

This section contains 29 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota HILUX. Key components include: CUSHION, CONSOLE BOX, PANEL SUB-ASSY, CONSOLE, UPPER, COVER SUB-ASSY, SHIFTING HOLE, BOX ASSY, CONSOLE, CLIP(FOR CONSOLE BOX).
