Toyota HILUX — CONSOLE BOX & BRACKET

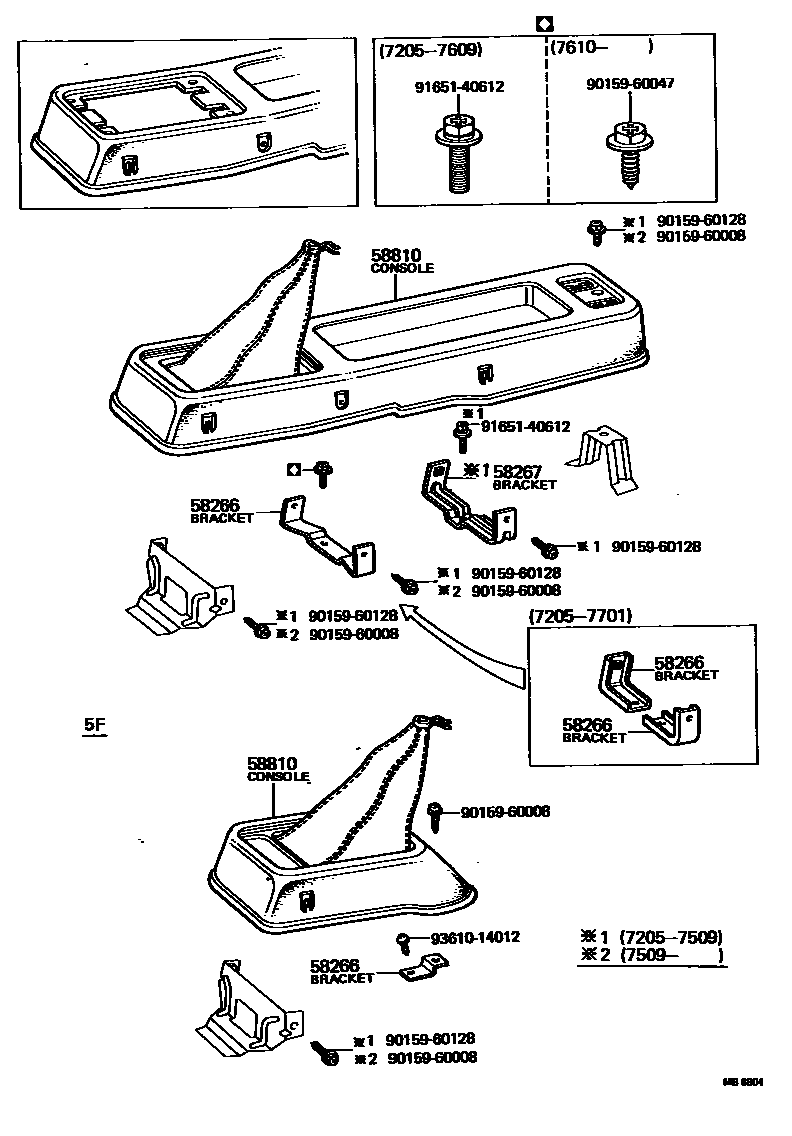

Parts diagram

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58852-89102i197404-197701

main58852-89107i197701-197807

main58852-89108i197702-197807

58267BRACKET, CONSOLE BOX SUPPORT, CENTER

main58815-89101i197404-197408

main58815-89102i197408-197509

58810CONSOLE ASSY

main58810-89104i197404-197408

main58810-89105i197404-197408

main58810-89106-01i197509-197807

BLACK,BLACK

main58810-89106-04i197708-197807

BLUE,BLUE

main58810-89106-06i197608-197807

TAN,BROWN

main58810-89107-01i197509-197807

BLACK,BLACK

main58810-89107-04i197708-197807

BLUE,BLUE

main58810-89107-06i197608-197807

TAN,BROWN

main58810-89108i197408-197509

main58810-89109i197408-197509

main58810-89110-01i197702-197807

BLACK,BLACK

main58810-89110-04i197708-197807

BLUE,BLUE

main58810-89110-06i197702-197807

TAN,BROWN

9015960008

main90159-60008

9015960047

main90159-60047

9015960128

main90159-60128

9165140612

main91651-40612

9361014012

main93610-14012

8 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota HILUX

This section contains 8 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota HILUX. Key components include: BRACKET, CONSOLE BOX SUPPORT, FRONT, BRACKET, CONSOLE BOX SUPPORT, CENTER, CONSOLE ASSY.
