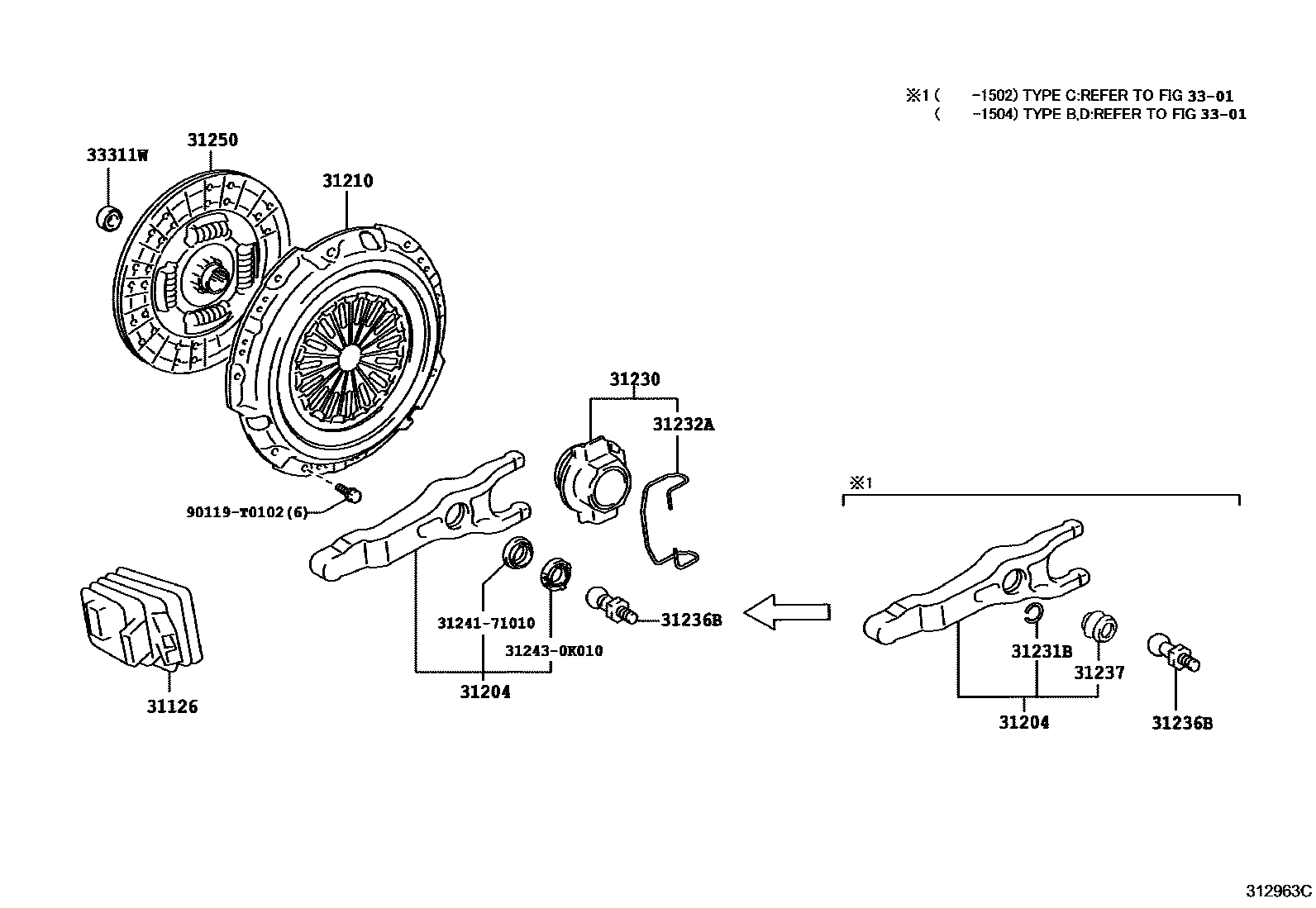

Toyota HILUX — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
TYPE D:REFER 33-01
TYPE B:REFER 33-01
31204FORK SUB-ASSY, CLUTCH RELEASE
TYPE B:SEE 33-01,(L)
TYPE C:REFER 33-01
TYPE C:REFER 33-01
TYPE D:REFER 33-01
TYPE B:SEE 33-01,(J)
31210COVER ASSY, CLUTCH
*450
*450
31230BEARING ASSY, CLUTCH RELEASE
TYPE D:REFER 33-01,TYPE C:REFER 33-01
31231BRING, SNAP(FOR CLUTCH RELEASE HUB)
TYPE B:SEE 33-01,(L); TYPE D:REFER 33-01
TYPE C:REFER 33-01
31232ACLIP, RELEASE BEARING HUB
TYPE B:REFER 33-01
31236BSUPPORT, RELEASE FORK
TYPE D:REFER 33-01
TYPE B:REFER 33-01; TYPE D:REFER 33-01
31237BOOT, CLUTCH RELEASE FORK SUPPORT
TYPE B:SEE 33-01,(L); TYPE D:REFER 33-01
TYPE B:SEE 33-01,(J)
31250DISC ASSY, CLUTCH
3301TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)
33311WBEARING (FOR INPUT SHAFT)
(L)
(J)
(L)
3124171010SEAL, CLUTCH RELEASE FORK DUST
main31241-71010
312430K010COLLAR, CLUTCH RELEASE FORK
main31243-0K010
90119T0102
main90119-T0102
14 parts on this diagram · 1 diagram in section
CLUTCH & RELEASE FORK for Toyota HILUX
This section contains 14 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota HILUX. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, RING, SNAP(FOR CLUTCH RELEASE HUB).
