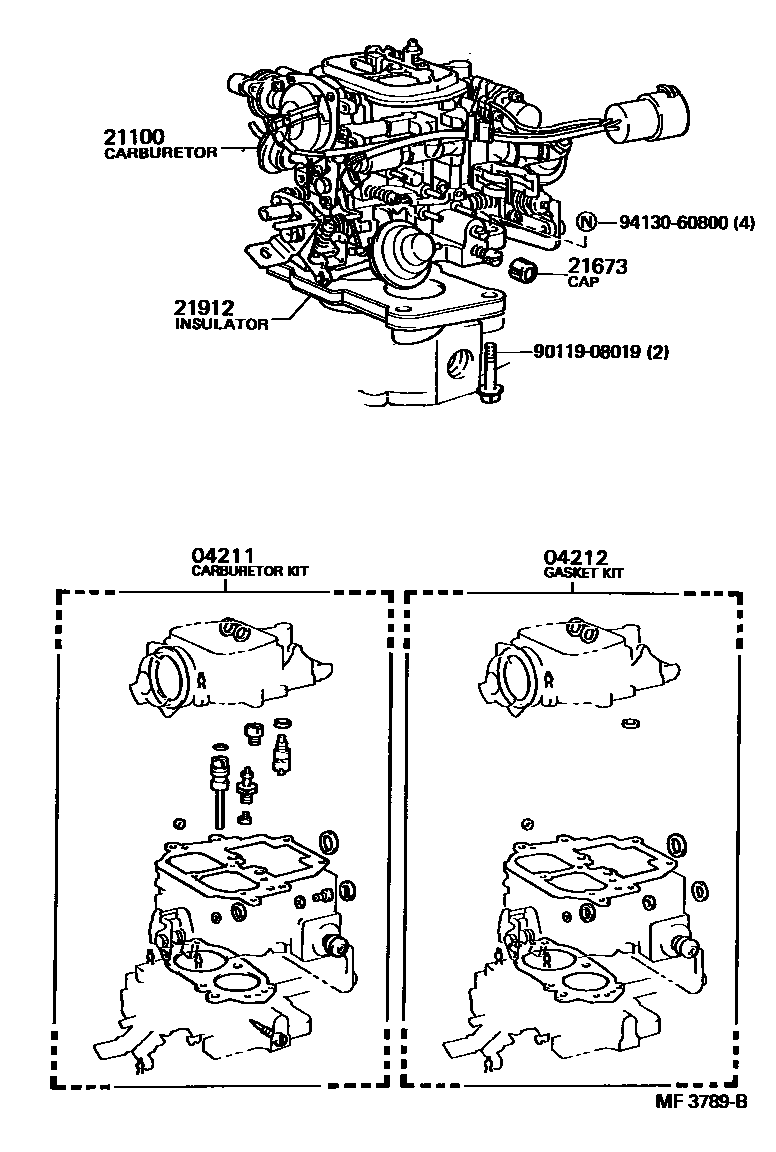

Toyota HILUX — CARBURETOR ASSEMBLY

0001 1 0002 1

04211CARBURETOR KIT

main04211-35410i22R..RN5#198601-198808

sub04211-35411

main04211-35590i22R..RN67;22R..RN58..SR5199407-199807

main04211-71020i3Y..YN57,6#..ARL198308-198508

*NSW

main04211-71020i1YC..YN55198308-198708

main04211-71030i1Y,3Y..YN50,52,55,57,60..GEN,ME,SA198308-198608

main04211-71040i2Y,3Y..YN56,65..EUR198308-198608

main04211-71090i1Y,2Y..YN50,51,55,56..GEN,SA198608-198712

sub04211-71091

main04211-71091i1Y,2Y..YN50,51,55,56..GEN,SA198712-198808

main04211-72130i2Y..YN56..EUR198608-198808

main04211-72200i1Y..YN50,55198808-199807

main04211-72250i2Y..YN51,56..SA198803-198912

main04211-72251i2Y..YN51,56198912-199108

main04211-72390i2Y..YN51,56199108-199807

main04211-73090i3Y..YN57..5F..ARL198508-198708

main04211-73100i3Y,4Y..YN57,63,67..ARL198508-198608

*NSW

main04211-73110i3Y,4Y..YN57,6#..ARL198608-198708

*NSW

main04211-73130i3Y..YN57..GEN198608-198712

sub04211-73131

main04211-73131i3Y..YN57..GEN198712-198808

main04211-73140i4Y..YN58,67..GEN,SA198608-198712

sub04211-73141

main04211-73141i4Y..YN58,67..GEN,SA198712-198903

main04211-73150i4Y..YN67..EUR198608-198808

main04211-73200i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

main04211-73240i4Y..YN58,67198808-198911

main04211-73241i4Y..YN58,67198911-199106

sub04211-73242

main04211-73242i4Y..YN58,67..SA199106-199807

main04211-73250i3Y..YN57198808-199807

main04211-73300i4Y..YN67..GEN199108-199807

04212GASKET KIT, CARBURETOR

main04212-35590i22R..RN67;22R..RN58..SR5199407-199807

main04212-37060i22R..RN5#198601-198808

sub04212-37061

main04212-71030i3Y,4Y..YN57,6#..5F..ARL198308-198708

main04212-71040i1Y,2Y..YN50,51,55,56..GEN,SA198608-198712

sub04212-71041

main04212-71041i1Y..YN50,55198712-198808

sub04212-73031

main04212-72030i2Y,4Y..YN56,67..EUR198608-198808

sub04212-73071

main04212-73020i3Y,4Y..YN57,6#..ARL198608-198708

*NSW

main04212-73030i4Y..YN58,67..GEN,SA198608-198712

sub04212-73031

main04212-73031i4Y..YN58,67..GEN,SA198712-198903

main04212-73040i3Y..YN57..GEN198608-198712

sub04212-73041

main04212-73041i3Y..YN57..GEN198712-198808

sub04212-73031

main04212-73070i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

sub04212-73071

main04212-73071i2Y..YN51,56..SA198803-199807

main04212-73110i4Y..YN58,67..SA198911-199807

21100CARBURETOR ASSY

main21100-35420i22R..RN5#198601-198808

main21100-35590i22R..RN67;22R..RN58..SR5199407-199807

main21100-71030i1YC..YN55198308-198508

*NSW

main21100-71040i3Y..YN57..4FC198308-198508

*NSW

main21100-71050i3Y..YN57,6#..ARL198308-198508

main21100-71060i2Y,3Y..YN56,65..EUR198308-198608

main21100-71070i1Y,3Y..YN50,52,55,57,6#..GEN,ME,SA198308-198508

main21100-71080i3Y..YN52,57,60..DLX..ME198401-198508

*SAA

main21100-71081i1Y,3Y..YN50,52,55,57,60..GEN,ME,SA198508-198608

main21100-71090i1YC..YN55198508-198708

main21100-71140i1Y..YN50,55198608-198808

main21100-72210i2Y..YN56..EUR198608-198808

main21100-72280i1Y..YN50,55198808-199807

main21100-72330i2Y..YN51,56..SA198803-198912

sub21100-72331

main21100-72331i2Y..YN51,56198912-199108

main21100-72390i2Y..YN51,56199108-199807

main21100-73140i4Y..YN62,63,67198508-198708

main21100-73150i3Y,4Y..YN57,63,67..ARL198508-198608

*NSW

sub21100-73270

main21100-73200i4Y..YN67..EUR198608-198808

main21100-73210i3Y..YN57..GEN198608-198808

main21100-73220i3Y,4Y..YN52,57,6#..ME198608-198903

main21100-73270i3Y,4Y..YN57,6#..ARL198608-198708

*NSW

main21100-73290i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

main21100-73350i4Y..YN58,67198808-198911

sub21100-73351

main21100-73351i4Y..YN58,67198911-199106

sub21100-73352

main21100-73352i4Y..YN58,67199106-199807

main21100-73360i3Y..YN57198808-199807

main21100-73400i4Y..YN67..GEN199108-199807

21673CAP, IDLE LIMIT

main21673-13280i22R..RN5#198601-198808

main21673-71030i4Y..YN62,63,67198308-199807

main21673-71030i1YC..YN55198508-198708

*NSW

main21673-71030i1Y,3Y..YN50,52,55,57,6#..ME198401-198508

*SAA

21912INSULATOR, CARBURETOR HEAT

main21912-35040i22R..RN67;22R..RN58..SR5199407-199807

main21912-37030i22R..RN5#198601-198808

sub21912-35040

main21912-71020i1Y#,2Y,3Y,4Y..YN5#,6#198308-198912

sub21912-71021

main21912-71021i1Y,2Y,3Y,4Y..YN5#,67198912-199807

main21912-73010i3Y,4Y..YN52,57,6#..ME198703-198903

sub21912-73020

main21912-73020i2Y,4Y..YN51,56,58,67..SA199108-199807

9011908019

main90119-08019

9413060800

main94130-60800

7 parts on this diagram · 2 diagrams in section
