Toyota HILUX — BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-14010i4Y..YN58..4F;4Y..YN58..SR5;2Y,3Y,4Y..YN51,56,57,65,67..(4F,4H,5F)..SA198308-199807

55D23R,55D23R

sub28800-15020

main28800-15010i22REC..RN61198712-198903

55D23R,55D23R-MF

sub28800-14010

main28800-24030i3Y..YN65..4F;3Y..YN65..ARL;1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME198308-199201

34B19R,34B19R(NS40ZA)

sub28800-24040

main28800-30082i3Y..YN65..4F;22R,1Y,3Y,4Y..RN5#,YN50,52,55,57,60,62,63,67..GEN,ME198308-199201

48D26R,48D26R(N50)

sub28800-30061

main28800-33071i1Y,3Y..YN50,55,57,65..SA198308-198808

32C24R,32C24R(N40)

sub28800-33101

main28800-54040i2L..LN56..4FC198308-198808

95D31R,95D31R(NX120-7)

sub28800-64060

main28800-54140iL,2L,3L..LN5#,6#..MTM198308-199807

75D26R,75D26R-MF

sub28800-54260

main28800-54170iL,2L..LN55,56,65..EUR198308-198912

75D26L,75D26L-MF

sub28800-42080

28800ATERMINAL, BATTERY POSITIVE

main90982-05004i3Y..YN65..4F;3Y..YN65..ARL;1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME198308-198610

34B19R(NS40ZA)

sub90982-05028

main90982-05028i1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME198610-199201

34B19R(NS40ZA)

sub90982-05057

main90982-05030i4YE..YN63198608-198903

55D23R

main90982-05030i22R..RN58..SR5;22R#,1Y,2Y,3Y,4Y..RN50,55,6#,YN5#,6#..EUR,GEN,ME,SA198308-199807

32C24R(N40),48D26R(N50),55D23R

28800BCABLE, BATTERY TO GROUND

main90982-02259i3Y..YN65..4F;3Y..YN65..ARL;1Y#,3Y..YN50,52,55,57,60..ARL,GEN,ME198308-198508

34B19R(NS40ZA)

main90982-02260i1Y,2Y,3Y..YN5#,6#..EUR,GEN,ME,SA198308-198508

32C24R(N40),48D26R(N50),55D23R

main90982-02260i2Y,3Y..YN56,65198508-198608

32C24R(N40),55D23R

main90982-02261iL,2L..LN50,51,55,56,60,61,65198308-199807

75D26R,95D31R(NX120-7)

main90982-02262iL,2L..LN55,56,65..EUR198308-198912

75D26L

main90982-02267i22R..RN5#198604-198808

48D26R(N50)

main90982-02270i1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME198508-199201

34B19R(NS40ZA)

main90982-02271i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN50,51,52,55,56,57,60,62,63,67..(4F,4FC,4H,5F)..(GEN,ME,SA)198508-199807

48D26R(N50),55D23R

main90982-02271i2Y,4Y..YN56,67..EUR198608-198808

32C24R(N40),55D23R

main90982-02271i4YE..YN63198608-198903

55D23R

main90982-02272i22R..RN5#198601-198604

48D26R(N50)

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main90982-01426i22R..RN58..SR5;22R#,1Y#,2Y,3Y,4Y#..RN50,55,6#,YN5#,6#198308-199807

main90982-01427iL,2L..LN55,56,65..EUR198308-198912

2-BATTERY

main90982-01428iL,2L..LN50,51,55,56,60,61,65..MTM198308-199807

1-BATTERY

main90982-01429i2L..LN56..4FC198308-198808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150iL,2L..LN50,51,55,56,60,61,65198308-199807

75D26R,95D31R(NX120-7)

main82821-24010iL,2L..LN55,56,65..EUR198308-198912

75D26L

main82821-24010i22R..RN58..SR5;22R#,1Y#,2Y,3Y,4Y#..RN50,55,6#,YN5#,6#198308-199807

82823DCAP, TERMINAL

main82823-14070iRN58..SR5;RN50,55,6#,YN5#,6#198308-199807

8275189101BLOCK, DRIVER SIDE RELAY

main82751-89101

9011906005

main90119-06005

9017908146

main90179-08146

9046310337

main90463-10337

9046400241

main90464-00241

9161161016

main91611-61016

9165640616

main91656-40616

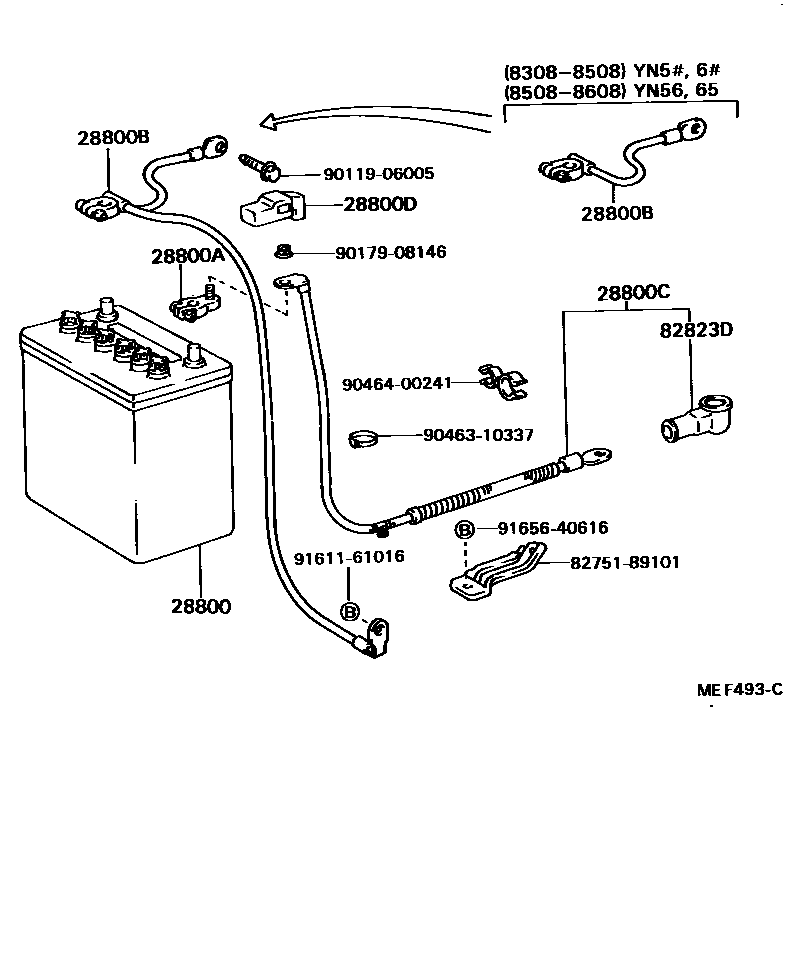

13 parts on this diagram · 2 diagrams in section
