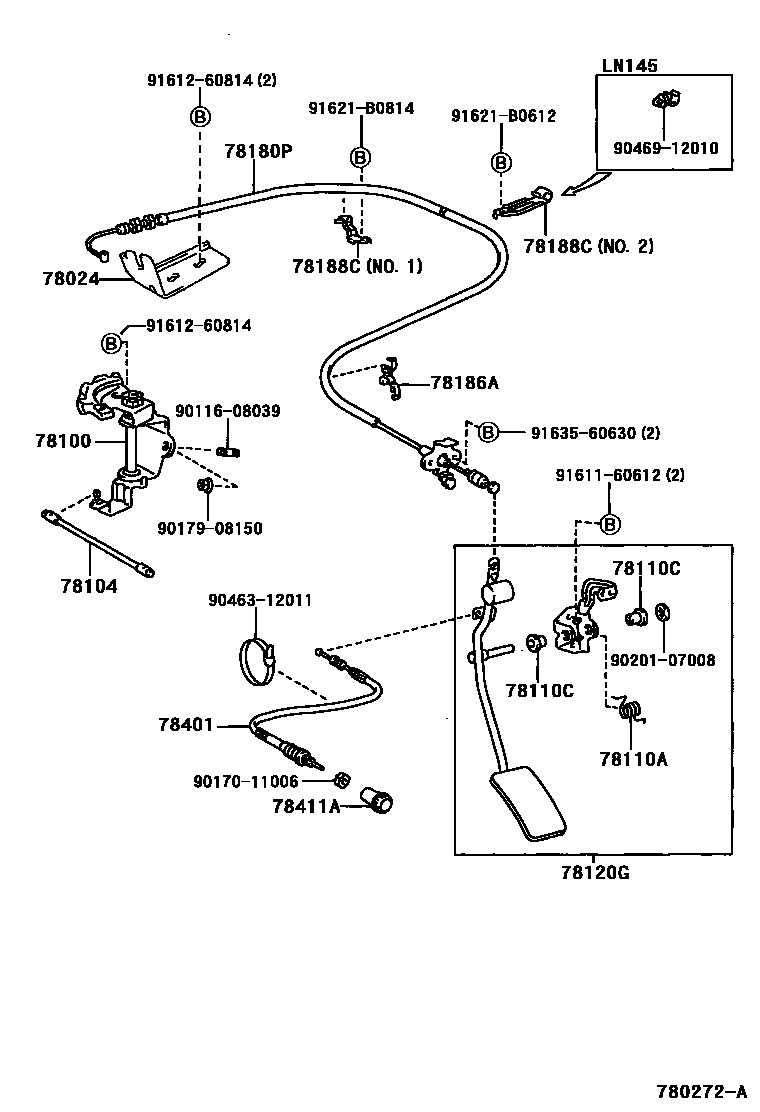

Toyota HILUX — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78100LINK ASSY, ACCELERATOR
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78110CBUSH (FOR ACCELERATOR PEDAL ROD)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78186ACLAMP, ACCELERATOR CONTROL CABLE, NO.3
78188CCLAMP, ACCELERATOR CONTROL CABLE, NO.5
NO.1
NO.2
78401CABLE SUB-ASSY, THROTTLE CONTROL
78411AKNOB, THROTTLE CONTROL CABLE
9011608039
main90116-08039
9017011006
main90170-11006
9017908150
main90179-08150
9020107008
main90201-07008
9046312011
main90463-12011
9046912010
main90469-12010
9161160612
main91611-60612
9161260814
main91612-60814
91621B0612
main91621-B0612
91621B0814
main91621-B0814
9163560630
main91635-60630
22 parts on this diagram · 5 diagrams in section
ACCELERATOR LINK for Toyota HILUX
This section contains 31 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HILUX. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, SPRING (FOR ACCELERATOR PEDAL ROD), BUSH (FOR ACCELERATOR PEDAL ROD).
