Toyota HILUX (VWP) — PARTIAL ENGINE ASSEMBLY

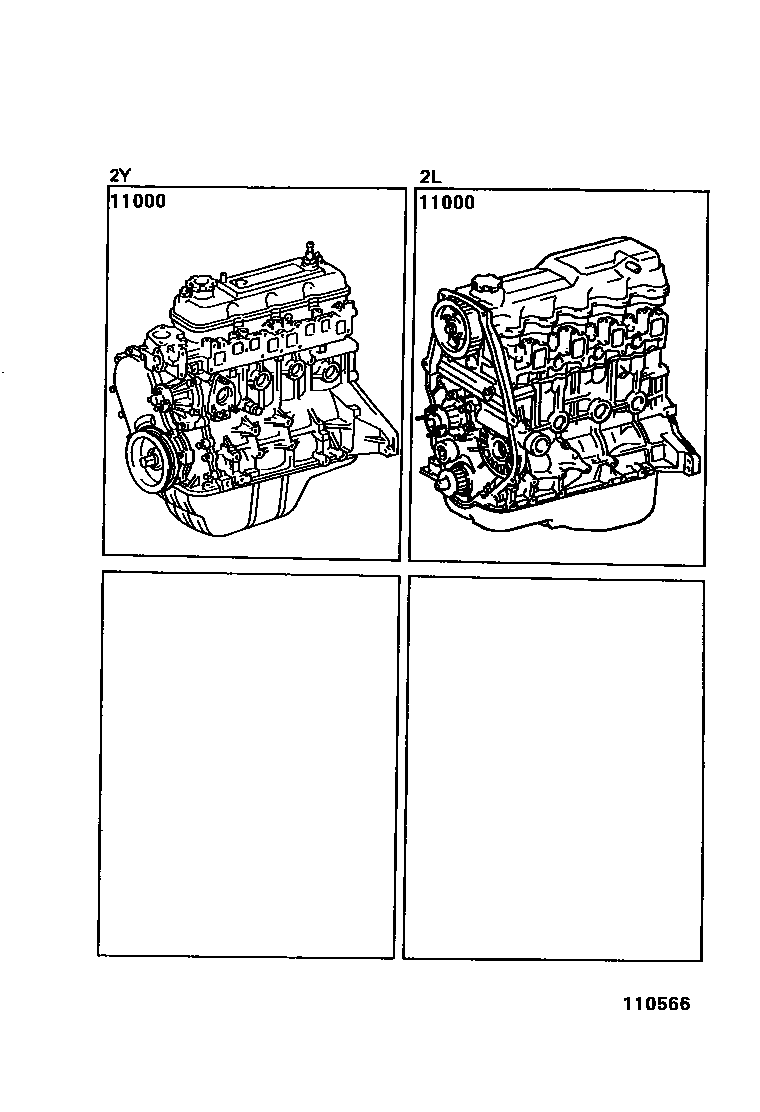

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-54850i198901-199208

main19000-54851i199208-199702

main19000-72290i198901-199303

main19000-72291i199303-199410

1 parts on this diagram · 1 diagram in section
