Toyota HILUX SURF — VENTURI

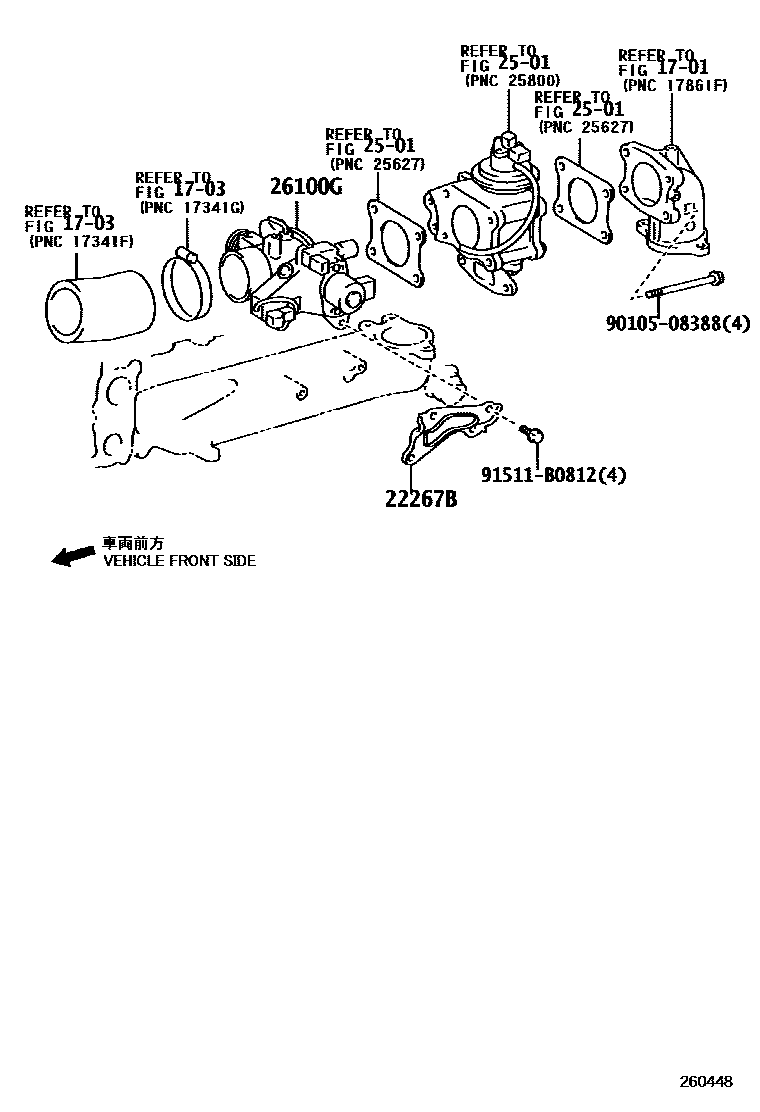

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

22267BBRACKET, THROTTLE BODY

main22267-30010i200211

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

26100GBODY ASSY, DIESEL THROTTLE

main26100-30050i200211

9010508388

main90105-08388

91511B0812

main91511-B0812

7 parts on this diagram · 1 diagram in section

VENTURI for Toyota HILUX SURF

This section contains 7 genuine Toyota parts for the VENTURI system of the Toyota HILUX SURF. Key components include: MANIFOLD, AIR CLEANER, BRACKET, THROTTLE BODY, EXHAUST GAS RECIRCULATION SYSTEM, BODY ASSY, DIESEL THROTTLE.
