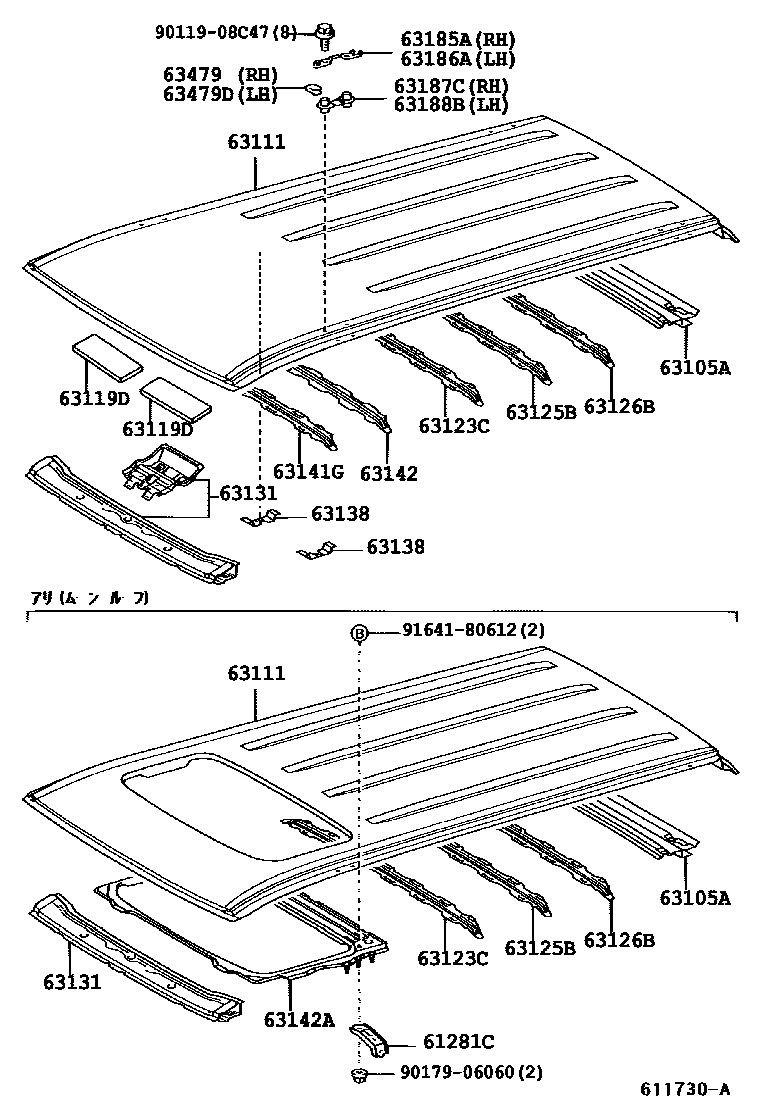

Toyota HILUX SURF — ROOF PANEL & BACK PANEL

61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-60030×2i200508

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63019-35010i200211-200305

main63019-35011i200305-200411

main63019-35012i200411-200508

63111PANEL, ROOF

main63111-35270supersedes 63111-35250i200211-200508

63119DPAD, ROOF PANEL, NO.1

main63119-35010×2i200211-200508

63123CREINFORCEMENT, ROOF PANEL

main63123-35010i200211-200408

63125BREINFORCEMENT, ROOF PANEL, FRONT

main63125-35020i200211-200408

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-35050i200508

63131PANEL, WINDSHIELD HEADER, OUTER

main63102-35040supersedes 63102-35020i200211-200408

63138BRACKET, DOME LAMP, NO.2

main63138-12011×2i200211-200408

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-35040i200508

63142REINFORCEMENT, ROOF PANEL, NO.2

main63143-35020i200211-200408

main63143-35021i200411-200507

main63143-35022i200508-200508

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-60901i200211-200408

63185ABRACKET, ROOF RACK, FRONT RH

main63185-42020×2i200211-200408

63186ABRACKET, ROOF RACK, FRONT LH

main63185-42020×2i200211-200508

63187CBRACKET, ROOF RACK, NO.1 REAR RH

main63187-35020×2i200211-200408

63188BBRACKET, ROOF RACK, NO.1 REAR LH

main63187-35020×2i200211-200408

63479RETAINER, ROOF INNER RACK

main63479-42010×2i200211-200408

63479DRETAINER, ROOF INNER RACK, LH

main63479-42010×2i200211-200508

9011908C47

main90119-08C47

9017906060

main90179-06060

9164180612

main91641-80612

21 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK PANEL for Toyota HILUX SURF

This section contains 68 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota HILUX SURF. Key components include: BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, PAD, ROOF PANEL, NO.1, REINFORCEMENT, ROOF PANEL.
