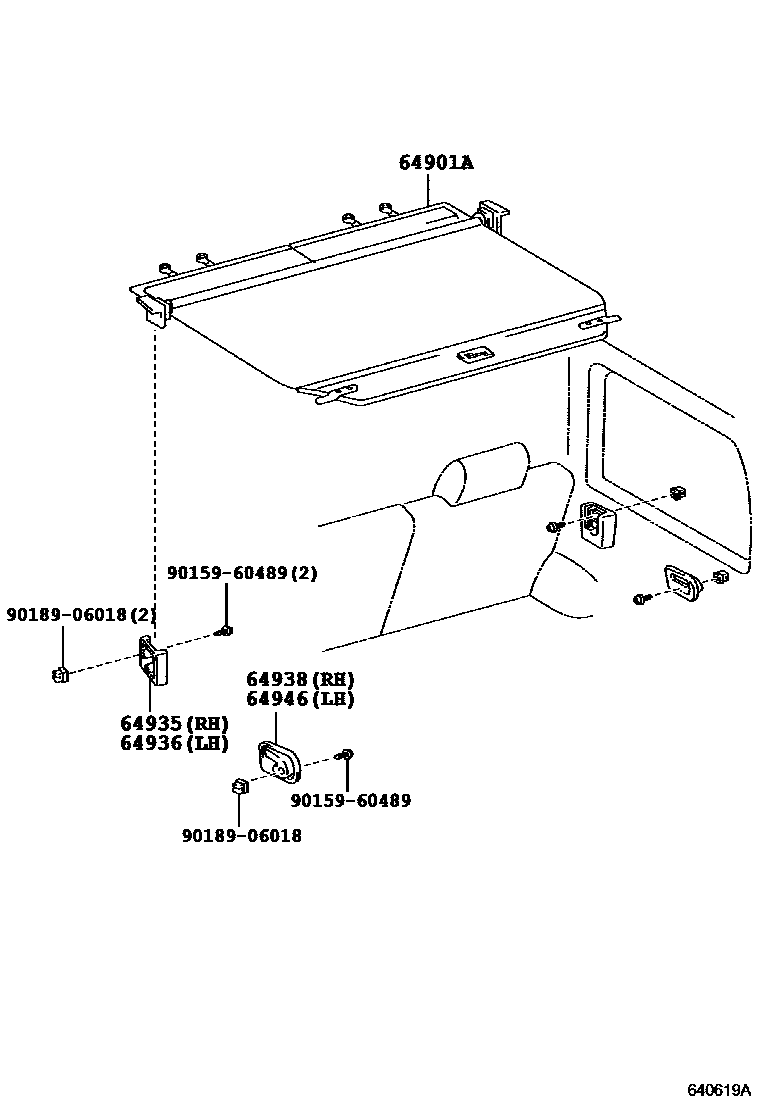

Toyota HILUX SURF — PACKAGE TRAY PANEL

64901ARETRACTOR SUB-ASSY, TONNEAU COVER

main64901-35010-B0i200008-200201

MD.CHARCOAL,TRIM1#

main64901-35010-E0i200008-200201

MD.OAK,TRIM4#

main64901-35011-B0i200201

MD.CHARCOAL,TRIM1#

main64901-35011-E0i200201

MD.OAK,TRIM4#

main64901-35030-B0i199511-199807

MD.MOON MIST,TRIM1#

main64901-35030-B1i199807-200008

MOON MIST,TRIM1#

main64901-35030-E0i199708-199807

OAK,TRIM4#

main64901-35030-E1i199807-200008

MD.OAK,TRIM4#

64935HOLDER, TONNEAU COVER, RH

main64935-35020-B0i199801-199807

main64935-35020-B1i199807-200008

MOON MIST,TRIM1#

main64935-35020-E0i199708-199807

OAK,TRIM4#

main64935-35020-E1i199807-200008

MD.OAK,TRIM4#

main64935-35040-B0i200008

MD.CHARCOAL,TRIM1#

main64935-35040-E0i200008

MD.OAK,TRIM4#

64936HOLDER, TONNEAU COVER, LH

main64936-35020-B0i199801-199807

main64936-35020-B1i199807-200008

MOON MIST,TRIM1#

main64936-35020-E0i199708-199807

OAK,TRIM4#

main64936-35020-E1i199807-200008

MD.OAK,TRIM4#

main64936-35030-B0i200008

MD.CHARCOAL,TRIM1#

main64936-35030-E0i200008

MD.OAK,TRIM4#

64938HOOK, TONNEAU COVER, A

main64938-35020-B0i199511-199807

MD. MOON MIST,TRIM1#

main64938-35020-B1i199807-200008

MOON MIST,TRIM1#

main64938-35020-B2i200008

MD.CHARCOAL,TRIM1#

main64938-35020-E0i199708-199807

OAK,TRIM4#

main64938-35020-E1i199807-200008

MD.OAK,TRIM4#

64946HOOK, TONNEAU COVER, B

main64946-35020-B0i199801-199807

main64946-35020-B1i199807-200008

MOON MIST,TRIM1#

main64946-35020-B2i200008

MD.CHARCOAL,TRIM1#

main64946-35020-E0i199708-199807

OAK,TRIM4#

main64946-35020-E1i199807-200008

MD.OAK,TRIM4#

9015960489

main90159-60489

9018906018

main90189-06018

7 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL for Toyota HILUX SURF

This section contains 7 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota HILUX SURF. Key components include: RETRACTOR SUB-ASSY, TONNEAU COVER, HOLDER, TONNEAU COVER, RH, HOLDER, TONNEAU COVER, LH, HOOK, TONNEAU COVER, A, HOOK, TONNEAU COVER, B.
