Toyota HILUX SURF — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

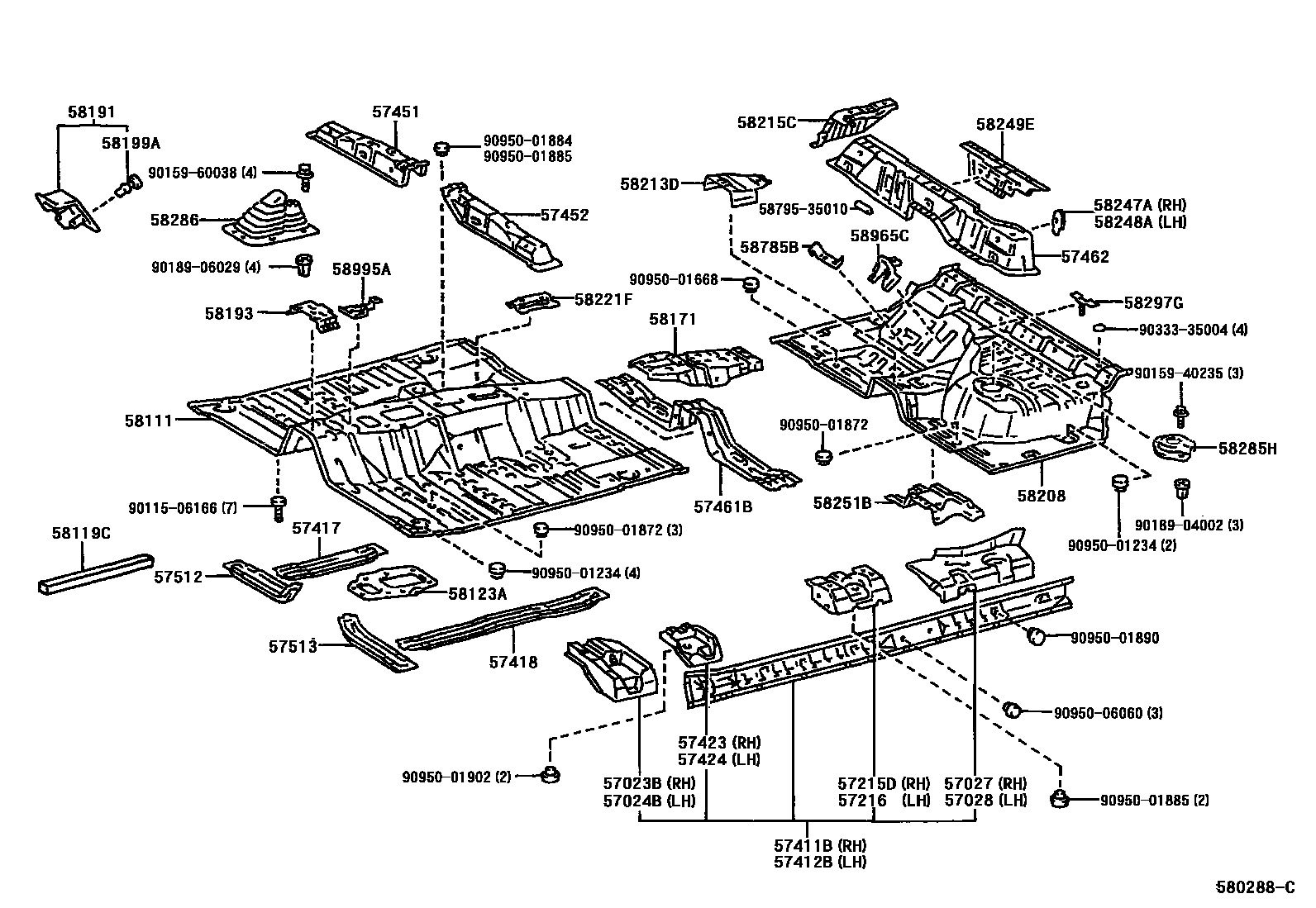

Parts diagram

57023BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-35020i199511-199604

57024BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-35020i199511-199604

57027BRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH

main57027-35010i199511-199604

main57027-35040i199807

57028BRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH

main57028-35010i199511-199604

main57028-35040i199807

57215DBRACKET, BODY MOUNTING, NO.3 RH

main57025-35040i199708

main57215-35030i199511-199604

57216BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH

main57026-35030i199708

main57216-35030i199511-199604

57411BMEMBER, FLOOR SIDE, INNER RH

main57401-35900i199607-199608

main57401-35903i199608-199708

main57401-35904i199708

57412BMEMBER, FLOOR SIDE, INNER LH

main57402-35900i199511-199604

main57402-35903i199608-199708

main57402-35904i199708-199807

main57402-35905i199807

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-35030i199511-199604

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-35030i199511-199604

57423BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-35010i199511-199604

57424BRACKET, FRONT FLOOR REINFORCEMENT, LH

main57424-35010i199604-199607

57451MEMBER, FRONT FLOOR CROSS

main57451-35030i199604-199607

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-35040i199511-199604

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-35020i199511-199604

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57462-35010i199511

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-35010i199604-199607

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-35010i199607

58111PAN, FRONT FLOOR

main58111-35080i199511-199807

main58111-35081i199807-200001

main58111-35082i200001-200008

main58111-35090i199511-199807

main58111-35091i199807-200001

main58111-35092i200001-200008

main58111-35100i199511-199807

main58111-35101i199807-200001

main58111-35102i200001-200008

main58111-35110i199511-199807

main58111-35111i199807-200001

main58111-35112i200001-200008

main58111-35130i199511-199807

main58111-35131i199807-200001

main58111-35132i200001-200008

main58111-35140i199511-199807

main58111-35141i199807-200001

main58111-35142i200001-200008

main58111-35151i199807-200001

main58111-35152i200001-200008

main58111-35171i199807-200001

main58111-35172i200001-200008

58119CCUSHION, FRONT FLOOR

main58119-60030×2i199807

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-35010i199511-199608

main58123-35020i199608-200008

main58123-35030i199608-200008

main58123-35040i199807-200008

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-35010i199604-199607

main58171-35011i199807-200001

main58171-35012i200001-200008

main58171-35020i200008

58191FOOTREST, FRONT FLOOR

main58190-35020i199511

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58109-60010i199807

main58193-35030i199511-199604

main58193-35050i199708-199711

main58193-35051i199711-199807

58199ACLIP, FOOTREST, NO.2

main58199-20030×2i199511

58208PAN, CENTER FLOOR

main58211-35010i199511

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-35010i199511

58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH

main58215-35010i199511

58221FREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-35010i199604-199607

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-35010i199511

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-35010i199511

58249EREINFORCEMENT, REAR SEAT MOUNTING

main58249-35010i199511

58251BBRACE, FLOOR PANEL, FRONT

main58251-35010i199511

58285HCOVER, CENTER FLOOR HOLE

main58285-35010i199511

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-35110i199511-200008

main58280-35130i199511-200008

58297GRETAINER, FLOOR CLAMP

main58297-35020×3i199511

58785BBRACKET, TOOL BAG BAND

main58785-89106i199511

58965CHOLDER, JACK

main58965-35030i199511

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-35020i199511-199604

5879535010BAND, JACK CLAMP, NO.1

main58795-35010

9011506166

main90115-06166

9015940235

main90159-40235

9015960038

main90159-60038

9018904002

main90189-04002

9018906029

main90189-06029

9033335004

main90333-35004

9095001234

main90950-01234

9095001668

main90950-01668

9095001872

main90950-01872

9095001884

main90950-01884

9095001885

main90950-01885

9095001890

main90950-01890

9095001902

main90950-01902

9095006060

main90950-06060

54 parts on this diagram · 2 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX SURF

This section contains 77 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX SURF. Key components include: STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, COVER, SIDE DOOR STEP PLATE, REAR LH, COVER, SIDE DOOR STEP PLATE, FRONT RH, COVER, SIDE DOOR STEP PLATE, FRONT LH.
