Toyota HILUX SURF — ACCELERATOR LINK

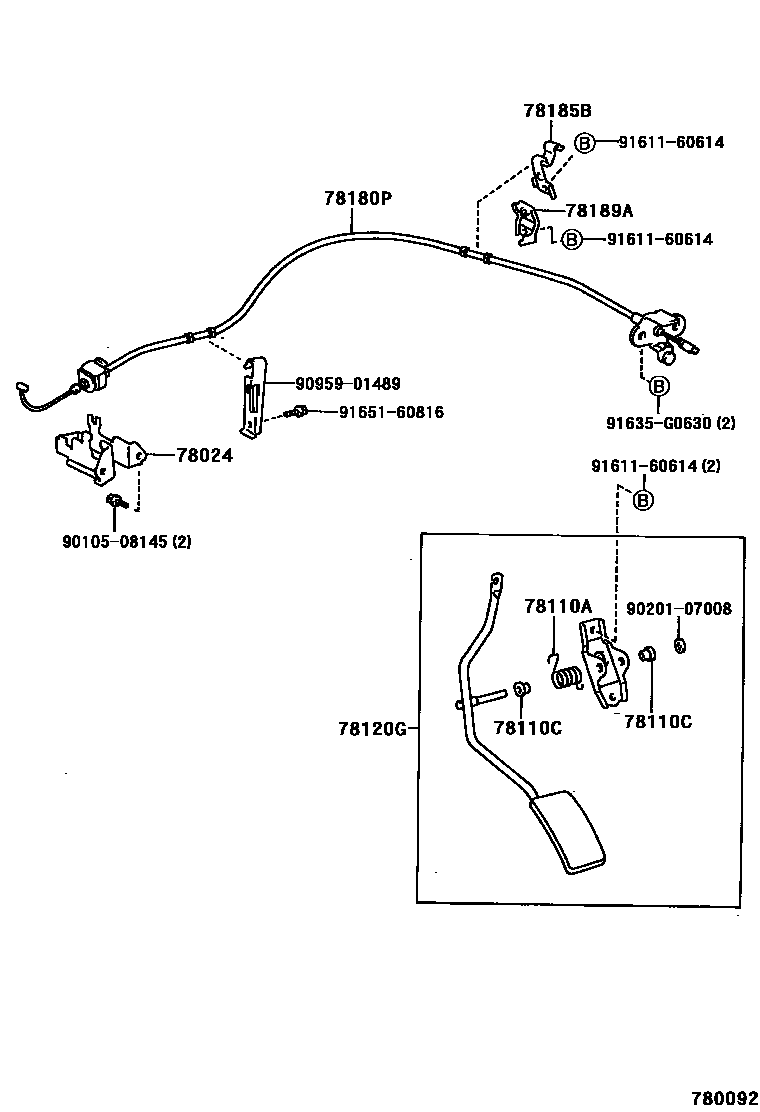

Parts diagram

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-35020i199607-199807

main78024-60030i199511-199807

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03085i199807-200008

main90959-03088i199511

main90959-03089i199511

main90959-03299i200008

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-08063×2i199511

78120GROD ASSY, ACCELERATOR PEDAL

main78010-35010i199807-200008

main78010-35060i200008

main78120-35290i199511-200008

main78120-35300i199511

main78120-35310i199511

main78120-35320i199511-199604

main78120-35321i199604-199807

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-35210i199511-199807

main78180-35220i199511

main78180-35230i199511

main78180-35280i199607-199807

78185BBRACKET, ACCEL CONTROL NO.6 ROD, REAR

main78185-35020i199807

main78185-35030i199511

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-35010i199511-199807

9010508145

main90105-08145

9020107008

main90201-07008

9095901489

main90959-01489

9161160614

main91611-60614

91635G0630

main91635-G0630

9165160816

main91651-60816

13 parts on this diagram · 6 diagrams in section

ACCELERATOR LINK for Toyota HILUX SURF

This section contains 31 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HILUX SURF. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), BUSH (FOR ACCELERATOR PEDAL ROD), ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR CONTROL.
