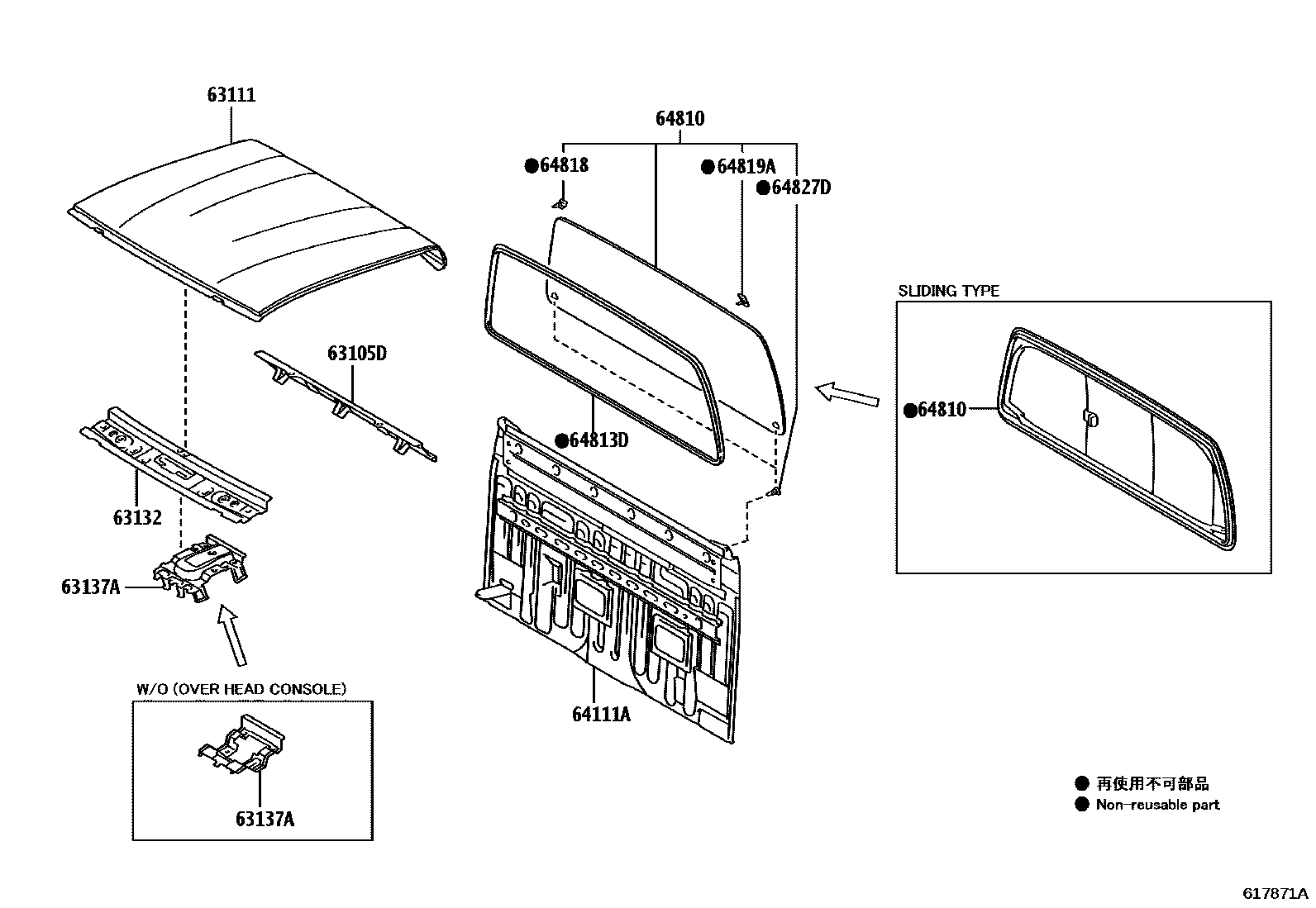

Toyota HILUX (SCB/XTR) — ROOF PANEL & BACK PANEL
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
main63111-KK030iGUN126..XTR..6F..IV3; GUN126..XTR..6FC..IV3;GUN120,122,125,126,13#..XTR..THP..CBU202308-202407
DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITH(AU-DCM)
DATA COMMUNICATION MODULE-WITH(AU-DCM)
63132PANEL, WINDSHIELD HEADER, INNER
63137ABRACKET, DOME LAMP, NO.1
main63137-KK010supersedes 63137-KK020iGUN122,125,135,TGN121,126..THP..L..(GEN,LA); GUN125..XTR..GEN;GUN11#,12#,13#,TGN11#,12#,XPN135..ARL,GCC,IDN,TH202308-202407
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
64111APANEL, BACK
main64101-KK030iGUN122..RHD..SCB;GUN122..LHD..THP;GUN125,135..SCB..S;GUN125,135,TGN121..SCB..(AGTP,THP);GUN11#,120,121,126,136,TGN11#,120,126,136..SCB202308-202410
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)
64810WINDOW ASSY, BACK
main64801-0K112iGUN125,135..RHD..L..(GEN,TH); GUN125..ARL,TH;GUN125..XTR..GEN;GUN126,135..(H,S)..TH;GUN120,122,136..XTR..THP;GUN126,135,TGN121..ARL..IV3202308-202407
REAR WINDOW DEFOGGER-WITH
main64801-0K122iGUN135..THP..L..CBU;GUN112,12#,TGN110,121,126,XPN135..SCB..THP..(GEN,IDN,LA,PH,TH)202308-202407
main64801-0K151supersedes 64801-0K141iGUN125..LHD..L..SA;GUN125..XTR..S..SA;GUN122,135,LAN125,TGN120..L..SA; GUN135..6F..S..SA;GUN125,TGN136..RHD..S..SA; TGN121..SA;GUN125..LHD..SCB..S202402-202410
BACK GLASS-FIX TYPE(GREEN); REAR WINDOW DEFOGGER-WITHOUT
REAR WINDOW DEFOGGER-WITH
main64810-0K060iGUN125..LHD..SCB..S; GUN125..XTR..S..SA;GUN125,126,13#,TGN136..RHD..(H,S)..SA202402-202410
BACK GLASS-SLIDING TYPE(PRIVACY); BACK GLASS-SLIDING TYPE(PRIVACY)&REAR WINDOW DEFOGGER-WITHOUT
64813DDAM, BACK WINDOW GLASS ADHESIVE
64818SPACER, BACK WINDOW GLASS
64819ASPACER, BACK WINDOW GLASS, NO.2
64827DCLIP, BACK WINDOW GLASS
main64827-0K120×2iGUN125..LHD..SA;GUN122,135,LAN125,TGN120,121..L..SA; GUN135..6F..S..SA;GUN125,TGN136..RHD..S..SA202402-202410
BACK GLASS-FIX TYPE(GREEN)
10 parts on this diagram · 2 diagrams in section
ROOF PANEL & BACK PANEL for Toyota HILUX (SCB/XTR)
This section contains 14 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota HILUX (SCB/XTR). Key components include: FRAME SUB-ASSY, BACK WINDOW, UPPER, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, BRACKET, DOME LAMP, NO.1, REINFORCEMENT, ROOF PANEL, NO.1.
