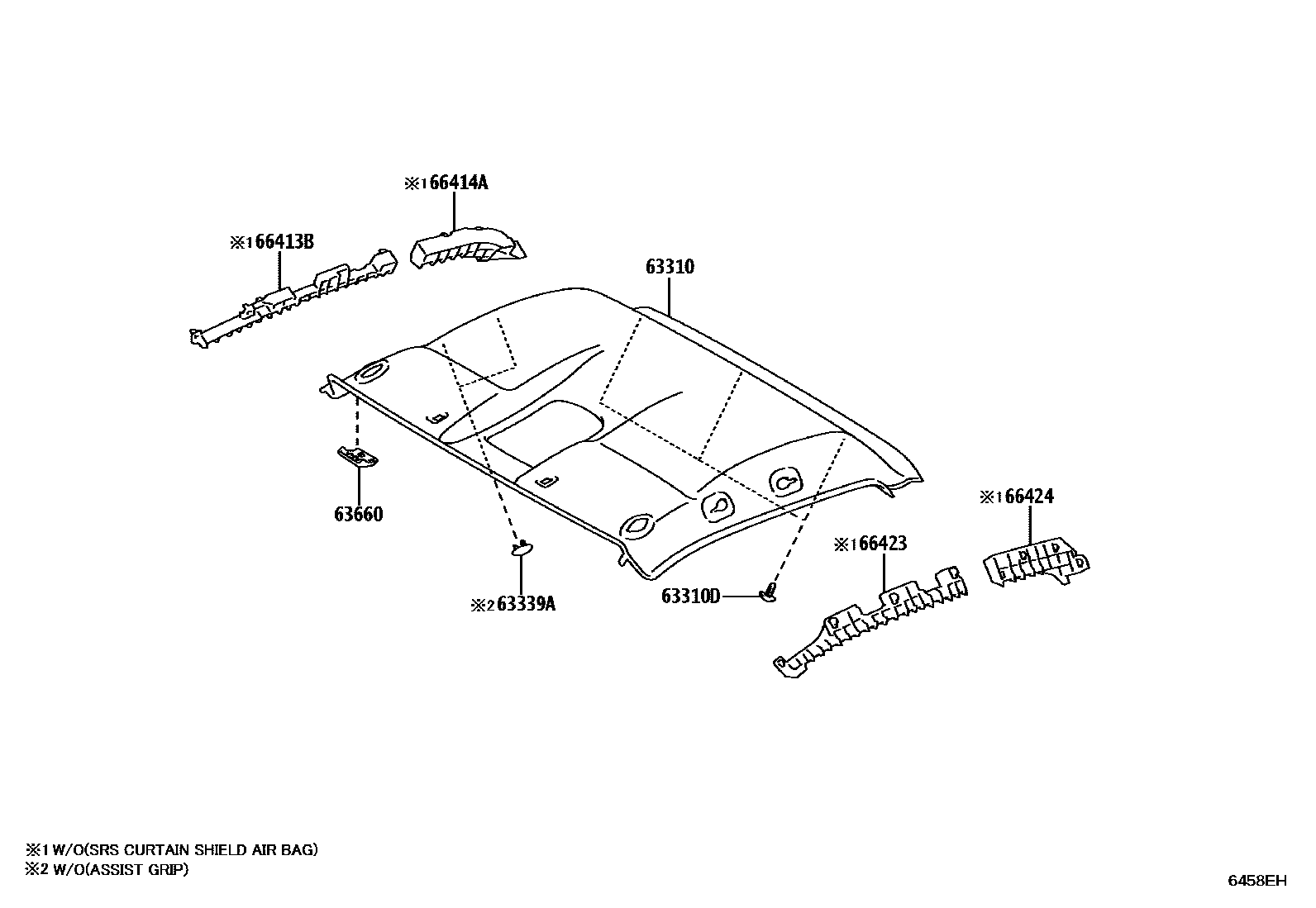

Toyota HILUX (SCB/XTR) — ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
main63310-0KB21-B0supersedes 63310-0KA41-B0iGUN125..AGTP..LA..CBU; GUN135..AGTP..LA;GUN126,TGN126..AGTP; GUN135..BZAG;GUN125..BZAG..CBU;GUN125,TGN136..AGTP..IV3202411
ACTIVE SAFETY PACKAGE-WITHOUT&FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
main63310-F0120-B0supersedes 63310-F0110-B0iGUN122..SA..IV3;GUN122,TGN121..LHD..SA;GUN125,135..RHD..SCB..L..SA; GUN125,135,TGN136..RHD..SCB..MTM..S..SA; GUN125,135..KEN;GUN122..RHD..SA..CBU;GUN125..LHD..SCB..SA;GUN126,LAN125,TGN120..SCB..MTM..SA; GUN125..RHD..6F..S..SA..CBU202411
AUDIO-*DA(FOR EMERGING MARKET),LT. GRAY,TRIM2#; AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
EXPORT FROM SA,LT. GRAY,TRIM20; LT. GRAY,TRIM2#
LT. GRAY,TRIM2#; LT. GRAY,TRIM20
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#
main63310-F0410-B0iGUN112,12#,135,TGN121..SCB..(ARL,IDN,TH); GUN112,122,125,126,TGN11#,12#..GCC; GUN122,125,135,TGN121,126..THP..L..(GEN,LA)202408
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#; LT. GRAY,TRIM2#; LT. GRAY,TRIM2#,3#
main63310-F0420-B0iGUN111; TGN121..L..GCC; TGN126..S;GUN112,122..L..GCC;GUN125,126,TGN111..GCC202408
AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,3#; AUDIO-WITHOUT & WITH(ACCESSORY AUDIO & DAB),LT. GRAY,TRIM2#,3#; LT. GRAY,TRIM2#,3#; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,3#
main63310-F0430-B0iGUN126,135..6FC..H..TH; GUN126..XTR..IV3;GUN135..6FC..(L,S)..TH;GUN126,135..XTR..6F..TH;GUN120,122,125,136..XTR..THP202408
LT. GRAY,TRIM2#; LT. GRAY,TRIM20
BLACK,TRIM21
LT. GRAY,TRIM2#
main63310-0KA41-B0supersedes 63310-0KQ11-B0iGUN125..AGTP..LA..CBU; GUN135..AGTP..LA;GUN126,TGN126..AGTP202411
ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH&FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLEBOX),LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX),LT. GRAY,TRIM2#
main63310-F0110-B0iGUN122..RHD..SA..CBU; GUN122..SA..IV3;GUN122,TGN121..LHD..SA;GUN125,135..RHD..SCB..L..SA; GUN125,126..RHD..6F..S..SA; GUN125,126..RHD..6F..S..SA..CBU202411
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&FRONT PERSONAL LAMP-WITH(BULB TYPE)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#; ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&FRONT PERSONAL LAMP-WITH(BULB TYPE)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#; FRONT PERSONAL LAMP-WITH(BULB TYPE),LT. GRAY,TRIM2#; LT. GRAY,TRIM2#
EXPORT FROM SA,BLACK,TRIM21
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#
ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM20
ACTIVE SAFETY PACKAGE-WITH,BLACK,TRIM21
63310DCLIP, ROOF HEADLINING
main90467-T0004-B0×3iGUN11#,122,125,126,TGN11#,12#..GCC; GUN126,136..XTR..SA;GUN126,135..6FC..H..TH; GUN135..6F;GUN126..ARL..CBU;GUN126..6F..H..TH;GUN126,136..SCB..H;GUN135..6FC..(L,S);GUN126,136..(L,S)..(ARL,BZAG,LA,SA,TH);GUN112,120,121,122,125,LAN125,TGN12#,136..ARL,BZAG,GEN,IDN,KEN,LA,MA,PH,SA,TH202408
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20
BLACK,TRIM21
63339ACOVER, ROOF HEADLINING SERVICE HOLE
main63339-0K030-B0×2iGUN11#,122,125,126,TGN11#,12#..GCC; GUN135,TGN121..L..SA;GUN135..(L,S)..(KEN,TH);GUN125..6F..(L,S)..(GEN,IDN,KEN,MA,SA,TH);GUN112,120,121,122,126,LAN125,TGN120,136..(L,S)..(GEN,PH,SA,TH)202408
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#
63660COVER ASSY, ROOF HEADLINING TRIM, NO.1
main63359-0K040-B0iGUN111; GUN126..ARL..CBU; TGN121..L..GCC; TGN126..S;GUN112,122..L..GCC;GUN125,126,TGN111..GCC202408
AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM2#,3#; AUDIO-WITHOUT & WITH(ACCESSORY AUDIO & DAB),LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#; UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM2#,3#
main63359-KK010-B0iGUN122..SA..IV3; GUN126,136..XTR..SA; GUN135..S..SA;GUN126..SCB..H;GUN125,136,TGN136..RHD..SCB..(H,S)..SA202411
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)&AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM2#; LT.GRAY,TRIM2#; LT.GRAY,TRIM20
BLACK,TRIM21
66413BSPACER, SIDE RAIL, FRONT RH
main66413-0K080iGUN11#,12#,135,TGN11#,12#..(MAP,THP)..(L,S)..(GCC,GEN,IDN,LA,MA,PH,TH); GUN135..S..TH;GUN125..S..GEN;GUN125..IDN,TH;GUN122,TGN121..GEN202408
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66413-KK020iGUN125..AGTP..LA..CBU;GUN125,TGN136..MTM..(KEN,SA);GUN135..(AGTP,KENP,SAP)..6F..(KEN,LA,SA);GUN122,126,LAN125,TGN12#..(AGTP,SAP)..(L,S); TGN120,136..SA;GUN125,135..RHD..6F..S..SA202411
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
66414ASPACER, SIDE RAIL, REAR RH
main66414-0K080iGUN125..IDN;GUN122,TGN121..GEN; GUN126..SCB..(BZAG,GCC,LA,TH);GUN125..L..(GCC,GEN,IDN,LA,MA)..CBU;GUN11#,120,121,122,135,TGN11#,12#..SCB..(GCC,GEN,LA,PH,TH)202408
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66414-0K090iGUN125..THP..S;GUN135..XTR..6F..S;GUN135..6FC..S..TH; GUN135..XTR..6F..(L,S);GUN135..6FC..(L,S)..TH;GUN120,122,125..XTR..(L,S)..CBU202408
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66414-KK030iGUN122,125,126,135,LAN125,TGN120,121,136..SCB..MTM..(KEN,SA); TGN120,136..SA;GUN125,135..RHD..SCB..6F..S..SA202411
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
66423SPACER, SIDE RAIL, FRONT LH
main66423-0K080iGUN11#,12#,135,TGN11#,12#..(MAP,THP)..(L,S)..(GCC,GEN,IDN,LA,MA,PH,TH); GUN135..S..TH;GUN125..S..GEN;GUN125..IDN,TH;GUN122,TGN121..GEN202408
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66423-KK020iGUN125..AGTP..LA..CBU;GUN125,TGN136..MTM..(KEN,SA);GUN135..(AGTP,KENP,SAP)..6F..(KEN,LA,SA);GUN122,126,LAN125,TGN12#..(AGTP,SAP)..(L,S); TGN120,136..SA;GUN125,135..RHD..6F..S..SA202411
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
66424SPACER, SIDE RAIL, REAR LH
main66424-0K080iGUN125..IDN;GUN122,TGN121..GEN; GUN126..SCB..(BZAG,GCC,LA,TH);GUN125..L..(GCC,GEN,IDN,LA,MA)..CBU;GUN11#,120,121,122,135,TGN11#,12#..SCB..(GCC,GEN,LA,PH,TH)202408
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66424-0K090iGUN125..THP..S;GUN135..XTR..6F..S;GUN135..6FC..S..TH; GUN135..XTR..6F..(L,S);GUN135..6FC..(L,S)..TH;GUN120,122,125..XTR..(L,S)..CBU202408
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main66424-KK030iGUN122,125,126,135,LAN125,TGN120,121,136..SCB..MTM..(KEN,SA); TGN120,136..SA;GUN125,135..RHD..SCB..6F..S..SA202411
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
8 parts on this diagram · 2 diagrams in section
ROOF HEADLINING & SILENCER PAD for Toyota HILUX (SCB/XTR)
This section contains 10 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota HILUX (SCB/XTR). Key components include: HEADLINING ASSY, ROOF, CLIP, ROOF HEADLINING, COVER, ROOF HEADLINING SERVICE HOLE, COVER ASSY, ROOF HEADLINING TRIM, NO.1, SPACER, SIDE RAIL, FRONT RH.
