Toyota HILUX (SCB/XTR) — HEATING & AIR CONDITIONING - WATER PIPING
1603RADIATOR & WATER OUTLET
87124CLAMP, HEATER
main87124-0K150iGUN125,135..(L,S)..TH; GUN126..6FC..L..TH;GUN125,135..(L,S)..TH; GUN135..H;GUN126..H,S;GUN135..(KENP,SAP,THP)..(ARL,KEN,LA,SA);GUN11#,122,125,136..ARL,GCC,GEN,KEN,LA,SA202408
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
8714HEATING & AIR CONDITIONING - COOLER UNIT
87245AHOSE, HEATER WATER, INLET A
main87245-0KE02iGUN125,135..(L,S)..TH; GUN126..6FC..L..TH;GUN125,135..(L,S)..TH; GUN135..H;GUN126..H,S;GUN11#,122,125,13#..(KENP,SAP,THP)..(ARL,GCC,GEN,KEN,LA,SA)202408
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
87246AHOSE, HEATER WATER, OUTLET A
main87245-0KE11iGUN125,135..(L,S)..TH; GUN126..6FC..L..TH;GUN125,135..(L,S)..TH; GUN135..H;GUN126..H,S;GUN11#,122,125,13#..(KENP,SAP,THP)..(ARL,GCC,GEN,KEN,LA,SA)202408
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
90466T0020
main90466-T0020

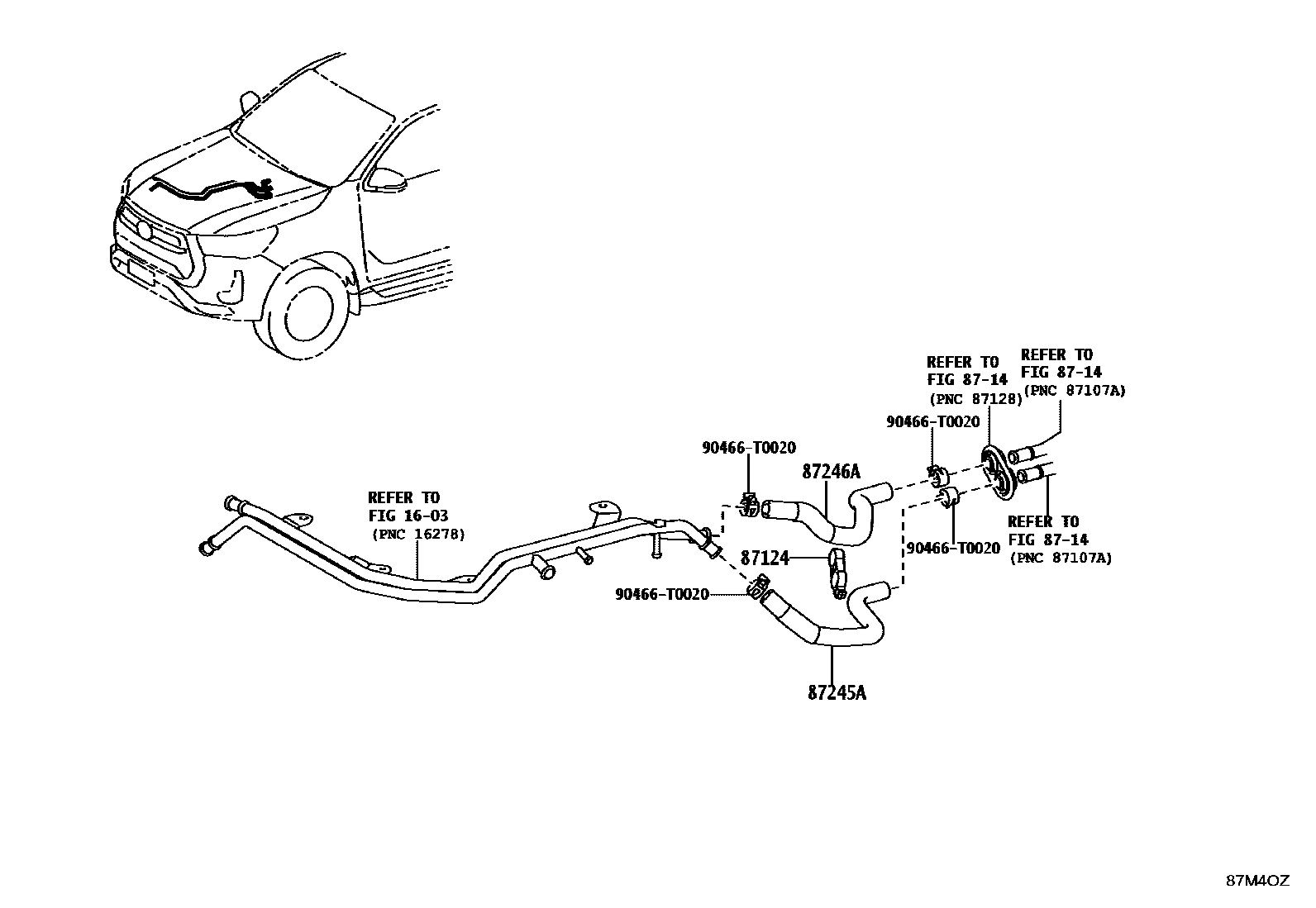

6 parts on this diagram · 4 diagrams in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota HILUX (SCB/XTR)
This section contains 13 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota HILUX (SCB/XTR). Key components include: CYLINDER HEAD, RADIATOR & WATER OUTLET, CLAMP, HEATER, HEATING & AIR CONDITIONING - COOLER UNIT.
