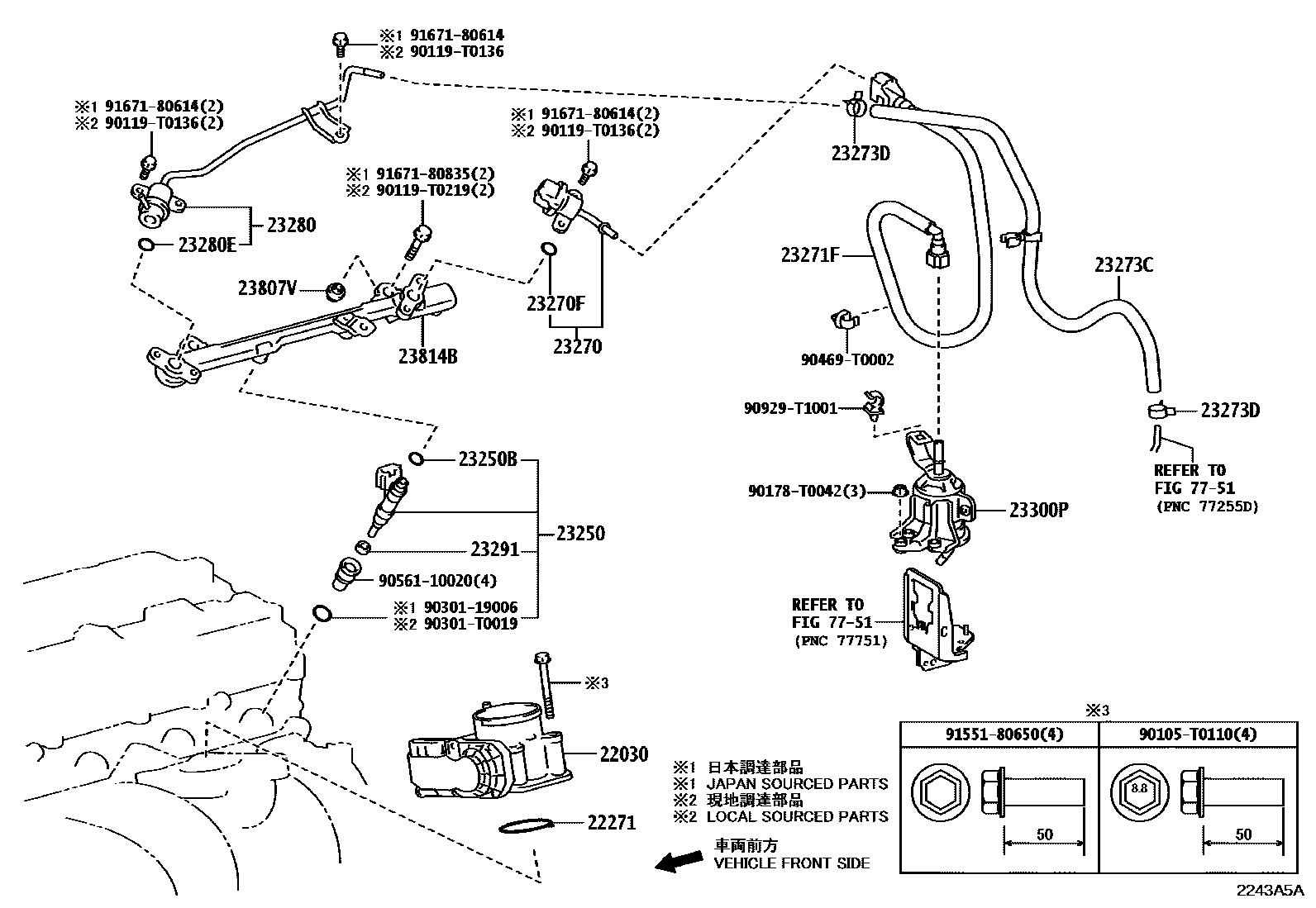

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C030i202408

(L); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)

main22030-0T120i202408

(L); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)

main22030-37050i202408

(J)

main22030-75040i202408

(J)

22271GASKET, THROTTLE BODY

main22271-0C021i202408

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main22271-37010i202408

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

23250INJECTOR ASSY, FUEL

main23209-09300×4i202408

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IDNSOURCED PARTS; IDN SOURCED PARTS

main23209-09310×4i202408

THA SOURCED PARTS

main23209-09320×4i202408

(L); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)

main23209-79215×4i202408

(J)

main23209-79225×4i202408

JAPAN SOURCED PARTS

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i202408

(J); ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main90301-07042×4i202408

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main90301-T0051×4i202408

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-75050i202408

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i202408

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

23271FHOSE, FUEL

main23271-0C071i202408

23273CHOSE, FUEL, NO.2

main23273-0C171i202408

23273DCLIP(FOR FUEL HOSE NO.2)

main90466-T0040×2i202408

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75100i202408

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07037i202408

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010×4i202408

(L); ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),THA SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS; IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS

main23291-0C020×4i202408

ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; IDN SOURCED PARTS

main23291-73010×4i202408

(J)

23300PFILTER, FUEL(FOR EFI)

main23300-75140i202408

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-0C010×2i202408

(L); ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(L); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)

main23891-75020×2i202408

(J); ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),(J)

23814BPIPE, FUEL DELIVERY

main23814-0C030i202408

(L); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),(L); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)

main23814-75110i202408

(J)

7751FUEL TANK & TUBE

→ Go to FIG 77-51

90105T0110

main90105-T0110

90119T0136

main90119-T0136

90119T0219

main90119-T0219

90178T0042

main90178-T0042
