Toyota HILUX (SCB/XTR) — CAUTION PLATE
11285ALABEL, COOLANT SYSTEM NOTICE
main11285-0E010i1GDFTV..GUN126..6FC..L..TH;2GDFTV..GUN125,135..(L,S)..TH; 2GDFTV..GUN125,135..(L,S)..TH; 2GDFTV..GUN135..H;1GDFTV..GUN126..H,S;1GDFTV..GUN126..AGTP;1GDFTV,2GDFTV..GUN11#,122,125,13#..ARL,BZAG,GCC,GEN,KEN,LA,SA202408
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL
11285FLABEL, COOLANT SYSTEM CAUTION
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
11295BLABEL, ENGINE SERVICE NOTICE, NO.1
main11295-0E010i1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN122,125,126,13#,LAN125,TGN12#,136..AGTP,KENP,SAP202411
11298BLABEL, EMISSION CONTROL INFORMATION
17792DLABEL, EMISSION CONTROL DEVICE INFORMATION
main17792-11750i1GDFTV..GUN126..LA;2GDFTV..GUN125..THP..LA; 2GDFTV..GUN112..L..GCC; 2GDFTV..GUN112..L..GCC;2GDFTV..GUN125..AGTP..LA..CBU; 2GDFTV..GUN112..L;2GDFTV..GUN125..BZAG,TH;2GDFTV..GUN125..AGTP..LA;1GDFTV,2GDFTV..GUN111,120,121,122,126,135..(6F,6FC)..(BZAG,GCC,TH); 2GDFTV..GUN112..S;2GDFTV..GUN125..GCC;2GDFTV..GUN122..S..IV3; 2GDFTV..GUN122..L..GCC;2GDFTV..GUN122..GCC..CBU;2GDFTV..GUN125..RHD..GEN; 2GDFTV..GUN125..GCC202408
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
74515APLATE, THEFT WARNING
74515CLABEL, THEFT WARNING INFORMATION
main74515-0K020×2iGUN125,135..RHD..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA; GUN125..RHD..6F..S..SA..CBU;GUN122,126..RHD..MTM..(H,L)..SA..CBU; GUN126..S..SA;GUN125..S..KEN;GUN125..XTR..SA;GUN125..LHD..SCB..S; GUN126..S..SA;GUN125..XTR..L..CBU202411
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); EXPORT FROM SA
main74515-42010×2iGUN122..RHD..SA..CBU;GUN125..RHD..6F..S..SA..CBU; GUN126..H..SA;GUN125,135..RHD..S..SA;GUN122,136,TGN120,136..RHD..SA202411
EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
74559BLABEL, FUEL INFORMATION
74751LABEL, TIRE PRESSURE INFORMATION
TIRE & DISC WHEEL-205/70R15C STEEL
main42661-0KM70iGUN121,TGN121..ARL,GCC,TH;GUN11#,122,TGN11#,120..GCC,GEN; GUN122..SCB..TH;GUN112,120,TGN121..SCB..(GEN,TH); TGN121..GEN..CBU202408
TIRE & DISC WHEEL-215/65R16C ALUMINUM; TIRE & DISC WHEEL-215/65R16C STEEL
TIRE & DISC WHEEL-205R16C STEEL
main42661-0KN40iGUN125..SCB..L..SA;GUN135..RHD..SCB..L..CBU;GUN125,126..SCB..S..(KEN,SA); GUN135,TGN136..SCB..MTM..S202411
SPEED METER-KM/H
main42661-0KS20iGUN125,126..RHD..S..SA; GUN125..LHD..SCB..S; GUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA202411
SPEED METER-KM/H & WITH(*MID); TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/60R18 ALUMINUM
TIRE & DISC WHEEL-205/70R15C STEEL
TIRE & DISC WHEEL-215/65R16C STEEL
TIRE & DISC WHEEL-215/65R16C ALUMINUM
TIRE & DISC WHEEL-205R16C STEEL
TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM
TIRE & DISC WHEEL-265/60R18 ALUMINUM
TIRE & DISC WHEEL-265/60R18 ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM
TIRE & DISC WHEEL-265/60R18 ALUMINUM
88723HLABEL, COOLER SERVICE CAUTION
main88723-0K261iGUN122..GCC,PH;GUN122..RHD..GEN;GUN11#,125,126,13#,TGN11#,12#..ARL,GCC,GEN,IDN; GUN122..LHD..GEN; TGN126..S;TGN121..GEN..CBU;GUN112,122..L..GCC;GUN111,125,126,TGN111..GCC202408
FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
main88723-0K321iGUN122,125,135,TGN120..RHD..L..SA; GUN122,125..LHD..L..SA; GUN125,135..L..KEN;GUN122,125..LHD..L..SA;GUN125,135..S..(KEN,SA);GUN126,136,LAN125,TGN121,136..SA202411
FRONT AIR CONDITIONER-COOLER LESS; FRONT AIR CONDITIONER-MANUAL
main88723-0K350iGUN122..LHD..GEN; GUN125,135,TGN126..THP..LA; GUN125,TGN126..THP..LA; TGN121..GEN..CBU202408
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

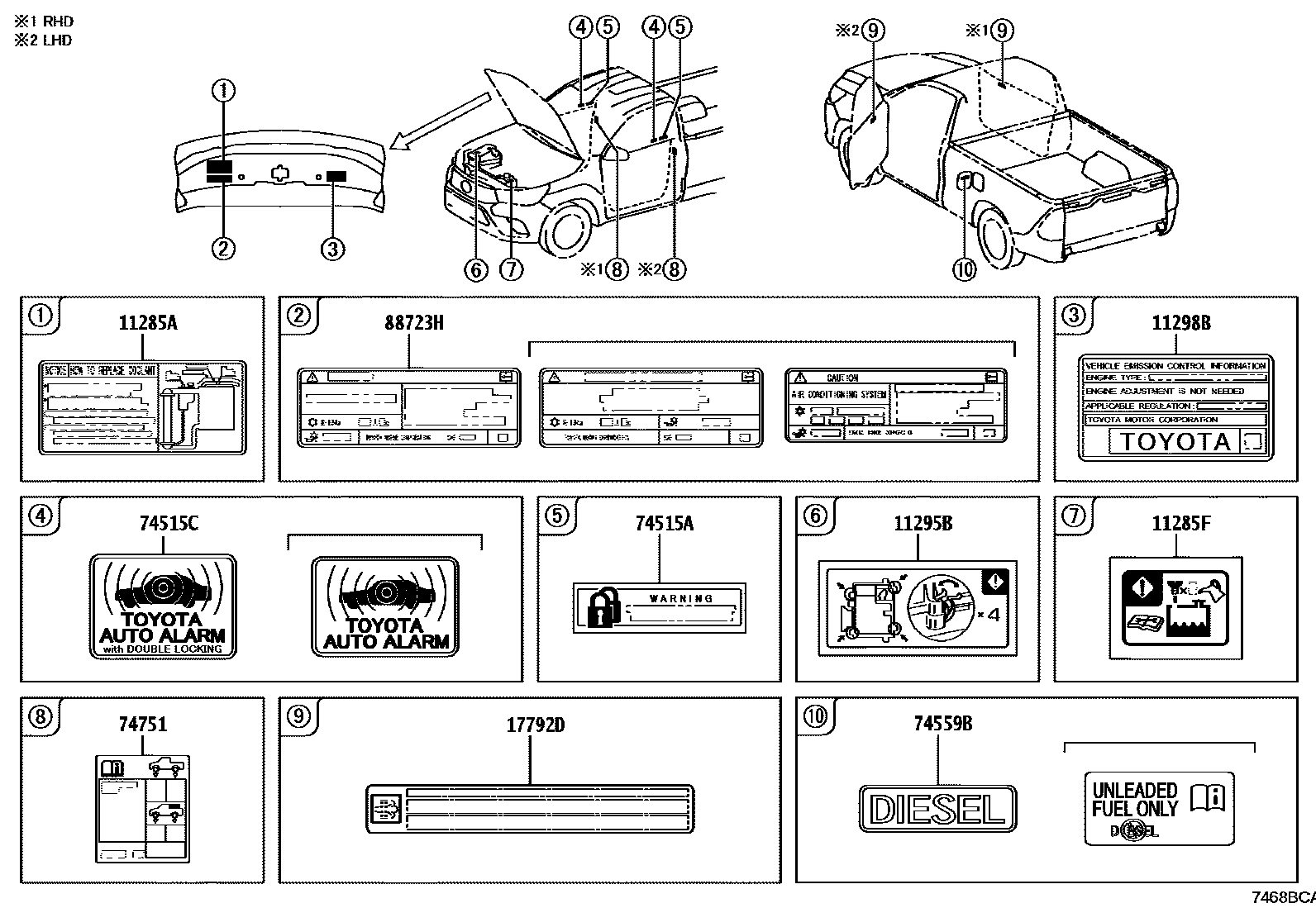

10 parts on this diagram · 1 diagram in section
CAUTION PLATE for Toyota HILUX (SCB/XTR)
This section contains 10 genuine Toyota parts for the CAUTION PLATE system of the Toyota HILUX (SCB/XTR). Key components include: LABEL, COOLANT SYSTEM NOTICE, LABEL, COOLANT SYSTEM CAUTION, LABEL, ENGINE SERVICE NOTICE, NO.1, LABEL, EMISSION CONTROL INFORMATION, LABEL, EMISSION CONTROL DEVICE INFORMATION.
