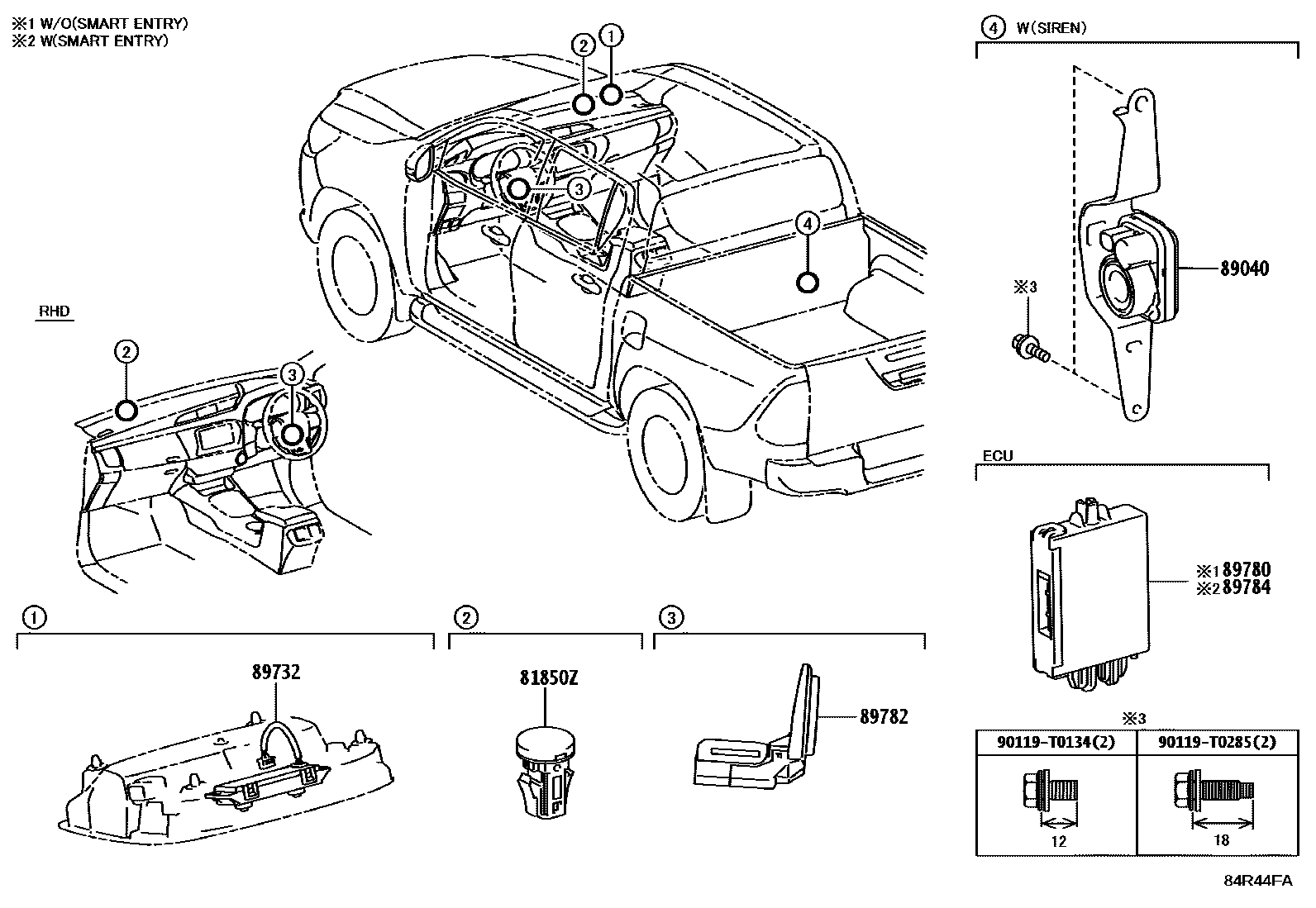

Toyota HILUX (SCB/XTR) — ANTI-THEFT DEVICE

81850ZLAMP ASSY, THEFT WARNING INDICATOR

main81850-0K020i202408

main81850-0K040i202411

89040SIREN ASSY, THEFT WARNING

main89040-0K020i202411

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITHOUT

89732SENSOR, THEFT WARNING RADAR

main89732-71020i202411

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN & *IS); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN & *IS)&FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-0K072i202408

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

main89780-0K131i202408

89782COIL, TRANSPONDER KEY

main89782-0K110i202408

WIRELESS DOOR LOCK-WITHOUT

main89782-0K120i202411

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITHOUT; EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITHOUT

main89782-0K130i202408

WIRELESS DOOR LOCK-WITH

main89782-0K150i202411

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN); WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

89784COMPUTER, IMMOBILIZER CODE

main89784-0K010i202408

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

main89784-F4020i202411

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

90119T0134

main90119-T0134

90119T0285

main90119-T0285

8 parts on this diagram · 1 diagram in section

ANTI-THEFT DEVICE for Toyota HILUX (SCB/XTR)

This section contains 8 genuine Toyota parts for the ANTI-THEFT DEVICE system of the Toyota HILUX (SCB/XTR). Key components include: LAMP ASSY, THEFT WARNING INDICATOR, SIREN ASSY, THEFT WARNING, SENSOR, THEFT WARNING RADAR, COMPUTER ASSY, TRANSPONDER KEY, COIL, TRANSPONDER KEY.
