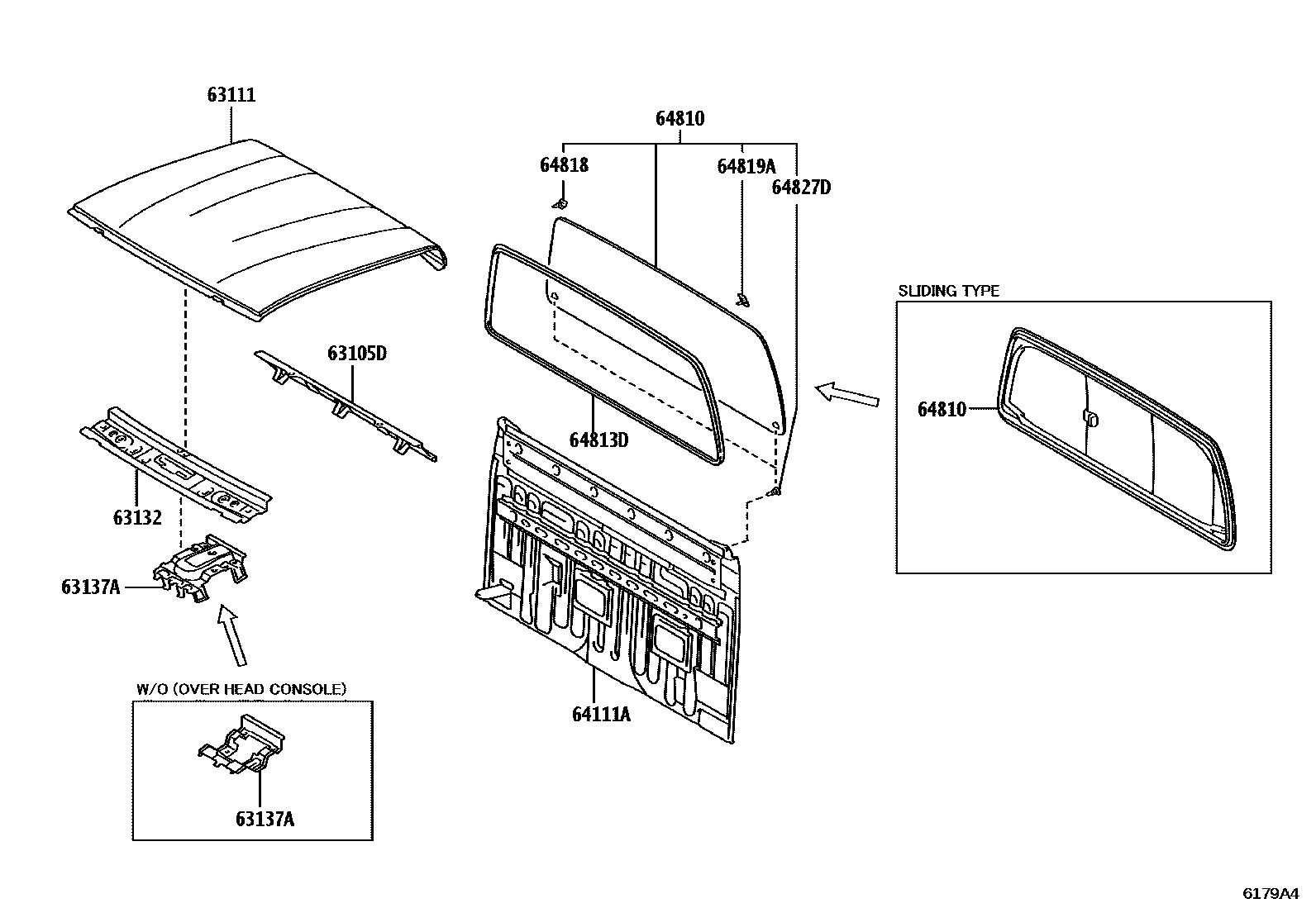

Toyota HILUX (SCB/XTR) — ROOF PANEL & BACK PANEL
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
main63105-KK040iGUN126..SCB..6FC;GUN126..SCB..6F..(BZAG,GCC,LA,SA,TH);GUN11#,120,121,122,125,13#,LAN125,TGN11#,12#,136..SCB..(BZAG,GCC,GEN,IDN,KEN,LA,PH,SA,TH)202408
63111PANEL, ROOF
main63111-KK020iGUN126..SCB..6FC;GUN126..SCB..6F..(BZAG,GCC,LA,SA,TH);GUN11#,120,121,122,125,13#,LAN125,TGN11#,12#,136..SCB..(BZAG,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH)202408
DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITH(AU-DCM)
DATA COMMUNICATION MODULE-WITH(AU-DCM)
63132PANEL, WINDSHIELD HEADER, INNER
63137ABRACKET, DOME LAMP, NO.1
main63137-KK010iGUN122..GEN;GUN122..SA..IV3;GUN122..LHD..SA;GUN135..L..(LA,SA);GUN125..LHD..L..(GEN,LA)..CBU;GUN125..RHD..SCB..L..(GEN,SA);GUN126,TGN121,126..L..(BZAG,GEN,LA,SA); TGN136;GUN125..H,S;GUN135..XTR;GUN135..SCB..S;GUN125..LA..IV3;GUN125..LHD..L..SA;GUN125..XTR..L..CBU;GUN122..RHD..SA..CBU;GUN122,TGN121..ARL,GCC,TH;GUN125,135..L..(ARL,BZAG,GCC,IDN,KEN,MA);GUN11#,120,121,126,136,LAN125,TGN11#,120,126..ARL,GCC,SA,TH202408
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
main63137-KK020iGUN122..GEN;GUN122..LHD..SA;GUN135..L..(LA,SA);GUN122..(PH,SA)..IV3;GUN125..LHD..L..(GEN,LA)..CBU;GUN125..RHD..SCB..L..(GEN,SA);GUN126,TGN121,126..L..(BZAG,GEN,LA,SA)202408
64111APANEL, BACK
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)
REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)
64810WINDOW ASSY, BACK
main64801-0K112iGUN125,135..RHD..L..(GEN,TH); GUN125..XTR..GEN;GUN126,135..ARL..IV3;GUN125,TGN121..ARL,TH;GUN126,135..(H,S)..TH;GUN120,122,136..XTR..THP202408
REAR WINDOW DEFOGGER-WITH
REAR WINDOW DEFOGGER-WITH
main64801-0K151iGUN125..LHD..L..SA;GUN125..XTR..S..SA;GUN122,135,LAN125,TGN120..L..(KEN,SA); GUN125..LHD..SCB..S; GUN135..6F..S..SA;GUN125,TGN136..RHD..S..SA; TGN121..SA202411
BACK GLASS-FIX TYPE(GREEN); NIGERIA SPEC&REAR WINDOW DEFOGGER-WITHOUT; REAR WINDOW DEFOGGER-WITHOUT
main64810-0K050iGUN122,135,TGN120..RHD..L..SA; GUN135..S..SA;GUN125,126,136,TGN136..RHD..(KEN,SA)202411
BACK GLASS-SLIDING TYPE(GREEN)
REAR WINDOW DEFOGGER-WITH
BACK GLASS-SLIDING TYPE(PRIVACY); BACK GLASS-SLIDING TYPE(PRIVACY)&REAR WINDOW DEFOGGER-WITHOUT
64813DDAM, BACK WINDOW GLASS ADHESIVE
main56117-KK041iGUN135..L..SA;GUN125..LHD..SA;GUN135..AGTP,KENP,THP;GUN125,126,TGN136..ARL,BZAG,GEN,IDN,LA,MA,TH;GUN112,120,121,122,136,LAN125,TGN12#..(L,S)..(ARL,GEN,LA,PH,SA,TH)202408
64818SPACER, BACK WINDOW GLASS
main64818-0K100iGUN125..LHD..SA;GUN122,135,LAN125,TGN120,121..L..(KEN,SA); GUN135..6F..S..SA;GUN125,TGN136..RHD..S..SA202411
BACK GLASS-FIX TYPE(GREEN)
64819ASPACER, BACK WINDOW GLASS, NO.2
main64819-0K120iGUN125..LHD..SA;GUN122,135,LAN125,TGN120,121..L..(KEN,SA); GUN135..6F..S..SA;GUN125,TGN136..RHD..S..SA202411
BACK GLASS-FIX TYPE(GREEN)
64827DCLIP, BACK WINDOW GLASS
main64827-0K120×2iGUN125..LHD..SA;GUN122,135,LAN125,TGN120,121..L..(KEN,SA); GUN135..6F..S..SA;GUN125,TGN136..RHD..S..SA202411
BACK GLASS-FIX TYPE(GREEN)
10 parts on this diagram · 2 diagrams in section
ROOF PANEL & BACK PANEL for Toyota HILUX (SCB/XTR)
This section contains 14 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota HILUX (SCB/XTR). Key components include: FRAME SUB-ASSY, BACK WINDOW, UPPER, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, BRACKET, DOME LAMP, NO.1, REINFORCEMENT, ROOF PANEL, NO.1.
