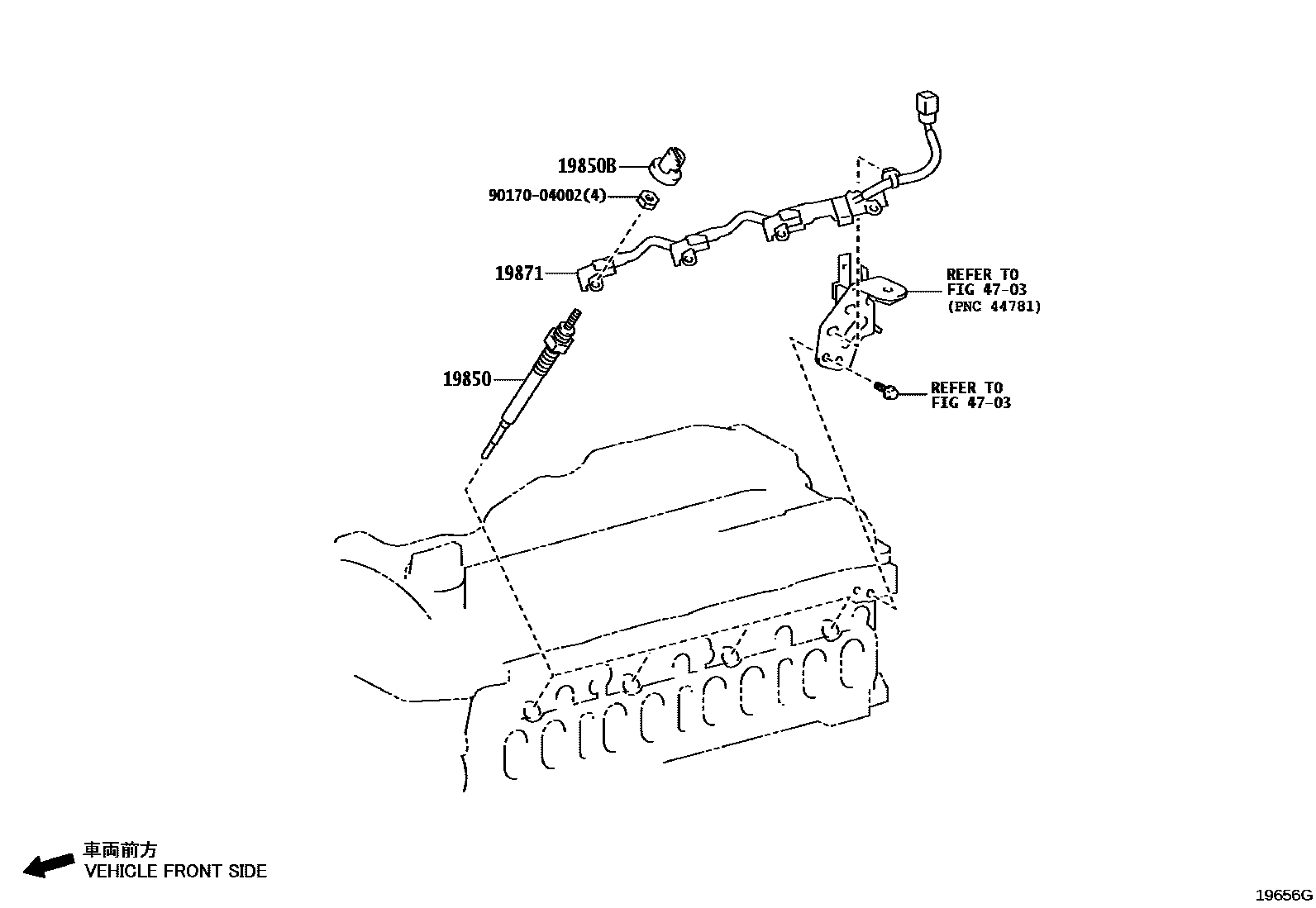

Toyota HILUX (SCB/XTR) — IGNITION COIL & SPARK PLUG / GLOW PLUG

19850PLUG ASSY, GLOW

main19850-11040×4i202408

*BV-GV=12V-7V

main19850-54140×4i202411

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-T0001×4i202408

(L)

main90189-04024×4i202408

(J); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)

19871CONNECTOR, GLOW PLUG NO.1

main19871-0E010i202411

main19871-0E020i202408

IND SOURCED PARTS; OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),IND SOURCEDPARTS

main19871-54020i202411

main19871-11010i202408

GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9017004002

main90170-04002

5 parts on this diagram · 3 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota HILUX (SCB/XTR)

This section contains 16 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota HILUX (SCB/XTR). Key components include: PLUG, SPARK, COIL ASSY, IGNITION, PLUG ASSY, GLOW, GROMMET, SCREW(FOR GLOW PLUG), NUT, CONNECTING(FOR GLOW PLUG).
