Toyota HILUX (SCB/XTR) — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

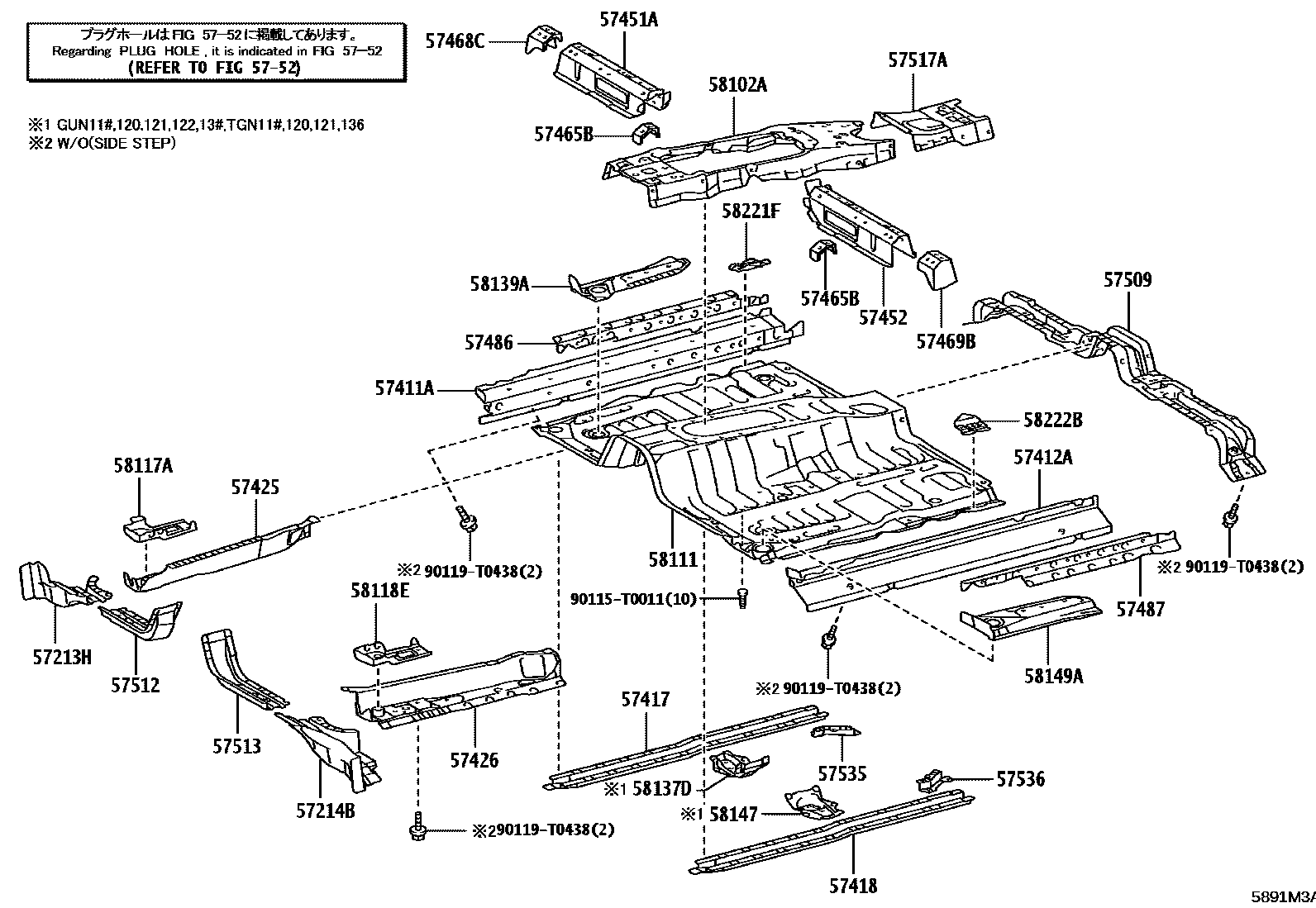

Parts diagram
57213HBRACKET, BODY MOUNTING, NO.2 RH
main57213-KK010i202408
57214BBRACKET, BODY MOUNTING, NO.2 LH
main57214-KK010i202408
57411AMEMBER, FLOOR SIDE, INNER RH
main57411-KK020i202408
57412AMEMBER, FLOOR SIDE, INNER LH
main57412-KK020i202408
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
main57417-0K010i202408
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
main57418-0K011i202408
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
main57425-KK010i202408-202501
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
main57426-KK010i202408-202501
57451AMEMBER, FRONT FLOOR CROSS, RH
main57451-KK010i202408
57452MEMBER, FRONT FLOOR CROSS, LH
main57452-KK010i202408
57465BBRACKET, FRONT SEAT, INNER
main57465-KK010×2i202408
57468CBRACKET, FRONT SEAT, OUTSIDE, RH
main57468-KK010i202408
57469BBRACKET, FRONT SEAT, OUTSIDE LH
main57469-KK010i202408
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
main57486-KK010i202408
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
main57487-KK010i202408
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
main57509-KK010i202408
main57509-KK020i202408
57512REINFORCEMENT, FRONT FLOOR, RH
main57512-0K030i202408
57513REINFORCEMENT, FRONT FLOOR, LH
main57513-0K010i202408
57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR
main57517-KK010i202408
main57517-KK020i202408
main57517-KK030i202408
main57517-KK040i202408
5752HOLE PLUG
→ Go to FIG 57-52
57535BRACE, FRONT FLOOR, RH
main57535-KK010i202408
57536BRACE, FRONT FLOOR, LH
main57536-KK010i202408
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
main58102-KK010i202408
main58102-KK020i202408
main58102-KK030i202408
main58102-KK040i202408
58111PAN, FRONT FLOOR
main58111-KK010i202409
main58111-KK090i202408
main58111-KK110i202408
main58111-KK120i202408
main58111-KK130supersedes 58111-KK170i202408
main58111-KK150i202411
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
main58117-KK010i202408
58118EBRACKET, JACK SET
main58118-KK010i202408
58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH
main58137-KK010i202408
58139APLATE, FRONT FLOOR SIDE, REAR RH
main58139-KK010i202408
58147BRACKET, FRONT FLOOR HOUSING, FRONT LH
main58147-KK010i202408
58149APLATE, FRONT FLOOR SIDE, REAR LH
main58149-KK010i202408
58221FREINFORCEMENT, FLOOR PANEL, FRONT RH
main58221-KK010i202408
main58221-KK020i202408
58222BREINFORCEMENT, FLOOR PANEL, FRONT LH
main58222-KK010i202408
main58222-KK020i202408
90115T0011
main90115-T0011
90119T0438
main90119-T0438

34 parts on this diagram · 5 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX (SCB/XTR)

This section contains 54 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX (SCB/XTR). Key components include: STAY SUB-ASSY, SIDE STEP, NO.1 RH, STAY SUB-ASSY, SIDE STEP, NO.1 LH, PLATE, STEP, RH, PLATE, STEP, LH, COVER, STEP PLATE, RH.
