Toyota HILUX (SCB/XTR) — FRONT DOOR LOCK & HANDLE

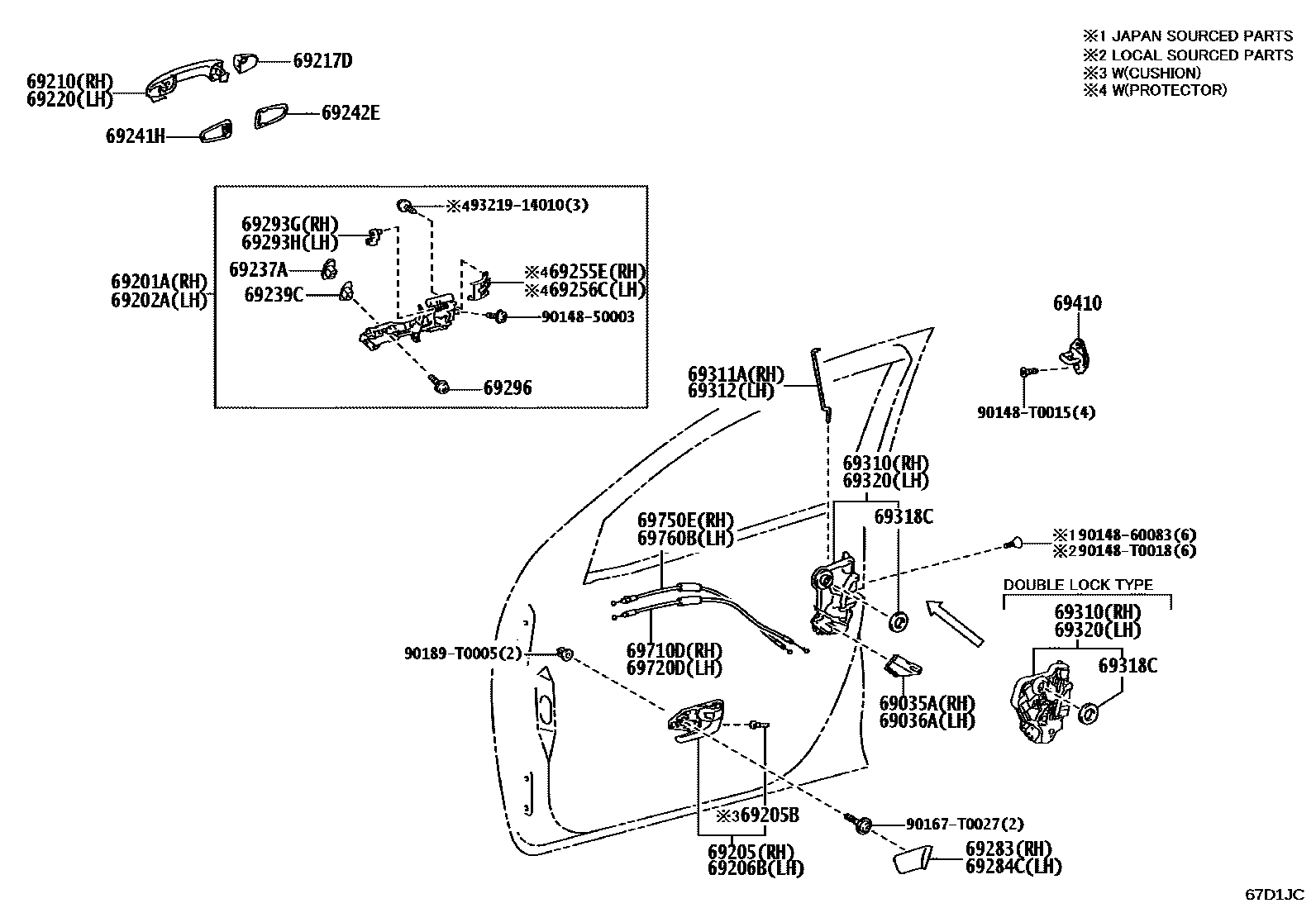

Parts diagram
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-02010i202411
main69035-02040i202408
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-02010i202411
main69036-02040i202408
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0K061i202408
WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY
main69201-0K070i202411
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69201-0K080i202411
WIRELESS DOOR LOCK-WITH
main69201-0K161i202408
main69201-0K171i202411
MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69201-0K181i202411
main69201-0K191i202409
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0K061i202408
WIRELESS DOOR LOCK-WITH
main69202-0K070i202411
MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69202-0K090i202409
main69202-0K161i202408
WIRELESS DOOR LOCK-WITHOUT
main69202-0K171i202411
WIRELESS DOOR LOCK-WITHOUT; WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
main69202-0K181i202411
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-0K100-C1i202408
BLACK,TRIM2#; BLACK,TRIM2#,3#
main69205-0K110-C0i202408
BLACK,TRIM2#; DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#; DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
main69205-0K120-C1i202411
BLACK,TRIM2#
main69205-0K130-C0i202411
BLACK,TRIM2#
main69205-0K140-C1i202411
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04027×2i202411
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-0K090-C1i202408
BLACK,TRIM2#; BLACK,TRIM2#,3#
main69206-0K100-C0i202408
BLACK,TRIM2#; DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#; DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
main69206-0K110-C1i202411
BLACK,TRIM2#
main69206-0K120-C0i202411
BLACK,TRIM2#
main69206-0K130-C1i202411
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-0K060i202408
PLATED; PLATED,MLM ADVENTURE PACKAGE; PLATED,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY; PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69210-0K200i202408
PLATED; PLATED,DOOR OUTSIDE HANDLE-*CR
main69210-0K210i202408
NO PAINT REQ.; NO PAINT REQ.,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K220i202411
PLATED; PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; PLATED,MLM ADVENTURE PACKAGE; PLATED,MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); PLATED,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDERDRIVER SIDE ONLY
main69210-0K250i202411
NO PAINT REQ.
main69210-0K260i202411
NO PAINT REQ.
main69210-0K903i202411
PAINT REQ.
main69210-0K924i202408
PAINT REQ.; PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY; PAINT REQ.,MLM Z-PLUS PACKAGE
main69210-0D340-A0i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SUPER WHITE 2,040; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SUPER WHITE 2,040
main69210-0D340-A3i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PLATINUM WHITE PEARL MC.,089; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PLATINUM WHITE PEARL MC.,089
main69210-0D340-B4i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,GRAY ME.,1G3; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,GRAY ME.,1G3
main69210-0D340-C2i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.,218; MLM Z-PLUS PACKAGE,ATTITUDE BLACK MC.; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.,218
main69210-0D340-D3i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,EMOTIONAL RED 2,3U5; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,EMOTIONAL RED 2,3U5
main69210-0D340-J5i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8
main69210-0D340-P1i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1L0; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1L0
main69210-0K902i202411
PAINT REQ.,MLM Z-PLUS PACKAGE&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDEONLY
main69210-YP020i202408
NO PAINT REQ.,MLM ADVENTURE PACKAGE; NO PAINT REQ.,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
main69210-YP040i202411
NO PAINT REQ.,MLM ADVENTURE PACKAGE
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-0K370×2i202408
*CR,DOOR OUTSIDE HANDLE-*CR,DRIVER & PASSENGER; *CR,DRIVER & PASSENGER; *CR,DRIVER SIDE; *CR,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE; *CR,MLM ADVENTURE PACKAGE,DRIVER SIDE; *CR,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-0K380supersedes 69217-0K460i202411
*CR,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE; *CR,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE; *CR,PASSENGER SIDE; *CR,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
main69217-0K430i202408
BLACK MATERIAL,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE; BLACK MATERIAL,DRIVER & PASSENGER; BLACK MATERIAL,DRIVER SIDE; BLACK MATERIAL,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVERSIDE ONLY,DRIVER SIDE; BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,DRIVER SIDE; BLACK MATERIAL,WIRELESS DOOR LOCK-WITHOUT,DRIVER & PASSENGER
main69217-0K440i202408
BLACK MATERIAL,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE; BLACK MATERIAL,PASSENGER SIDE; BLACK MATERIAL,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVERSIDE ONLY,PASSENGER SIDE; BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
main69217-0K450i202411
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),DRIVER SIDE; BLACK MATERIAL,DRIVER & PASSENGER; BLACK MATERIAL,DRIVER SIDE; BLACK MATERIAL,WIRELESS DOOR LOCK-WITH(PANIC BUTTON),DRIVER SIDE; BLACK MATERIAL,WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB,DRIVER & PASSENGER; BLACK MATERIAL,WIRELESS DOOR LOCK-WITHOUT,DRIVER & PASSENGER
main69217-0K460i202411
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PASSENGER; BLACK MATERIAL,PASSENGER; BLACK MATERIAL,PASSENGER SIDE; BLACK MATERIAL,WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PASSENGER SIDE
main69217-0K470×2i202411
BLACK MATERIAL,DRIVER & PASSENGER; BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-0K913i202411
LESS COLOR,DRIVER SIDE
main69217-0K914i202411
LESS COLOR,PASSENGER SIDE
main69217-0K919i202408
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE; LESS COLOR,DRIVER SIDE; LESS COLOR,MLM Z-PLUS PACKAGE,DRIVER SIDE; LESS COLOR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDEHANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
main69217-0K920i202408
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE; LESS COLOR,MLM Z-PLUS PACKAGE,PASSENGER SIDE; LESS COLOR,PASSENGER SIDE; LESS COLOR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDEHANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
main69217-0K480i202411
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
main69217-0K911i202411
LESS COLOR,MLM Z-PLUS PACKAGE&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDEONLY,DRIVER SIDE
main69217-0K912i202411
LESS COLOR,MLM Z-PLUS PACKAGE&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDEONLY,PASSENGER SIDE
main69217-YP010i202408
MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,DRIVERSIDE; MLM ADVENTURE PACKAGE,DRIVER SIDE
main69217-YP020i202411
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),PASSENGER SIDE
main69217-YP030i202411
MLM ADVENTURE PACKAGE,DRIVER SIDE
main69217-YP040i202411
MLM ADVENTURE PACKAGE,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-0K060i202408
PLATED; PLATED,MLM ADVENTURE PACKAGE; PLATED,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY; PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69210-0K200i202408
PLATED; PLATED,DOOR OUTSIDE HANDLE-*CR
main69210-0K210i202408
NO PAINT REQ.; NO PAINT REQ.,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY
main69210-0K220i202411
PLATED; PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY; PLATED,MLM ADVENTURE PACKAGE; PLATED,MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); PLATED,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDERDRIVER SIDE ONLY
main69210-0K250i202411
NO PAINT REQ.
main69210-0K260i202411
NO PAINT REQ.
main69210-0K903i202411
PAINT REQ.
main69210-0K924i202408
PAINT REQ.; PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY; PAINT REQ.,MLM Z-PLUS PACKAGE
main69210-0D340-A0i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SUPER WHITE 2,040; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SUPER WHITE 2,040
main69210-0D340-A3i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PLATINUM WHITE PEARL MC.,089; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PLATINUM WHITE PEARL MC.,089
main69210-0D340-B4i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,GRAY ME.,1G3; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,GRAY ME.,1G3
main69210-0D340-C2i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.,218; MLM Z-PLUS PACKAGE,ATTITUDE BLACK MC.; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,ATTITUDE BLACK MC.,218
main69210-0D340-D3i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,EMOTIONAL RED 2,3U5; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,EMOTIONAL RED 2,3U5
main69210-0D340-J5i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DK. BLUE MC.,8X8
main69210-0D340-P1i202408
DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1L0; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,SILVER ME.,1L0
main69210-0K902i202411
PAINT REQ.,MLM Z-PLUS PACKAGE&DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDEONLY
main69210-YP020i202408
NO PAINT REQ.,MLM ADVENTURE PACKAGE; NO PAINT REQ.,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
main69210-YP040i202411
NO PAINT REQ.,MLM ADVENTURE PACKAGE
69237ANUT, FRONT DOOR HANDLE
main69237-0E010×2i202411
MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main69237-0K040×2i202408
main69237-0K060×2i202409
main69237-0K070×2i202411
69239CBUSH, FRONT DOOR HANDLE
main69239-0K040×2i202409
main69239-0K070×2i202411
main69239-0K080×2i202408
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-0K041×2i202408
main69241-0K060×2i202411
main69241-0K100×2i202409
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-0K030×2i202408
main69242-0K050×2i202411
main69242-0K090×2i202409
69255EPROTECTOR, DOOR OUTSIDE HANDLE, RH
main69255-0K051i202408
main69255-0K081i202411
MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
main69256-0K051i202408
WIRELESS DOOR LOCK-WITHOUT
main69256-0K081i202411
WIRELESS DOOR LOCK-WITHOUT; WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-0K050-C0i202408
BLACK,TRIM2#; BLACK,TRIM2#,3#
main69283-0K060-C0i202411
BLACK,TRIM2#
main69283-0K070-C0i202411
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-0K030-C0i202408
BLACK,TRIM2#; BLACK,TRIM2#,3#
main69284-0K040-C0i202411
BLACK,TRIM2#
main69284-0K050-C0i202411
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-0K070i202409
main69293-12030i202408
main69293-33010i202411
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-0K080i202409
main69293-12040i202408
main69293-33020i202411
69296SCREW, DOOR INSIDE HANDLE
main69296-0K040×2i202409
main69296-0M010×2i202408
main69296-30010×2i202411
MLM ADVENTURE PACKAGE; MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
69310LOCK ASSY, FRONT DOOR, RH
main69030-02470i202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
main69030-02480i202408
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
main69030-02530i202411
WIRELESS DOOR LOCK-WITH
main69030-02600i202408
WIRELESS DOOR LOCK-WITH
main69030-0K200i202411
WIRELESS DOOR LOCK-WITH
main69030-53080i202409
main69310-02160i202408
WIRELESS DOOR LOCK-WITHOUT
main69310-0K100i202408
main69310-0K110i202411
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-0K170i202408
main69311-0K180i202411
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-0K170i202408
main69312-0K180i202411
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2i202408
69320LOCK ASSY, FRONT DOOR, LH
main69040-02450i202408
WIRELESS DOOR LOCK-WITH
main69040-02470i202408
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
main69040-02510i202411
WIRELESS DOOR LOCK-WITH
main69040-02550i202408
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69040-53090i202409
main69320-02160i202408
WIRELESS DOOR LOCK-WITHOUT
main69320-0K090i202408
main69320-0K110i202411
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-02090×2i202411
main69410-0D060×2i202409
main69410-0K070×2i202408
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
main69710-0K140i202408
main69710-0K150i202411
main69710-0K200i202409
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
main69710-0K140i202408
main69710-0K150i202411
main69710-0K200i202409
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
main69750-0K140i202408
main69750-0K150i202411
main69750-0K200i202409
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
main69750-0K140i202408
main69750-0K150i202411
main69750-0K200i202409
9014850003
main90148-50003
9014860083
main90148-60083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
9321914010
main93219-14010

38 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE for Toyota HILUX (SCB/XTR)

This section contains 38 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota HILUX (SCB/XTR). Key components include: COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
