Toyota HILUX (JPP) — PARTIAL ENGINE ASSEMBLY

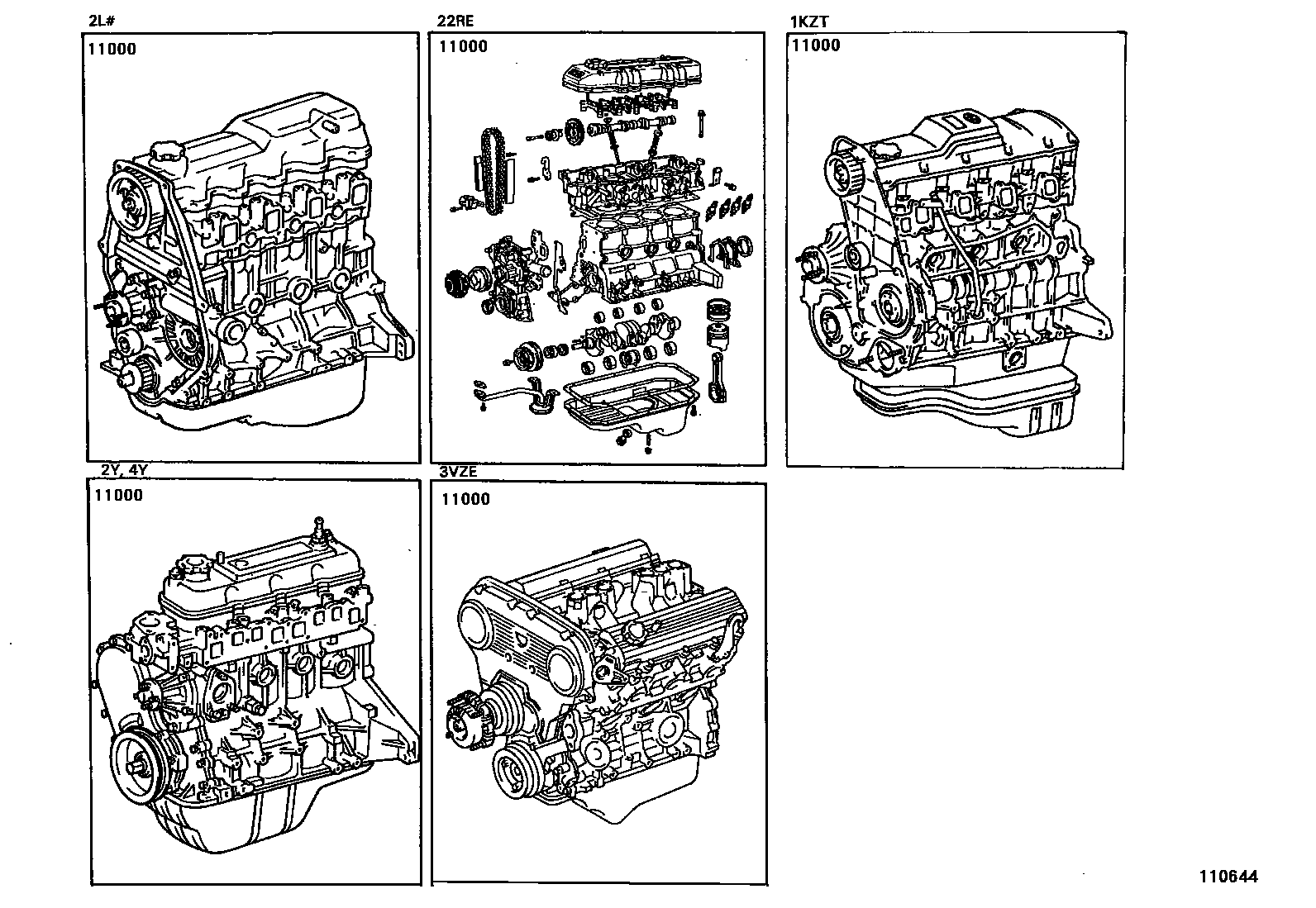

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-35620i198808

main19000-54740i198808-199208

main19000-54741i199208

main19000-54850i198808-199208

main19000-54851i199208

main19000-5B080i199001-199511

main19000-65050i198908-199001

main19000-65051i199001-199105

main19000-65052i199105-199108

main19000-65080i199108-199308

main19000-65081i199308-199511

main19000-67070i199308-199505

main19000-67071i199505-199511

main19000-72290i198808-199303

main19000-72291i199303-199408

main19000-73510i198808-199408

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota HILUX (JPP)

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota HILUX (JPP). Key components include: ENGINE ASSY, PARTIAL.
